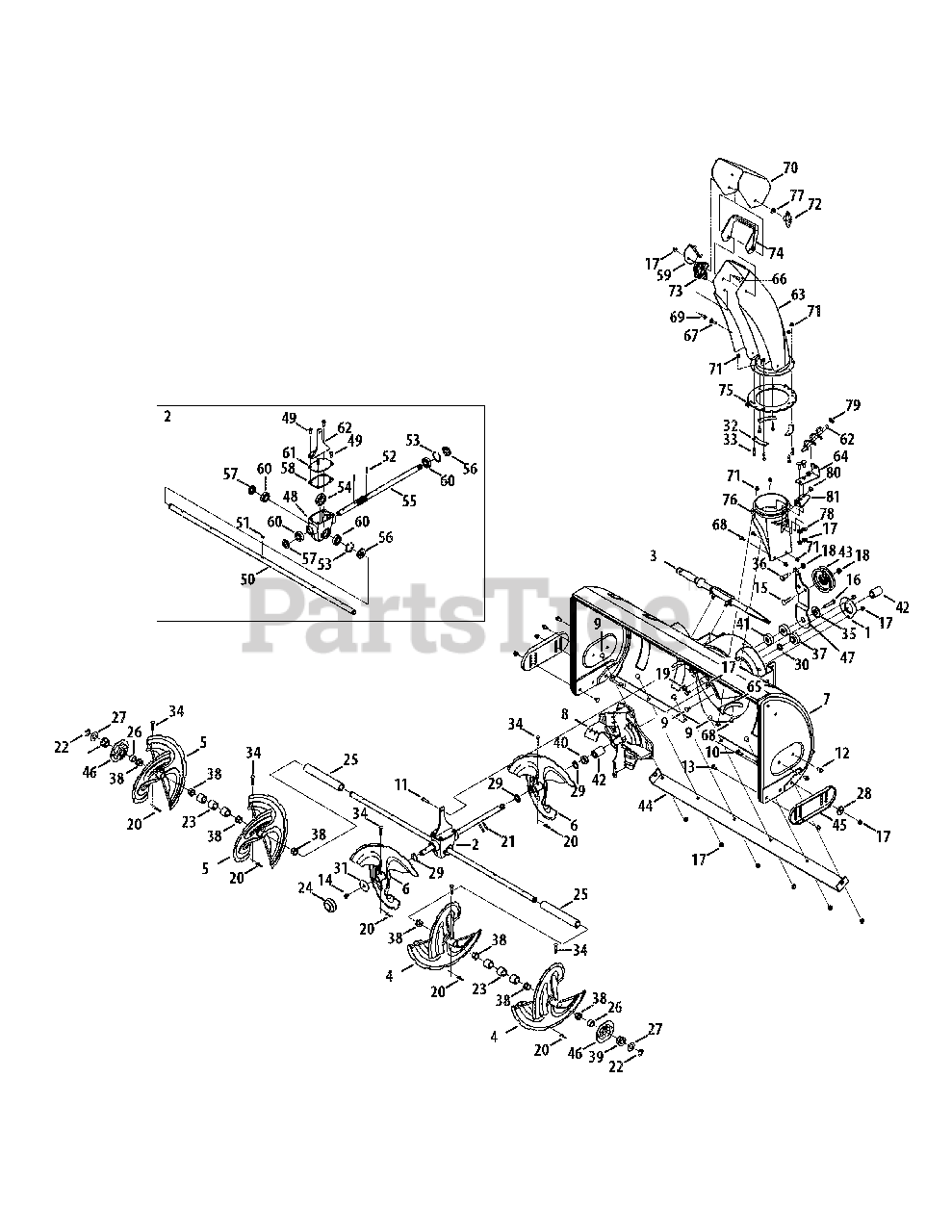

19A40024100 (19A40024OEM) - Troy-Bilt 42" 3x Snow Thrower Attachment (2015) General Assembly Parts Diagram

42" 3x Snow Thrower Attachment

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 05931A

Housing, Bearing, 1.85 ID

$10.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 918-07032

Gearbox Assembly, Auger, 42"

$714.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

3

Troy-Bilt 931-2643

Cleanout Tool

$19.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 684-04163A-0637

Spiral Assembly, LH

$116.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-04164A-0637

Sipral Assembly, RH

$116.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 684-05015B-0637

Accelerator Assembly
(Superseded to 684-05015C-0637)

$74.99

$

In Stock, Qty 11

0

7

Troy-Bilt 684-05067-0637

Housing, Auger, 42" w/ Baffl e
(Superseded to 753-10384)

$1166.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 684-05075-0637

Impeller Assembly, 12" Dia

$132.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-0260A

Bolt, Carriage, 5/16-18, .62, Gr5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 12

0

11

Troy-Bilt 710-0376

Hex Screw, 5/16-18, 1.00, Gr5, Std

$3.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0607

Screw, Self-tapping, 5/16-18, .500

$6.99

$

In Stock, Qty 11

0

15

Troy-Bilt 710-0560

Screw, Carriage, 3/8-16, 1.75, Gr5

$6.99

$

In Stock, Qty 12

0

16

Troy-Bilt 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 7

0

17

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04217

Nut, Flange Lock, 3/8-16, Grf

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 714-04040

Pin, Cotter, bow-Tie

$1.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 915-0114

Spring, Pin, .250 Dia x 1.50 Spiral
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

22

Troy-Bilt 916-0231

Ring, E Type, .750
(Superseded to 716-0231)

$

$

Not available

23

Troy-Bilt 731-04870

Spacer, 1.25Od x .75Id x 1.00 Lg

$4.99

$

In Stock, Qty 18

0

24

Troy-Bilt 731-08637A

Cap, Shaft

$5.49

$

In Stock, Qty 19

0

25

Troy-Bilt 731-09558

Spacer, 1.25 OD x .75 ID x 7.805 Lg

$10.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-10404

Sleeve, .758 X 1.00 x .555

$4.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 736-0188

Washer, Flat, .76 x 1.49 x .06, Ht

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 936-0231

Washer, Flat, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

29

Troy-Bilt 936-0287

Washer, Flat, .793 x 1.24 x .06, Ht
(Superseded to 736-0287)

$

$

Not available

30

Troy-Bilt 736-04624

Washer, Flat, .75 x 1.13 x .10

$4.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 736-3040

Washer, Flat, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

32

Troy-Bilt 790-00659

Chute, Flange Keeper

$9.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-0597

Hex Screw, 1/4-20, 1.00,

$3.99

$

In Stock, Qty 14

0

34

Troy-Bilt 738-04124A

Pin, Shear, .25X1.50, Gr2

$1.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 738-04162C

Spacer, Shoulder, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-04518

Screw, Shoulder, .5 x .875 x 3/18-16

$5.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 941-0309

Bearing, Ball, .75 ID x 1.85 OD

$74.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 741-0493A

Bush, Flange, .800 ID x .910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 741-05041

Bearing, Hex Flange x .75 ID

$9.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 750-05218

Spacer, .766 ID x 1.25 OD x .415

$7.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 750-06184

Spacer, .385Id x 1.75 OD x .585

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 750-06261

Spacer, .76Id x 1.25 OD x 1.81 Lg

$12.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 756-0627D

Pulley, Idler, 3.50 Dia.

$30.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 784-0396C-0637

Bracket, Skid Plate, 42"

$64.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 784-5038B-0637

Slide Shoe

$27.99

$

In Stock, Qty 11

0

46

Troy-Bilt 790-00534-0637

Housing, Bearing, 1.1605" Hex

$13.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 790-00636-0637

Bracket, Idler, Pivot

$52.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 919-05029

Housing, Auger, 500

$84.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 710-0642

Screw, Self-tapping, 1/4-20, 0.75

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 711-06278

Axle, Auger, .75 OD x 41.62 Lg

$210.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 914-0161

Key, Hi-Pro 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 715-04034

Pin, Roll, .25 x 1.00

$6.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 716-05001

Ring, Retaining

$3.49

$

In Stock, only 1 left!

0

54

Troy-Bilt 917-04861

Gear, Worm, 20T

$43.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 917-05236

Shaft, Worm .75 OD

$237.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 721-04612

Seal, .75 x 40Mm x .25

$5.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 721-04613

Seal, .75 x 1.375 x .25

$4.49

$

In Stock, Qty 9

0

58

Troy-Bilt 921-04614A

Gskt, Cover, Gearbox

$5.49

$

In Stock, only 2 left!

0

59

Troy-Bilt 790-00565-0637

Bracket, Cable
(Superseded to 790-00565A-0637)

$14.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 941-05042

Bearing, Ball, .750X40x12

$11.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 783-08281

Cover, Gearbox, 500

$8.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 790-00603-0637

Bracket, Support, Gearbox
(Superseded to 990-00603)

$16.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 684-05072-0637

Chute Assembly, Steel 5.0"

$

$

Not available

64

Troy-Bilt 703-2735A-0637

Bracket, Chute, Crank

$19.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 705-5226-0637

Reinforcment, Chute, 5.0

$10.99

$

In Stock, Qty 7

0

66

Troy-Bilt 710-0262

Bolt, Carriage, 5/16-18, 1.50, Gr2

$3.99

$

In Stock, Qty 12

0

67

Troy-Bilt 710-0276

Screw, Carriage, Spl, 5/16-18, 1.00

$3.99

$

In Stock, Qty 12

0

68

Troy-Bilt 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 15

0

69

Troy-Bilt 710-0895

Screw, 1/4-15, 0.750, Hxindwsh

$6.49

$

In Stock, Qty 5

0

70

Troy-Bilt 790-00529-0637

Chute, Upper

$34.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 920-0284

Knob Assembly, Wing Nut 5/16-18
(Superseded to 720-0284)

$

$

Not available

73

Troy-Bilt 731-09535

Guide, Cable, Chute Tilt 1.05"

$8.49

$

In Stock, Qty 5

0

74

Troy-Bilt 731-09539A

Adapter, Chute, Upper

$25.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 731-10348

Ring, Chute, 5"

$13.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 731-1379D

Chute, Adapter 5" Dia

$65.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 936-0159

Washer, Flat, .349X.879X.063
(Superseded to 736-0159)

$

$

Not available

78

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

79

Troy-Bilt 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

80

Troy-Bilt 941-0475

Bearing, Flange, Snap .385 ID

$4.49

$

In Stock, Qty 20+

0

81

Troy-Bilt 784-5647-0637

Bracket, Chute Crank

$14.99

$

In Stock, Qty 7
