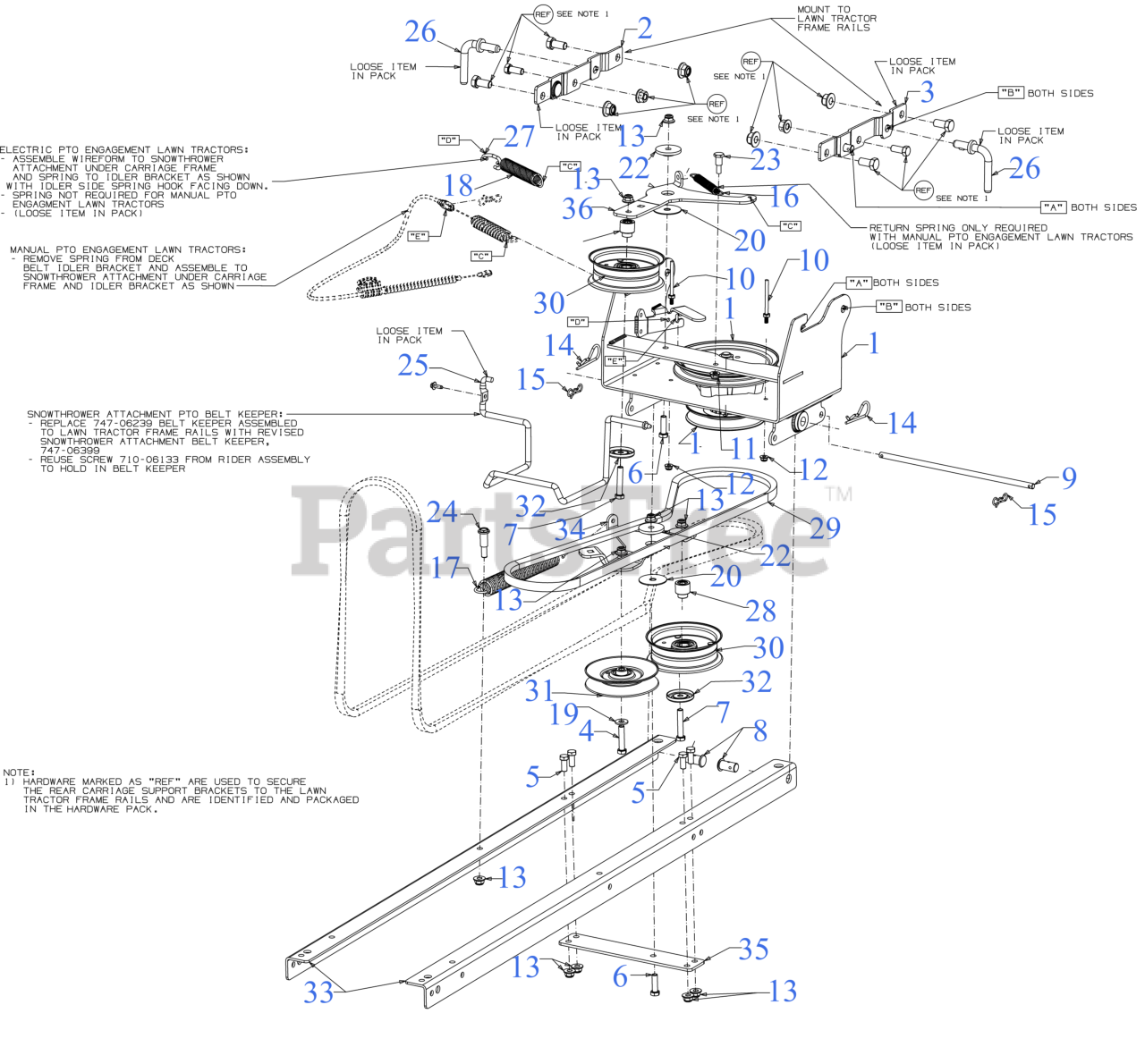

19A40024100 (19A40024OEM) - MTD 42" 3x Snow Thrower Attachment (2016-2022) Drive Parts Diagram

42" 3x Snow Thrower Attachment

Drive Parts Diagram

  • Title

1

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

2

MTD 684-05077

HANGER BRACKET (RH)
(Superseded to 684Z05077)

Variations

MTD 684-05077-0637

BRACKET-RH HANGER - POWDER BLACK (0637)

$73.99

$

In Stock, only 1 left!

0

$73.99

$

In Stock, only 1 left!

0

3

MTD 684-05078

HANGER BRACKET (LH)
(Superseded to 684Z05078)

Variations

MTD 684-05078-0637

BRACKET-LH HANGER - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

4

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-3001

SCREW 3/8-16 x .880 GR5

$7.49

$

In Stock, Qty 9

0

6

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0309A

CLEVIS PIN .62

$12.99

$

In Stock, Qty 7

0

9

MTD 711-06303

BELT KEEPER ROD

$24.99

$

Usually ships in 3-6 days

0

10

MTD 711-06425

BELT KEEPER .25X2.64

$8.49

$

Usually ships in 3-6 days

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 714-0117

INTERNAL COTTER PIN

$4.49

$

In Stock, Qty 16

0

15

MTD 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

16

MTD 932-0470A

EXTENSION SPRING

$9.99

$

In Stock, only 4 left!

0

17

MTD 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

18

MTD 759-05087

SPRING KIT-IDLER

$18.99

$

In Stock, only 2 left!

0

19

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0518

THRUST WASHER

$10.99

$

Usually ships in 3-6 days

0

22

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

23

MTD 738-0754

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

25

MTD 747-06399

BELT KEEPER ROD

$94.99

$

Usually ships in 3-6 days

0

26

MTD 747-06429

LOCK ROD

$35.99

$

In Stock, only 2 left!

0

27

MTD 747-06513

EXTENSION SPRING HOOK

$12.99

$

Usually ships in 3-6 days

0

28

MTD 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

29

MTD 954-05061A

V-BELT B SEC x 68.45

$78.99

$

Usually ships in 3-6 days

0

30

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

31

MTD 956-3045A

IDLER PULLEY 5.06 DIA

$57.99

$

In Stock, Qty 5

0

32

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

33

MTD 790-00617-0637

UNDER CARRIAGE RAIL(POWDER BLACK)

$106.99

$

Usually ships in 3-6 days

0

34

MTD 790-00629-0637

IDLER BRACKET PIVOT (POWDER BLACK)

$58.99

$

Usually ships in 3-6 days

0

35

MTD 790-00630-0637

IDLER SUPPORT BRACKET (POWDER BLACK)

$34.99

$

Usually ships in 3-6 days

0

36

MTD 790-00634A

IDLER PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00634A-0637

BRACKET-IDLER PIVOT - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0
