19A40024 (19A40024100) - Cub Cadet 42" 3X Snow Thrower Attachment (2016 - 2022) Lift Assembly Parts Diagram

42" 3X Snow Thrower Attachment

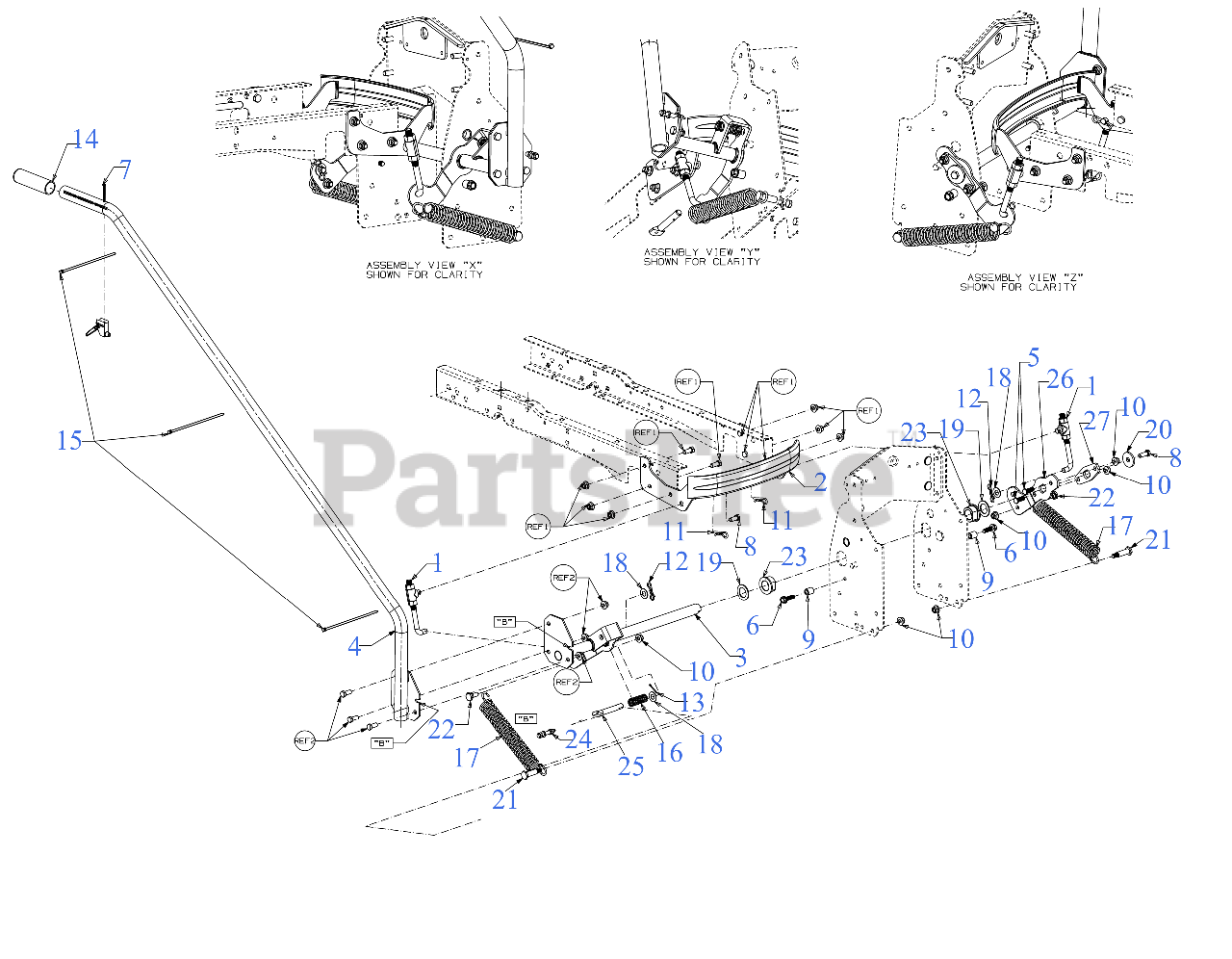

Lift Assembly Parts Diagram

  • Title
1

Cub Cadet 747-06384

LIFT ADJUSTMENT LINK

$20.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 711-06143A

LIFT ROD FERRULE

Note: (Not Shown)

$13.99

$

In Stock, Qty 20+

0

1

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 683-05156-0637

BUMPER ASSEMBLY (POWDER BLACK)

$100.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05084

LIFT SHAFT ASSEMBLY

$262.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05085-0637

LIFT HANDLE ASSEMBLY (POWDER BLACK)

$146.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04095

SCREW 3/8-16X1.0 GR5 SPEC

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1625

SCREW #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3118

SCREW 3/8-16X1.0 GR5

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0396

SPACER .385 x .623 x .750

$11.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0147

HITCH PIN CLIP

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-3004

COTTER PIN 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

14

Cub Cadet 720-04083

GRIP 1.188 x 4.562

$14.99

$

In Stock, only 2 left!

0

15

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-05216

COMPRESSION SPRING .772 OD x 1.95

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-05231

EXTENSION SPRING 1.45 OD x 6.00

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 936-0272

FLAT WASHER .510X.995
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0277

FLAT WASHER 1.031 X1.62 X.095

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

21

Cub Cadet 738-0213

SHOULDER SCREW .498 DIA x 1.450-THD

$7.99

$

In Stock, only 2 left!

0

22

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 941-0170

FLANGE BEARING

$19.99

$

In Stock, Qty 14

0

24

Cub Cadet 946-05201

LIFT CABLE

$73.99

$

In Stock, only 2 left!

0

25

Cub Cadet 747-06383A

LIFT LOCK ROD

$29.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 790-00649

LIFT BRACKET

$49.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 790-00657

LIFT LINK ADAPTER PLATE

$28.99

$

Usually ships in 3-6 days

0
