19A40024 (19A40024100) - Cub Cadet 42" 3X Snow Thrower Attachment (2015 & Before) att4 Lift Assembly Parts Diagram

42" 3X Snow Thrower Attachment

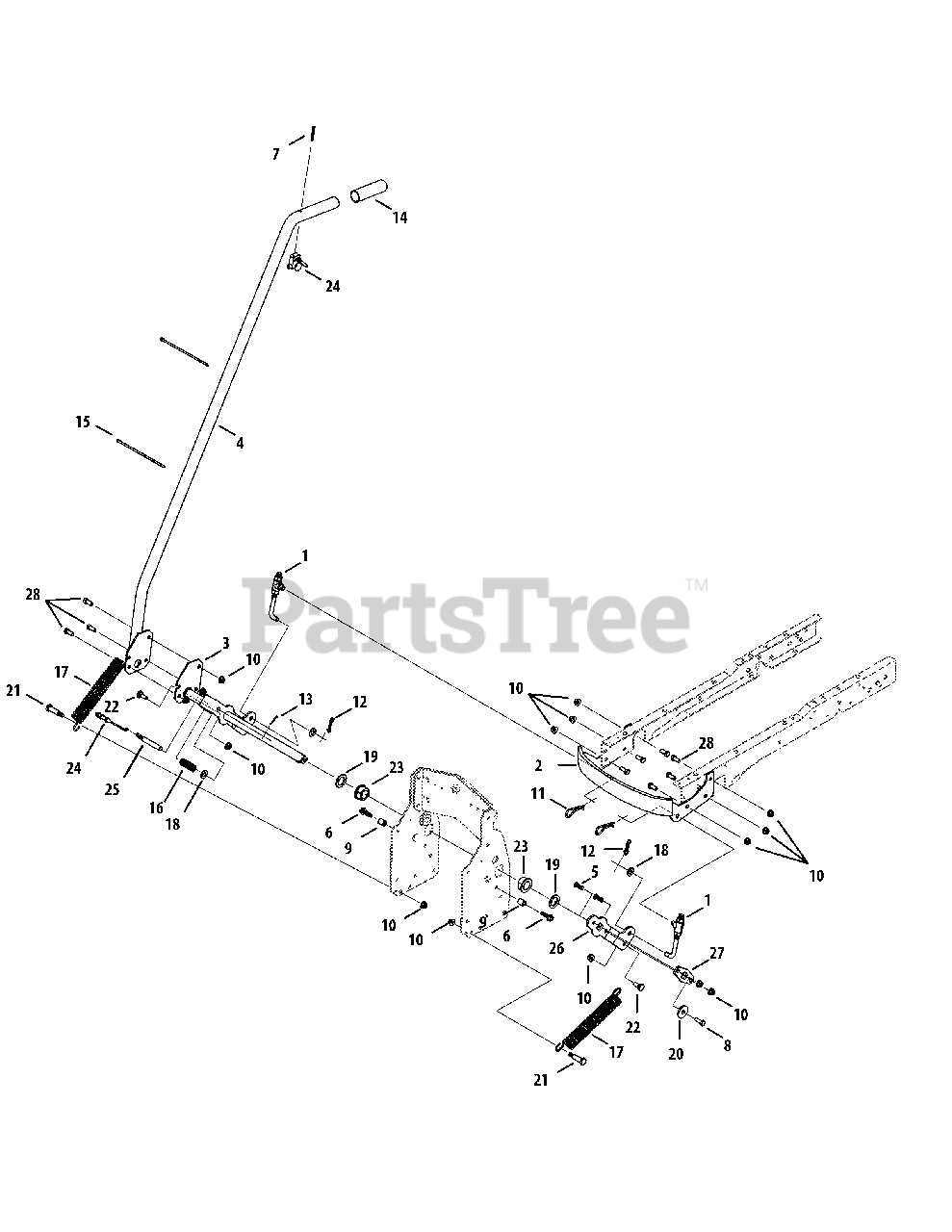

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 747-06384

Lift Link

$20.99

$

In Stock, only 1 left!

0

1

Cub Cadet 711-06143A

Ferrule, .510 x .496

$13.99

$

In Stock, only 2 left!

0

1

Cub Cadet 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 683-05156-0637

Bumper Assembly

$100.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05084

Shft Assembly, Lift

$262.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05085-0637

Handle Assembly, Lift

$146.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Screw, Self-tapping, 3/8-16, 1.25

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-1625

Screw, Oval, #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3118

Hex Screw, 3/8-16, 1.00, Gr5, Lock

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0396

Spacer, .385 x .623 x .750 Lg

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0117

Pin, Cotter, Int, .148 x 3.00

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 714-05005

Pin, Bow, 7/16"-1/2"

$4.99

$

In Stock, only 4 left!

0

13

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 8

0

14

Cub Cadet 720-04083

Grip, 1.188 ID x 4.562 Lg.

$14.99

$

In Stock, only 2 left!

0

15

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

16

Cub Cadet 732-05216

Spring, Comp, .772 OD x 1.95 Lg

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-05231

Spring Extension, 1.45 OD x 6.00

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0277

Washer, Flat, 1.031 X1.620 x.095

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 736-3082A

Washer, Flat, .45 x 1.5 x .172, Ht

$9.99

$

In Stock, Qty 16

0

21

Cub Cadet 738-0213

Screw, Shoulder, .498 Dia. x 1.445

$7.99

$

In Stock, only 2 left!

0

22

Cub Cadet 938-0380

Bolt, Shoulder, .500 x .270, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 941-0170

Bearing, Flange w/ Flats

$19.99

$

In Stock, only 4 left!

0

24

Cub Cadet 946-05201

Cable, Snowblower Lift

$73.99

$

In Stock, only 3 left!

0

25

Cub Cadet 747-06383

Rod, Lock, Lift w/ Trigger
(Superseded to 747-06383A)

$29.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 790-00649

Bracket, Lift

$49.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 790-00657

Adapter, Lift, Link

$28.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3010

Hex Screw, 3/8-16, .880

$6.99

$

In Stock, only 2 left!

0
