19A40024 (19A40024100) - Cub Cadet 42" 3X Snow Thrower Attachment (2015 & Before) att Frame Assembly Parts Diagram

42" 3X Snow Thrower Attachment

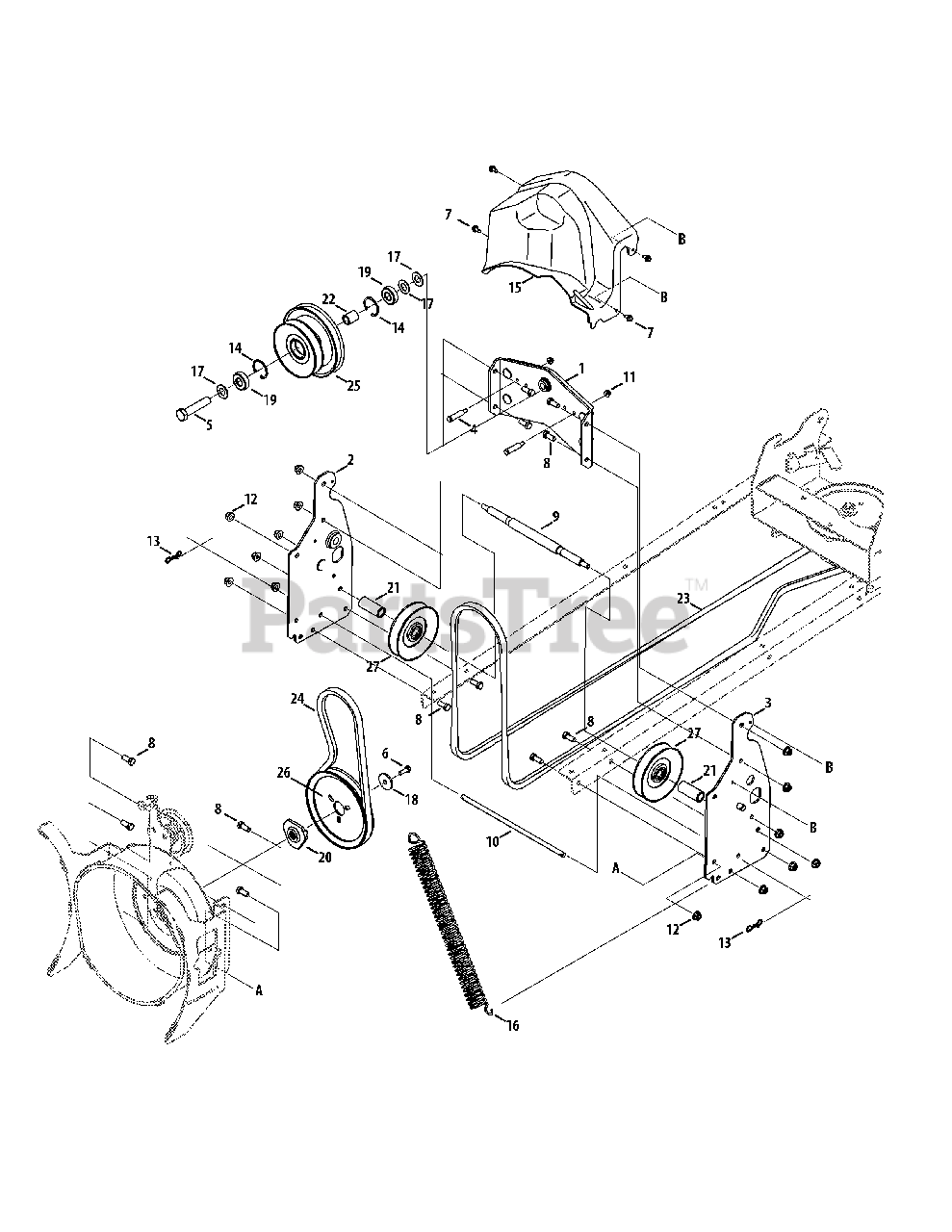

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 603-05172-0637

Bracket Assembly, Supt, Spndl

$188.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05080-0637

Bracket Assembly, Frm, RH

$144.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05081-0637

Bracket Assembly, Frm, LH

$129.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05023

Bolt, Shoulder, Hex Hd

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0923

Hex Screw, 5/8-18, 3.00, Gr5, Std

$9.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1245B

Hex Screw, 5/16-24, .875, Gr8, Lock

$8.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-1652

Screw, Self-tapping, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3001

Hex Screw, 3/8-16, .880, Gr5, Std

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 711-06298

Shaft, Supt, Mule Idler

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-06303

Shaft, .375Od x 12.3450 Lg

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-04043

Pin, Cotter, Bow-Tie 91

$4.99

$

In Stock, Qty 18

0

14

Cub Cadet 916-3020

Ring, Ret, Int

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 931-10414

Cover, Belt

$203.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-05205

Spring, Extension, 1.6 OD x 7.584 Lg

$31.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet 941-0524A

Bearing, Ball, .625 x 40 x 12

$23.99

$

In Stock, Qty 20+

0

20

Cub Cadet 748-04067A

Pulley, Adapter, .75 Dia w/ Pins

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-06246

Spacer, .65 ID x .96 OD x 2.31

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-06251

Spacer, .88 OD x .635 ID x 1.105

$9.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 954-05062

Belt, V-type, Bsec, 138.4

$135.99

$

In Stock, only 4 left!

0

24

Cub Cadet 954-05063

Belt, V-type, Bsec x 39.988

$52.99

$

In Stock, only 4 left!

0

25

Cub Cadet 756-05079

Pulley, Double, 6.663/5.205 Dia

$117.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-05082

Pulley, V-Type, 7.25 Dia

$63.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 756-05084

Pulley, Idler, 5.06 Dia

$54.99

$

Usually ships in 3-6 days

0
