19A40023 (19A40023100) - Cub Cadet 42" 3X Snow Thrower Attachment Lift Assembly Parts Diagram

42" 3X Snow Thrower Attachment

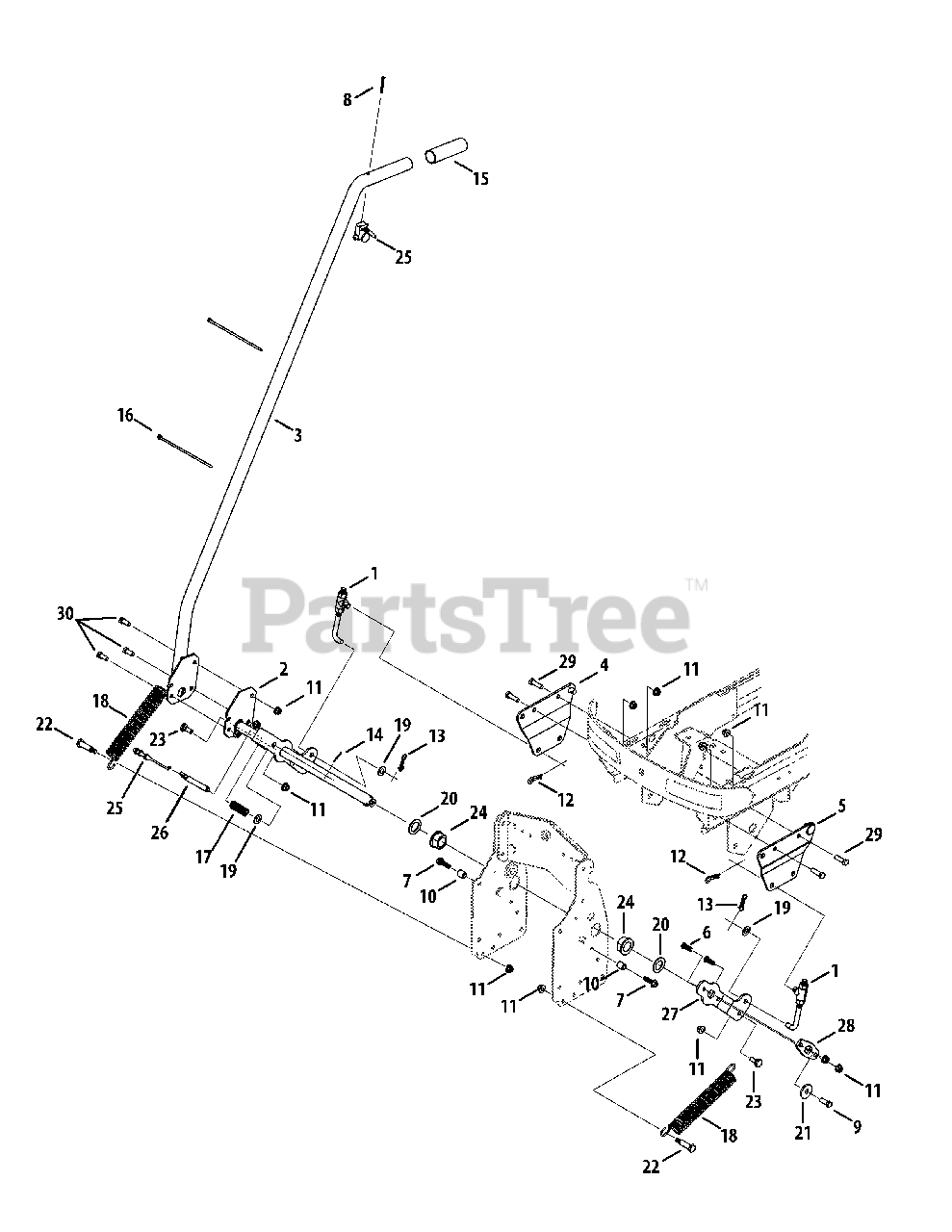

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 711-06143A

Lift Rod Ferrule

$13.99

$

In Stock, Qty 19

0

1

Cub Cadet 712-05046

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 747-06384

Lift Link Assembly

$20.99

$

In Stock, only 2 left!

0

2

Cub Cadet 684-05084

Lift Shaft Assembly

$262.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05085-0637

Lift Handle Assembly

$146.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05106-0637

RH Hanger Bracket

$75.99

$

In Stock, only 1 left!

0

5

Cub Cadet 684-05107-0637

LH Hanger Bracket

$75.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04095

Hex Screw, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1625

Oval Screw, #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3118

Hex Lock Screw, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-0396

Spacer, .385 x .623 x .750

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 714-05005

Pin, 7/16-1/2

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

15

Cub Cadet 720-04083

Grip, 1.188 x 4.562

$14.99

$

In Stock, only 2 left!

0

16

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 732-05216

Compression Spring, .772 x 1.95

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-05231

Extension Spring, 1.45 x 6.00

$20.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

22

Cub Cadet 738-0213

Shoulder Screw, .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

23

Cub Cadet 938-0380

Shoulder Bolt, 3/8-16 x .500 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

24

Cub Cadet 941-0170

Flange Bearing

$19.99

$

In Stock, Qty 6

0

25

Cub Cadet 946-05201

Snowblower Lift Cable

$73.99

$

In Stock, only 1 left!

0

26

Cub Cadet 747-06383

Lift Lock Rod
(Superseded to 747-06383A)

$29.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 790-00649

Lift Bracket

$49.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 790-00657

Link Lift Adapter

$28.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880

$7.49

$

In Stock, Qty 9

0
