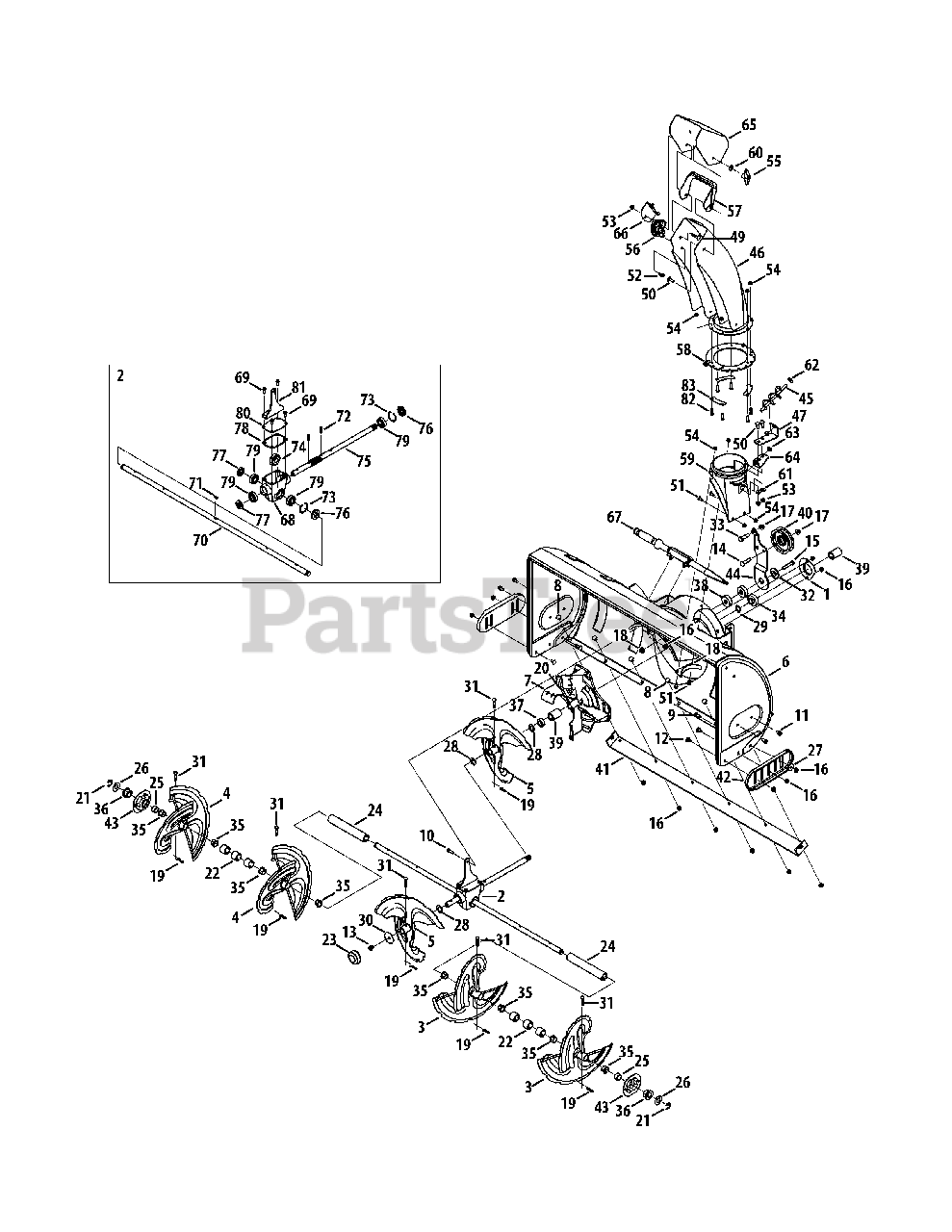

19A40023 (19A40023100) - Cub Cadet 42" 3X Snow Thrower Attachment att2 General Assembly Parts Diagram

42" 3X Snow Thrower Attachment

General Assembly Parts Diagram

  • Title

1

Cub Cadet 05931A

Bearing Housing, 1.85

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07032

Auger Gearbox Assembly

$714.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-04163-0637

LH Spiral Assembly
(Superseded to 684-04163A-0637)

$116.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-04164-0637

RH Spiral Assembly
(Superseded to 684-04164A-0637)

$116.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-05015A-4021

Accel Asembly
(Superseded to 684-05015C-4021)

$74.99

$

In Stock, only 2 left!

0

6

Cub Cadet 684-05067

Auger Housing w/ Baffle
(Superseded to 753-10384)

Variations

Cub Cadet 684-05067-0637

HOUSING ASM-AUGER 42" - POWDER BLACK (0637)

$1166.99

$

Usually ships in 3-6 days

0

$1166.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 684-05075-0637

Impeller Assembly

$132.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet 710-0560

Carriage Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

15

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 915-0114

Spiral Pin, .250 x 1.50
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

21

Cub Cadet 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

22

Cub Cadet 731-04870

Spacer, 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 731-08637A

Shaft Cap

$5.49

$

In Stock, Qty 19

0

24

Cub Cadet 731-09558

Spacer, 1.25 x .75 x 7.805

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-10404

Sleeve, .758 x 1.00 x .555

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 936-0231

Flat Washer, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

28

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

29

Cub Cadet 736-04624

Flat Washer, .75 x 1.13 x .10

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 6

0

31

Cub Cadet 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

32

Cub Cadet 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

33

Cub Cadet 738-04518

Shoulder Screw, 3/8-16 x .500 .875

$5.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 941-0309

Ball Bearing, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0493A

Flange Bearing, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 741-05041

Hex Flange Bearing, .75

$9.99

$

In Stock, only 2 left!

0

37

Cub Cadet 750-05218

Spacer, .766 x 1.25 x .415

$7.49

$

In Stock, only 1 left!

0

38

Cub Cadet 750-06184

Spacer, .385 x 1.75 x .585

$11.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-06261

Spacer, .76 x 1.25 x 1.8165

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-0627D

Idler Pulley, 3.50

$30.99

$

In Stock, Qty 20+

0

41

Cub Cadet 784-0396C-0637

Skid Plate

$64.99

$

In Stock, Qty 9

0

42

Cub Cadet 784-5038B-0637

Slide Shoe

$27.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 790-00534-4021

Bearing Housing, 1.1605

$13.99

$

In Stock, only 1 left!

0

44

Cub Cadet 790-00636-0637

Idler Pivot Bracket

$52.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 684-0061A

Chute Crank Assembly, 6.25

$41.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 684-05072-0637

Chute Assembly

$

$

Not available

47

Cub Cadet 703-2735A-0637

Chute Crank Bracket

$19.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 705-5226-0637

Chute Reinforcement

$10.99

$

In Stock, Qty 7

0

49

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

50

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

53

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

56

Cub Cadet 731-09535

Chute Tilt Cable Guide

$8.49

$

In Stock, Qty 15

0

57

Cub Cadet 731-09539A

Upper Chute Adapter

$25.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 731-10348

Chute Ring

$13.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 731-1379D

Chute Adapter

$65.99

$

In Stock, Qty 8

0

60

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

61

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 941-0475

Snap Flange Bearing, .385

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 5

0

65

Cub Cadet 790-00529-4021

Upper Chute

$39.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 790-00565-0637

Cable Bracket
(Superseded to 790-00565A-0637)

$14.99

$

In Stock, only 2 left!

0

67

Cub Cadet 931-2643

Snow Removal Tool

$19.99

$

In Stock, Qty 11

0

67

Cub Cadet 731-2635

Snow Removal Tool Clip
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 17

0

68

Cub Cadet 919-05029

Auger Housing, 500

$84.99

$

In Stock, only 2 left!

0

69

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 711-06278

Auger Axle, .75 x 41.62

$210.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 914-0161

Hi-Pro Key, 3/16 X 5/8

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 715-04034

Roll Pin, .25 x 1.00

$6.99

$

In Stock, Qty 19

0

73

Cub Cadet 716-05001

Retainer Ring

$3.49

$

In Stock, Qty 20+

0

74

Cub Cadet 917-04861

Worm Gear, 20T

$43.99

$

In Stock, Qty 20+

0

75

Cub Cadet 917-05236

Worm Shaft, .75

$237.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 721-04612

Seal, .75 x 40 mm X .25

$5.49

$

In Stock, Qty 20+

0

77

Cub Cadet 721-04613

Seal, .75 x 1.375 x .25

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 921-04614

Gearbox Cover Gasket
(Superseded to 921-04614A)

$5.49

$

In Stock, Qty 18

0

79

Cub Cadet 941-05042

Ball Bearing, .750 x 40 x 12

$11.99

$

In Stock, Qty 17

0

80

Cub Cadet 783-08281

Gearbox Cover, 500

$8.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 790-00603-0637

Gearbox Support Bracket
(Superseded to 990-00603)

$16.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

83

Cub Cadet 790-00659

Chute Flange Keeper Bracket

$9.49

$

Usually ships in 3-6 days
