19A40023 (19A40023100) - Cub Cadet 42" 3X Snow Thrower Attachment att Frame Assembly Parts Diagram

42" 3X Snow Thrower Attachment

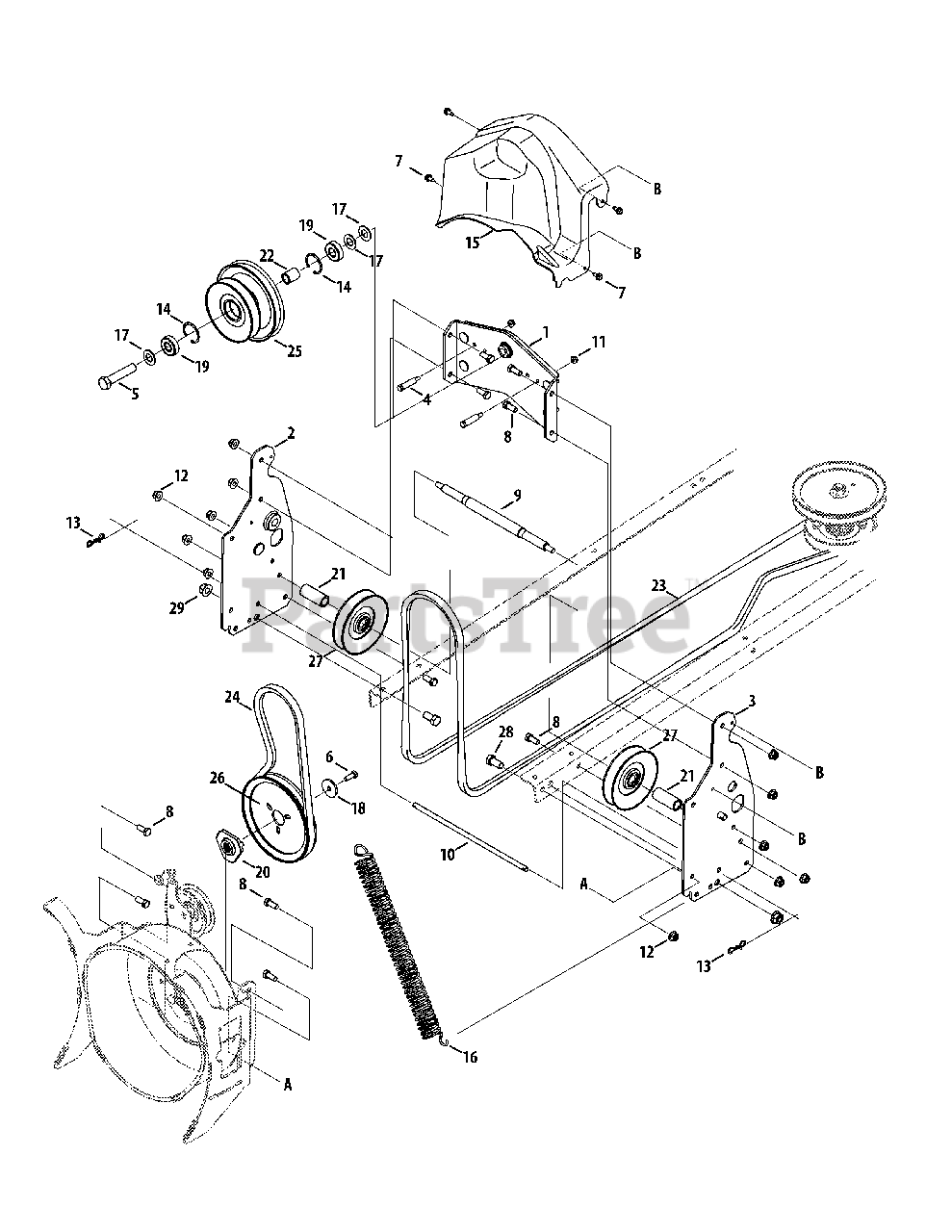

Frame Assembly Parts Diagram

  • Title
1

Cub Cadet 603-05172-0637

Spindle Support Bracket

$188.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05080-0637

RH Frame Bracket

$144.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05081-0637

LH Frame Bracket

$129.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05023

Shoulder Bolt

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00

$9.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1245B

Hex Screw, 5/16-24 x .875

$8.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 711-06298

Idler Support

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-06303

Shaft, .375 x 12.3450

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-05005

Pin, 7/16-1/2

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet 916-3020

Retainer Ring

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 931-10414

Belt Cover

$203.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-05205

Extension Spring, 1.6 x 7.584

$31.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0237

Flat Washer, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Flat Washer, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12 x 6203

$23.99

$

In Stock, Qty 20+

0

20

Cub Cadet 748-04067A

Adapter Pulley, .75

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-06246

Spacer, .65 x .96 x 2.31

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-06251

Spacer, .88 x .635 x 1.105

$9.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 954-05062

V- Belt, 138.4

$135.99

$

In Stock, only 4 left!

0

24

Cub Cadet 954-05063

V-Belt, 39.988

$52.99

$

In Stock, only 4 left!

0

25

Cub Cadet 756-05079

Double Pulley

$117.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-05082

Pulley, 7.25

$63.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 756-05084

Idler Pulley, 5.06

$54.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3131

Hex Screw, 1/2-13 x 1.00

$5.49

$

In Stock, only 1 left!

0

29

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0
