19A40023 (19A40023100) - Cub Cadet 42" 3X Snow Thrower Attachment att Control Assembly Parts Diagram

42" 3X Snow Thrower Attachment

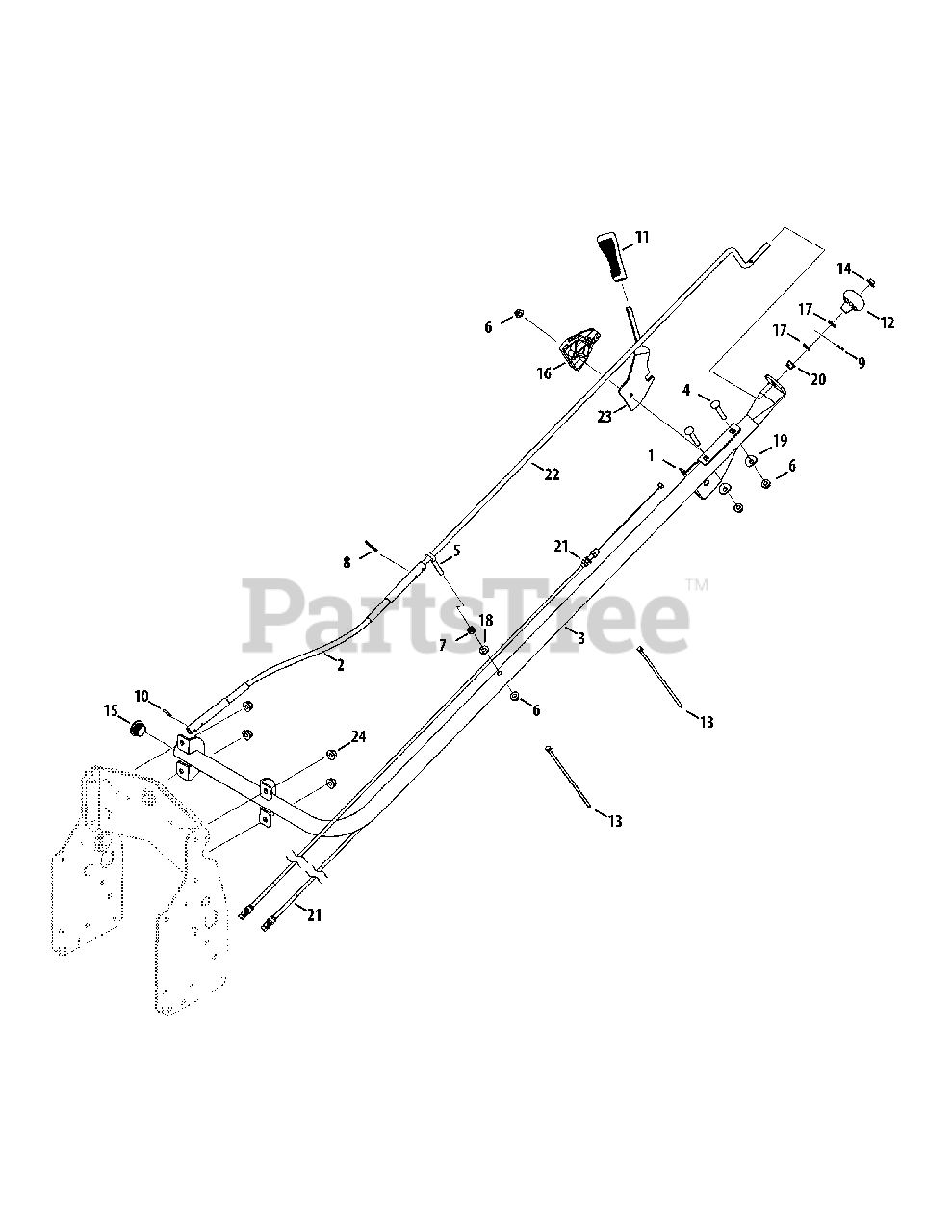

Control Assembly Parts Diagram

  • Title
1

Cub Cadet 603-0302A-0637

Tilt Assembly

$69.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 611-05064

Control Assembly

$195.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05094-0637

Bracket Assembly

$168.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05050

Eye Bolt, 5/16-18 x 3.25

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 914-0101

Cotter Pin, .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

9

Cub Cadet 915-0138

Roll Pin, 1/8 x .63

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 715-04095

Spring Pin, .156 x .875

$5.49

$

In Stock, only 2 left!

0

11

Cub Cadet 720-04049A

Handle Grip, 3/8

$16.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 720-04102

Shift Knob, .390

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

15

Cub Cadet 731-07580

Plug, 1.250

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-1313C

Chute Tile Cable Guide

$11.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

18

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

19

Cub Cadet 936-0451

Saddle Washer, .320 x .930 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

20

Cub Cadet 941-0475

Snap Flange Bearing, .385

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 946-04332A

Chute Deflector Cable, 74.5

$69.99

$

In Stock, only 2 left!

0

22

Cub Cadet 747-06436

Chute Crank, .375 x 34.63

$44.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 790-00650-0637

Chute Tilt Bracket Handle

$27.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0
