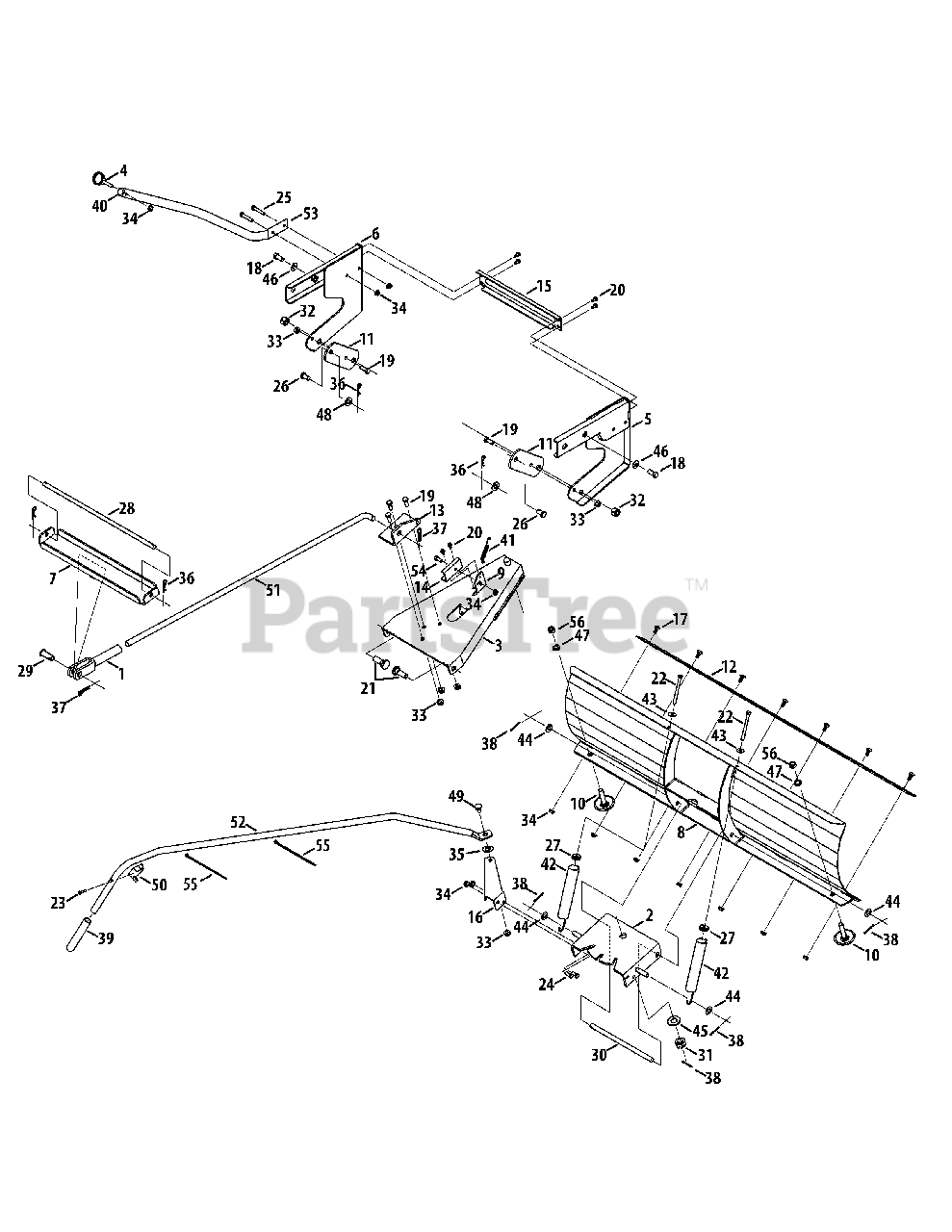

19A40022 (19A40022100) - Cub Cadet 46" Snow Blade General Assembly Parts Diagram

46" Snow Blade

General Assembly Parts Diagram

  • Title

1

Cub Cadet 10991-0637

Adjustment Clevis Assembly

$137.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0266

Blade Pivot Assembly

Variations

Cub Cadet 603-0266-0498

USE 603-0266-0716 PIVOT ASM-B - OLD CUB YELLOW (0498)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0716

PIVOT ASM-BLADE - CUB YELLOW-99 (0716)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0637

PIVOT ASM-BLADE - POWDER BLACK (0637)

$144.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-4021

PIVOT ASM-BLADE - CUB YELLOW 2 (4021)

$134.99

$

Usually ships in 3-6 days

0

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0267A-4021

Blade Frame Assembly

$354.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0297

Eyebolt Assembly

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04872-4021

RH Hitch Bracket Assembly

$127.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04874-4021

LH Hitch Bracket Assembly

$118.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-04888-4021

Lift Bracket Assembly

$77.99

$

In Stock, only 1 left!

0

8

Cub Cadet 603-04890-4021

Blade Assembly, 46"
(Superseded to 603-04890A-4021)

$596.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-04904-4021

Blade Lock Plate Assembly

$44.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-0650-0637

Skid Shoe Assembly
(Superseded to 703-0650)

$47.99

$

In Stock, Qty 8

0

11

Cub Cadet 703-08435-4021

Blade Link Bracket
(Superseded to 703-08435-0637)

$26.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08479-4021

Shave Plate, 46"

$132.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-2679

Front Lift Bracket

Variations

Cub Cadet 703-2679-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2679-4021

BRACKET-FRONT LIFT - CUB YELLOW 2 (4021)

$22.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2679-0498

BRACKET-FRONT LIFT - OLD CUB YELLOW (0498)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2679-0637

BRACKET-FRONT LIFT - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2693

Pivot Bracket

Variations

Cub Cadet 703-2693-0498

USE 703-2693-0716 BRACKET-PIV - OLD CUB YELLOW (0498)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-0716

BRACKET-PIVOT - CUB YELLOW-99 (0716)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-4021

BRACKET-PIVOT - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-2694

Snowblade Support Bracket

Variations

Cub Cadet 703-2694-0716

SUPPORT-BLADE - CUB YELLOW-99 (0716)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2694-0498

SUPPORT-BLADE - OLD CUB YELLOW (0498)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2694-0637

SUPPORT-BLADE POWDER BLACK - POWDER BLACK (0637)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2694-4021

SUPPORT-BLADE - CUB YELLOW 2 (4021)

$89.99

$

Usually ships in 3-6 days

0

$72.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-2696A-4021

Blade Adjustment Arm
(Superseded to 603-05175-4021)

$74.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0505

Hex Screw, 7/16-14 x 1.00

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

22

Cub Cadet 710-1207

Hex Screw, 5/16-18 x 3.50

$6.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

24

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet 911-0332

Clevis Pin, .50 x .78

$16.99

$

In Stock, Qty 14

0

27

Cub Cadet 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-05583

Rod, .50 x 18.61

$39.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 711-3402A

Rod, .50 x 10.428

$37.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 712-3083

Nut, 1/2-13, Hex Lock Nylon

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0414

Flat Teflon Washer, .570 x 1.12 x .062
(Superseded to 736-0414)

$

$

Not available

36

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

38

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-0331

Button Plug, 750

$

$

Not available

41

Cub Cadet 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, Qty 6

0

42

Cub Cadet 732-3123

Extension Spring, 1.25 x 6.7

$28.99

$

In Stock, only 4 left!

0

43

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

44

Cub Cadet 936-0160

Flat Washer, .530 x .930 x .050

$4.49

$

In Stock, only 1 left!

0

45

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

46

Cub Cadet 736-0407

Bell Washer, .45 x 1.00 x .062

$3.99

$

In Stock, Qty 11

0

47

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

48

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

49

Cub Cadet 738-0143

Shoulder Bolt, .496 x .336 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 946-04794

Blade Release Cable & Lever

$53.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 747-05499

Lift Rod

$94.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 749-04845-4021

Blade Adjustment Handle
(Superseded to 749-04845-0637)

$157.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 749-3042

Handle Support Tube

Variations

Cub Cadet 749-3042-0498

TUBE-HANDLE SUPPOR - OLD CUB YELLOW (0498)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-3042-0637

USE 749-3042-0716 TUBE-HANDLE - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-3042-0716

TUBE-HANDLE SUPPORT - CUB YELLOW-99 (0716)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-3042-4021

USE 749-3042A-4021 TUBE-HANDL - CUB YELLOW 2 (4021)

$86.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

55

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 912-3048

Nut, 1/2-13, Jam
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0
