19A40019 (19A40019100) - Cub Cadet 44" Snow Blower Attachment att Subframe & Winch 2011 & Before Parts Diagram

44" Snow Blower Attachment

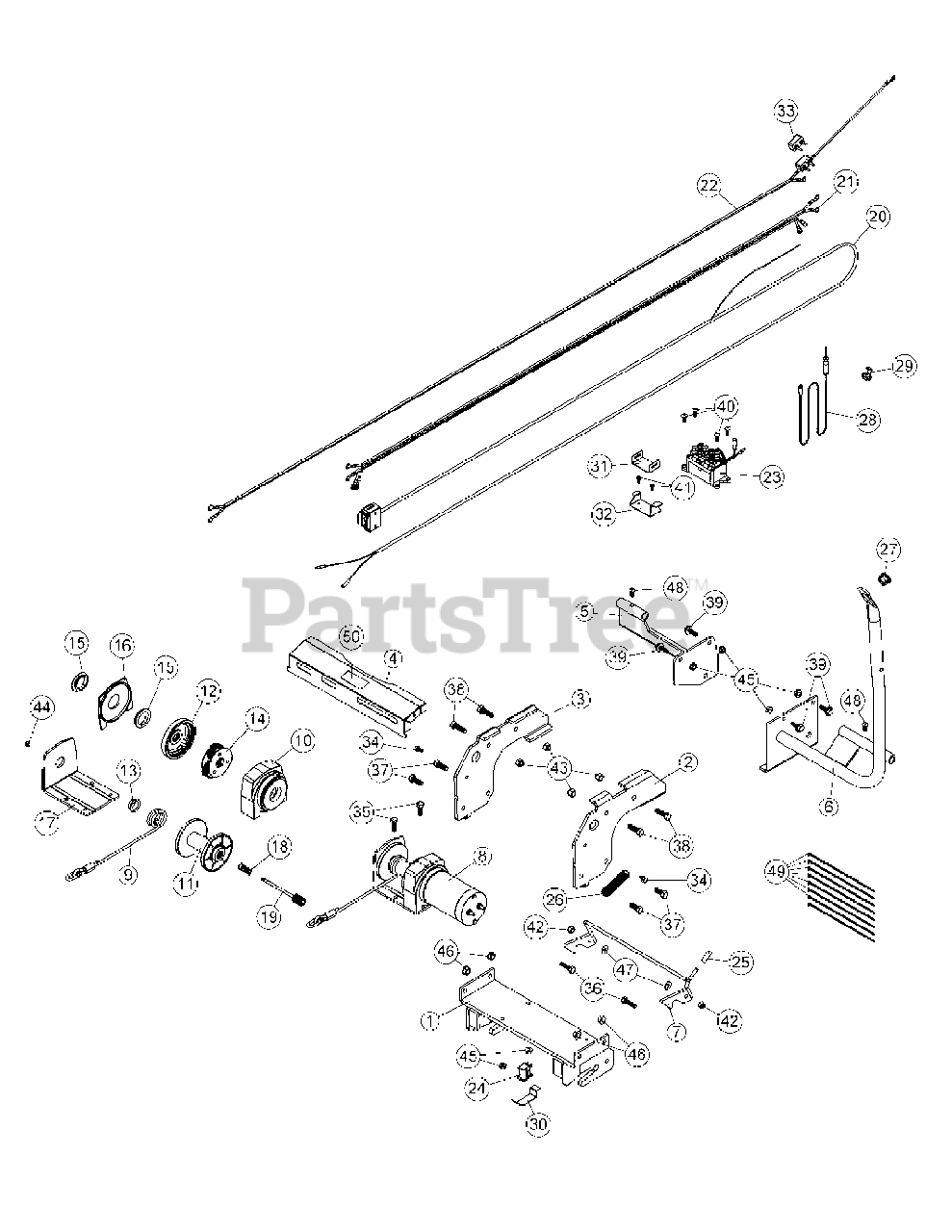

Subframe & Winch 2011 & Before Parts Diagram

  • Title

1

Cub Cadet BE-106061

Female hitch

$

$

Not available

2

Cub Cadet BE-106062

Left support

$36.99

$

Usually ships in 3-6 days

0

3

Cub Cadet BE-106063

Right support

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet BE-106064

Heat shield

$80.99

$

Usually ships in 3-6 days

0

5

Cub Cadet BE-106067

Cab support

$57.99

$

Usually ships in 3-6 days

0

6

Cub Cadet BE-106068

Handle support

$66.99

$

Usually ships in 3-6 days

0

7

Cub Cadet BE-106085

Latch

$42.99

$

Usually ships in 3-6 days

0

8

Cub Cadet BE-105247

Winch assembly
(Superseded to BE-106125P)

$216.99

$

Usually ships in 3-6 days

0

9

Cub Cadet BE-104827

Winch cable
(Superseded to BE-106089)

$27.99

$

In Stock, only 2 left!

0

10

Cub Cadet BE-105237

Reduction box

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet BE-105238

Drum

$32.99

$

Usually ships in 3-6 days

0

12

Cub Cadet BE-105239

Inner gear

$

$

Not available

13

Cub Cadet BE-105240

Bushing

$1.49

$

Usually ships in 3-6 days

0

14

Cub Cadet BE-105241

Planetary gear

$36.99

$

Usually ships in 3-6 days

0

15

Cub Cadet BE-105242

Drum support bushing

$

$

Not available

16

Cub Cadet BE-105243

Drum support plate

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet BE-105244

Base plate assembly

$28.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BE-105245

Spring

$1.99

$

Usually ships in 3-6 days

0

19

Cub Cadet BE-105246

Spline shaft
(Superseded to BE-105246P)

$11.99

$

Usually ships in 3-6 days

0

20

BE104829

Winch control

$

$

Not available

21

BE105256

Wire assembly

$

$

Not available

22

Cub Cadet BE-104831

Wire assembly

$119.99

$

Usually ships in 3-6 days

0

23

Cub Cadet BE-105257

Relay

$97.99

$

Usually ships in 3-6 days

0

24

Cub Cadet BE-105136

Limit switch

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet BE-104825

Handgrip

$1.49

$

Usually ships in 3-6 days

0

26

Cub Cadet BE-103566

Spring

$10.99

$

Usually ships in 3-6 days

0

27

BE102063

Plastic grommet

$

$

Not available

28

BE105151

Hi/low voltage tester

$

$

Not available

29

Cub Cadet BE-105152

Instant connector

$3.49

$

Usually ships in 3-6 days

0

30

BE105150

Push plate

$

$

Not available

31

BE104820

Control base

$

$

Not available

32

BE104821

Control support

$

$

Not available

33

Cub Cadet BE-105219

Breaker

$31.99

$

Usually ships in 3-6 days

0

34

Cub Cadet n/a

Hex. bolt 1/4" n.c. x 1/2"

Note: Obtain Locally

$

$

Currently unavailable

35

Cub Cadet n/a

Hex. bolt 5/16" n.c. x 1"

Note: Obtain Locally

$

$

Currently unavailable

36

Cub Cadet n/a

Hex. bolt 5/16" n.c. x 1 1/4"

Note: Obtain Locally

$

$

Currently unavailable

37

Cub Cadet n/a

Hex. bolt 3/8" n.c. x 1"

Note: Obtain Locally

$

$

Currently unavailable

38

Cub Cadet n/a

Hex. bolt 3/8" n.c. x 1 1/4"

Note: Obtain Locally

$

$

Currently unavailable

39

Cub Cadet n/a

Thread cutting screws 5/16" n.c. x 1"

Note: Obtain Locally

$

$

Currently unavailable

40

Cub Cadet n/a

Metal screw T.H. #12 x 3/4"

Note: Obtain Locally

$

$

Currently unavailable

41

Cub Cadet n/a

Metal screw pan head #8 x 1/2"

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet n/a

Nylon insert lock nut 5/16" n.c.

Note: Obtain Locally

$

$

Currently unavailable

43

Cub Cadet n/a

Nylon insert lock nut 3/8" n.c.

Note: Obtain Locally

$

$

Currently unavailable

44

Cub Cadet n/a

Nylon insert lock nut M6 x 1.00

Note: Obtain Locally

$

$

Currently unavailable

45

Cub Cadet n/a

Flange nut 5/16" n.c.

Note: Obtain Locally

$

$

Currently unavailable

46

Cub Cadet n/a

Flange nut 3/8" n.c.

Note: Obtain Locally

$

$

Currently unavailable

47

Cub Cadet n/a

Flat washer 5/16" hole

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet n/a

Square head set screw 5/16" n.c. x 1/2"

Note: Obtain Locally

$

$

Currently unavailable

49

Cub Cadet n/a

Tie wrap 8"

Note: Obtain Locally

$

$

Currently unavailable

50

Cub Cadet BE-105133

Decal caution hot surfaces

$2.99

$

Usually ships in 3-6 days

0
