19A40016 (19A40016100) - Cub Cadet 54" FAB Mower Deck (2012) att Mower Deck 54-Inch Fabricated Parts Diagram

54" FAB Mower Deck

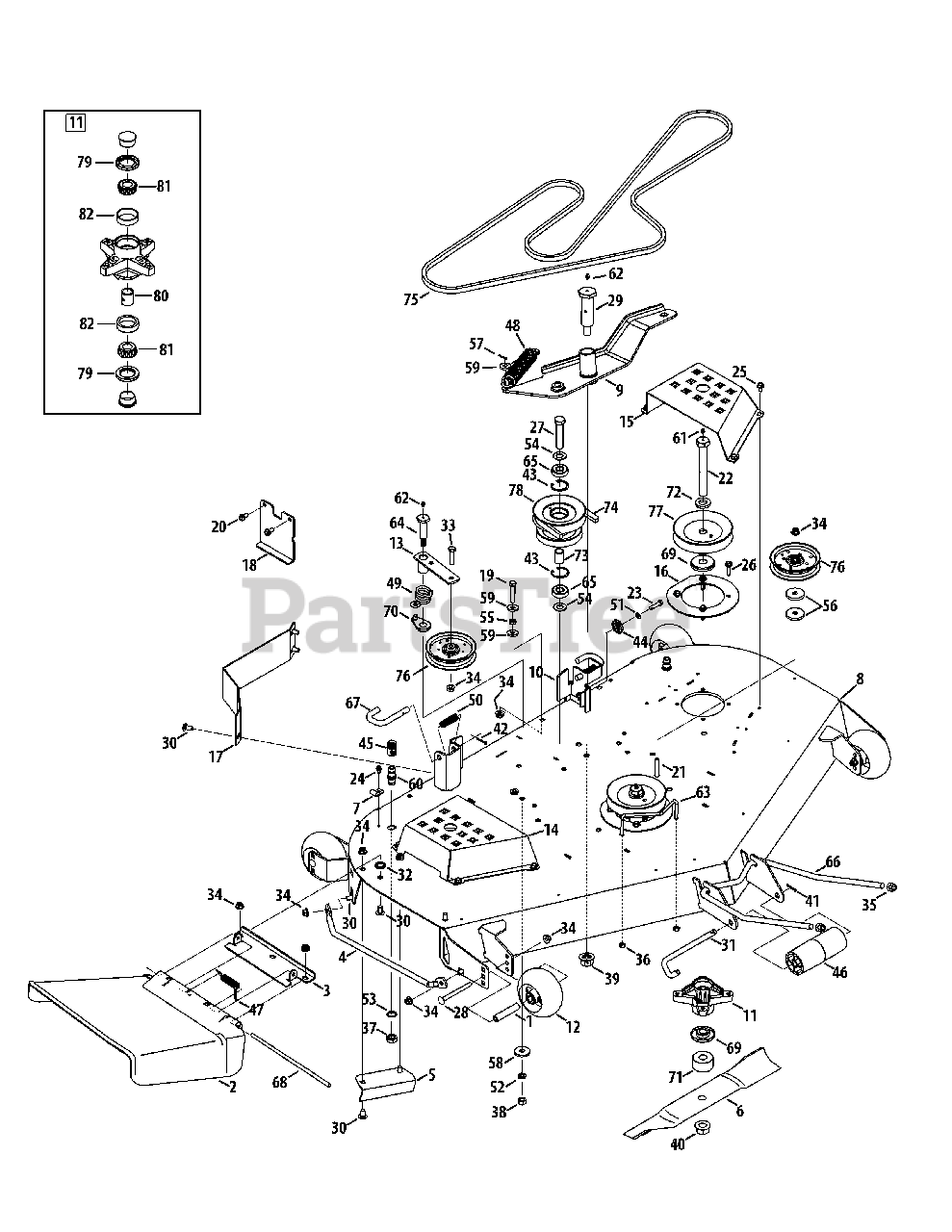

Mower Deck 54-Inch Fabricated Parts Diagram

  • Title

1

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04"

$18.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 8

0

3

Cub Cadet 01006748-0637

Chute Deflector Bracket

$35.99

$

In Stock, Qty 10

0

4

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet 02001235-0637

Micor Chute Baffle

$31.99

$

In Stock, only 3 left!

0

6

Cub Cadet 02005018

Hi-Lift Blade, 19"
(Superseded to 942-04416)

$28.99

$

In Stock, Qty 20+

0

7

Cub Cadet 96606

Hook Retainer Bracket

$7.49

$

In Stock, Qty 7

0

8

Cub Cadet 903-04923

Deck Assembly

Variations

Cub Cadet 903-04923-0637

SHELL-54"FAB DECK - POWDER BLACK (0637)

$1781.99

$

Usually ships in 3-6 days

0

Cub Cadet 903-04923-4021

SHELL-54"FAB DECK - CUB YELLOW 2 (4021)

$1781.99

$

Usually ships in 3-6 days

0

$1442.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-04851B

PTO Idler Assembly
(Superseded to 603-04851B-0637)

Variations

Cub Cadet 603-04851B-0637

PTO Idler Arm Assembly - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 603-04859

Hanger Adjustment Bracket

Variations

Cub Cadet 603-04859-0637

Hanger Adjust Bracket Assembly - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04859-4021

Hanger Adjust Bracket Assembly - CUB YELLOW 2 (4021)

$46.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

12

Cub Cadet 634-3159

Wheel, 5.0"

$34.99

$

In Stock, Qty 20+

0

13

Cub Cadet 603-04920A

Idler Arm Assembly

Variations

Cub Cadet 603-04920A-0637

Idler Arm Assembly - POWDER BLACK (0637)

$75.99

$

In Stock, only 1 left!

0

$75.99

$

In Stock, only 1 left!

0

14

Cub Cadet 703-07687A-4021

RH Belt Cover

$101.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-07688A-4021

LH Belt Cover

$101.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-07787-4021

Spindle Reinforcement Plate
(Superseded to 703-07787-0637)

$33.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-07845A-4021

Baffle
(Superseded to 703-07845A-0637)

$60.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-08458-0637

Up-Stop Bracket

$33.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75"

$5.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750"

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-04886

Carriage Bolt, 3/8-16 x 2.50"

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-05173A

Hex Screw, 3/4-16 x 6.00"

$28.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 19

0

24

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500"

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625"

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-04605

Hex Washer Screw, 5/16-18 x 1.50"
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00"

$9.99

$

In Stock, only 1 left!

0

28

Cub Cadet 710-05384

Carriage Screw, 3/8-16 x 4.00"

$5.49

$

In Stock, Qty 19

0

29

Cub Cadet 738-04544

Shoulder Screw, 1.0 x 3.00"
(Superseded to 738-04544A)

$55.99

$

In Stock, only 3 left!

0

30

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00"

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 911-3314

Roller Pin, 1/2 x 7.31"
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

32

Cub Cadet 712-0229

Push Nut, 3/8"

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 5

0

34

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16"

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04243

Flex Lock Nut, 1/2-13"

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20"
(Superseded to 712-0291)

$

$

Not available

37

Cub Cadet 912-0641

Hex Nut, M16-1.5"
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

38

Cub Cadet 912-3019

Hex Nut, 7/16-14"
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

39

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18"

$7.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16"

$9.99

$

In Stock, Qty 20+

0

41

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25"

$4.99

$

In Stock, Qty 9

0

42

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25"

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 916-3020

Retainer Ring

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

45

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

46

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

47

Cub Cadet 732-04797

Torsion Spring, 180 x .639 x 2.16 x .12"

$11.99

$

In Stock, only 4 left!

0

48

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9"

$28.99

$

In Stock, only 3 left!

0

49

Cub Cadet 732-3067

Idler Torsion Spring, 1.10 x 1.3"

$23.99

$

In Stock, only 1 left!

0

50

Cub Cadet 932-3127

Compression Spring, .66 x 1.8"

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 936-0119

Lock Washer, 5/16"

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 936-0171

Lock Washer, 7/16"
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

53

Cub Cadet 736-0225

Lock Washer, 5/8"

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet 736-0237

Flat Washer, .650 x 1.250 x .075"

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 912-3008

Jam Nut, 3/8-16"

$4.99

$

In Stock, Qty 16

0

56

Cub Cadet 736-04131

Flat Washer, .4375 x 1.75 x .25"

$15.99

$

In Stock, only 1 left!

0

57

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750"

$4.49

$

In Stock, Qty 17

0

58

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172"

$9.99

$

In Stock, Qty 16

0

59

Cub Cadet 736-0258

Falt Washer, .385 x 1.00 x .135"

$4.49

$

In Stock, only 4 left!

0

60

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

61

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16"

$4.99

$

In Stock, Qty 6

0

62

Cub Cadet 937-3000

Drive Lube Fitting, 3/16"

$4.99

$

In Stock, Qty 20+

0

63

Cub Cadet 747-05586A

Belt Drive Guard

$29.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 738-04545

Shoulder Screw, 7/16-14 x .687 x 2.443"

$26.99

$

In Stock, only 1 left!

0

65

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12"

$23.99

$

In Stock, Qty 20+

0

66

Cub Cadet 747-05350

Front Hanger Rod

$55.99

$

In Stock, Qty 5

0

67

Cub Cadet 747-3188

Mower Support Pin

$34.99

$

In Stock, only 3 left!

0

68

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

69

Cub Cadet 748-3065A

Spindle Deck Spacer

$13.99

$

In Stock, Qty 14

0

70

Cub Cadet 748-3100

Retainer Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

71

Cub Cadet 750-05282

Spindle Spacer, .760 x 2.0 x 1.10"
(Superseded to 750-05420)

$13.99

$

In Stock, only 1 left!

0

72

Cub Cadet 750-05553

Spacer, .812 x .218"

$9.99

$

In Stock, Qty 20+

0

73

Cub Cadet 950-3132

Spacer, .88 x .635 x 1.25"

$9.99

$

In Stock, only 1 left!

0

74

Cub Cadet 954-04055

PTO Belt

$78.99

$

In Stock, only 1 left!

0

75

Cub Cadet 954-04118

Deck Belt

$66.99

$

In Stock, only 1 left!

0

76

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

77

Cub Cadet 756-04459A

Pulley

$33.99

$

In Stock, only 2 left!

0

78

Cub Cadet 756-3107A

Double Pulley

$112.99

$

In Stock, only 1 left!

0

79

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

80

Cub Cadet 750-04409

Bearing Spacer, .78 x 1.0 x 1.0425"

$20.99

$

In Stock, only 1 left!

0

81

Cub Cadet 941-04089

Cone Bearing, .750"
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

82

Cub Cadet 941-04091

Bearing Cup, .750"
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0
