19A40012 (19A40012100) - Cub Cadet 42" Stamped Mower Deck (2015) att Mower Deck 42-Inch Stamped Deck Parts Diagram

42" Stamped Mower Deck

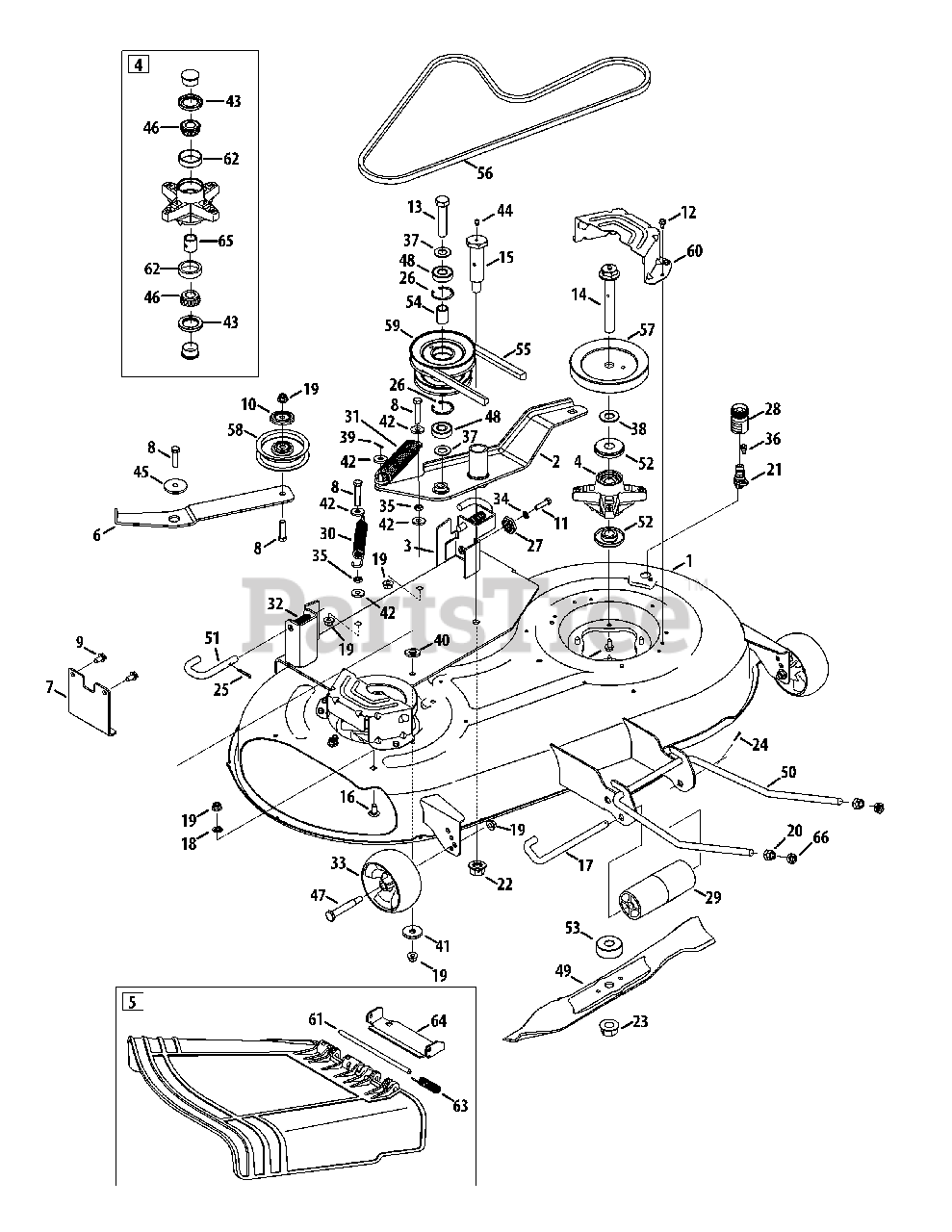

Mower Deck 42-Inch Stamped Deck Parts Diagram

  • Title

1

Cub Cadet 903-04819C-4021

Deck 42"

$922.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04851B

PTO Idler Assembly
(Superseded to 603-04851B-0637)

Variations

Cub Cadet 603-04851B-0637

PTO Idler Arm Assembly - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04859-4021

Hanger Adjustment Bracket
(Superseded to 603-04859-0637)

$46.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

5

Cub Cadet 631-05191

Chute Ass’y, Deflector 42" Offset
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-08286-0637

Idler Bracket

$42.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-08425-0637

Up-Stop Front Bracket

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

11

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00

$9.99

$

In Stock, only 2 left!

0

14

Cub Cadet 603-04944

Spindle Bolt, 3/4-16 x 5.37

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet 738-04544

Shoulder Screw, 1.0 x 3.00
(Superseded to 738-04544A)

$55.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 711-3314A

Roller Pin, 1/2 x 7.31

$25.99

$

In Stock, Qty 11

0

18

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$4.99

$

In Stock, Qty 8

0

25

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 916-3020

Retainer Ring

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

28

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

29

Cub Cadet 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

30

Cub Cadet 732-04247

Extension Spring, .850 x 6.415

$11.99

$

In Stock, Qty 6

0

31

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9

$28.99

$

In Stock, only 1 left!

0

32

Cub Cadet 932-3127

Compression Spring, .66 x 1.8

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

36

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 7

0

37

Cub Cadet 736-0237

Flat Washer, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

39

Cub Cadet 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 17

0

40

Cub Cadet 936-0344

Flat Washer, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

42

Cub Cadet 736-0258

Flat Washer, .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

43

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

44

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

46

Cub Cadet 941-04089

Cone Bearing, .750
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

47

Cub Cadet 938-3056

Shoulder Screw, 1/2 x 2.50

$9.49

$

In Stock, Qty 20+

0

48

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12

$23.99

$

In Stock, Qty 20+

0

49

Cub Cadet 942-04374

2-in-1 Blade, 21.23
(Superseded to 742-04374A-0637)

$35.99

$

In Stock, only 2 left!

0

50

Cub Cadet 747-05352

Front Lift Rod

$89.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 747-3188

Mower Support Pin

$34.99

$

In Stock, only 3 left!

0

52

Cub Cadet 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 18

0

53

Cub Cadet 750-05184

Spacer, .760 x 2.000 x .790

$37.99

$

In Stock, only 4 left!

0

54

Cub Cadet 950-3132

Spacer, .88 x .635 x 1.25

$9.99

$

In Stock, only 2 left!

0

55

Cub Cadet 954-04055

PTO Belt

$78.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 954-0645A

Deck Belt

$42.99

$

In Stock, only 2 left!

0

57

Cub Cadet 756-04458A

Pulley

$37.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 756-0627D

Idler Pulley

$30.99

$

In Stock, Qty 20+

0

59

Cub Cadet 756-3107A

Double Pulley

$112.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 783-06424A-4021

Belt Cover
(Superseded to 783-06424A-0637)

$10.99

$

In Stock, Qty 20+

0

61

Cub Cadet 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 8

0

62

Cub Cadet 941-04091

Bearing Cup, .750
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

63

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 9

0

64

Cub Cadet 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

65

Cub Cadet 750-04409

Bearing Spacer, .78 x 1.0 x 1.0425

$20.99

$

In Stock, only 1 left!

0

66

Cub Cadet 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 7

0
