19A40004 (19A40004100) - Cub Cadet Triple Rear Bagger att2 Chute & Mounting 50 & 54 Inch (XT3 & 2000 Series, Stamped Deck) Parts Diagram

Triple Rear Bagger

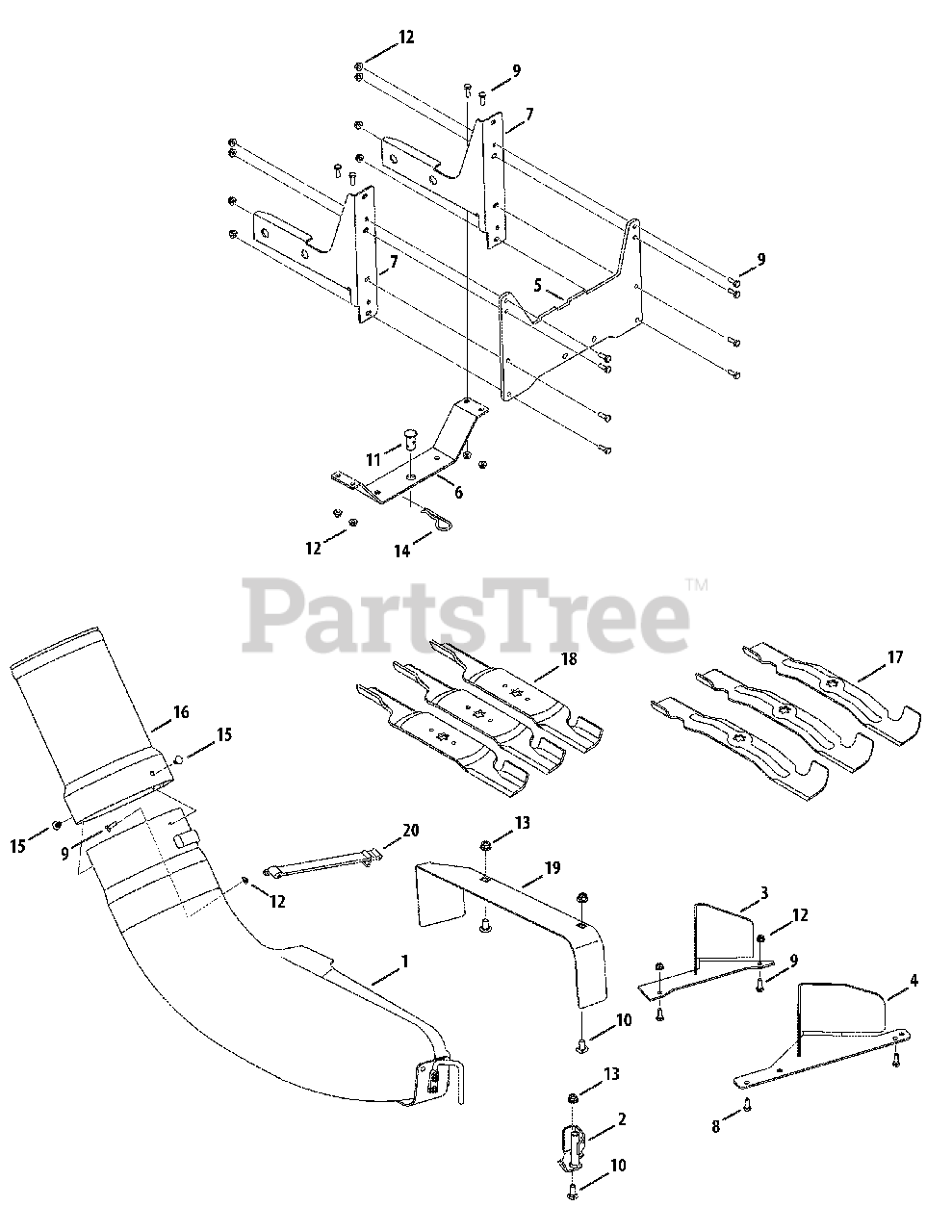

Chute & Mounting 50 & 54 Inch (XT3 & 2000 Series, Stamped Deck) Parts Diagram

  • Title
1

Cub Cadet 631-04300

Discharge Chute Assembly, 50" & 54"
(Superseded to 631-04300C)

$283.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0617A-0637

Chute Stop Bracket

$64.99

$

In Stock, only 3 left!

0

3

Cub Cadet 703-05783-0637

Deck Baffle, 50" Deck

$87.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-06018A-0637

Deck Baffle, 54" Deck

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07320-0637

Bagger Mounting Plate
(Superseded to 703-07320A-0637)

$111.99

$

Usually ships in 3-6 days

0

6

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2490-0637

Catcher Support Bracket

$87.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Self-tapp Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

12

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

15

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, only 4 left!

0

16

Cub Cadet 731-06611

Bagger Chute Adapter

$46.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 759-04046

Blades, 17.90 Bagging
(Superseded to 742P04067C)

Note: (50" deck, round hole blades, Qty of 3 packaged)

$

$

Not available

18

Cub Cadet 759-04012

Blades, 18.50 Extra Hi-Lift
(Superseded to 742-3041-0637)

Note: (54" deck, round hole blades, Qty of 3 packaged)

$59.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-06694A-0637

Chute Discharge Plate

$43.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

Cub Cadet 753-06158

Discharge Chute Plate Kit

Note: Not Shown (Incl. Extension Plate & Molding Strip)

$

$

Not available

Note: Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40007100 (For XT3 and 2000 Series models only) and one Rear Bag attachment furnished separately.

$

$

Not available
