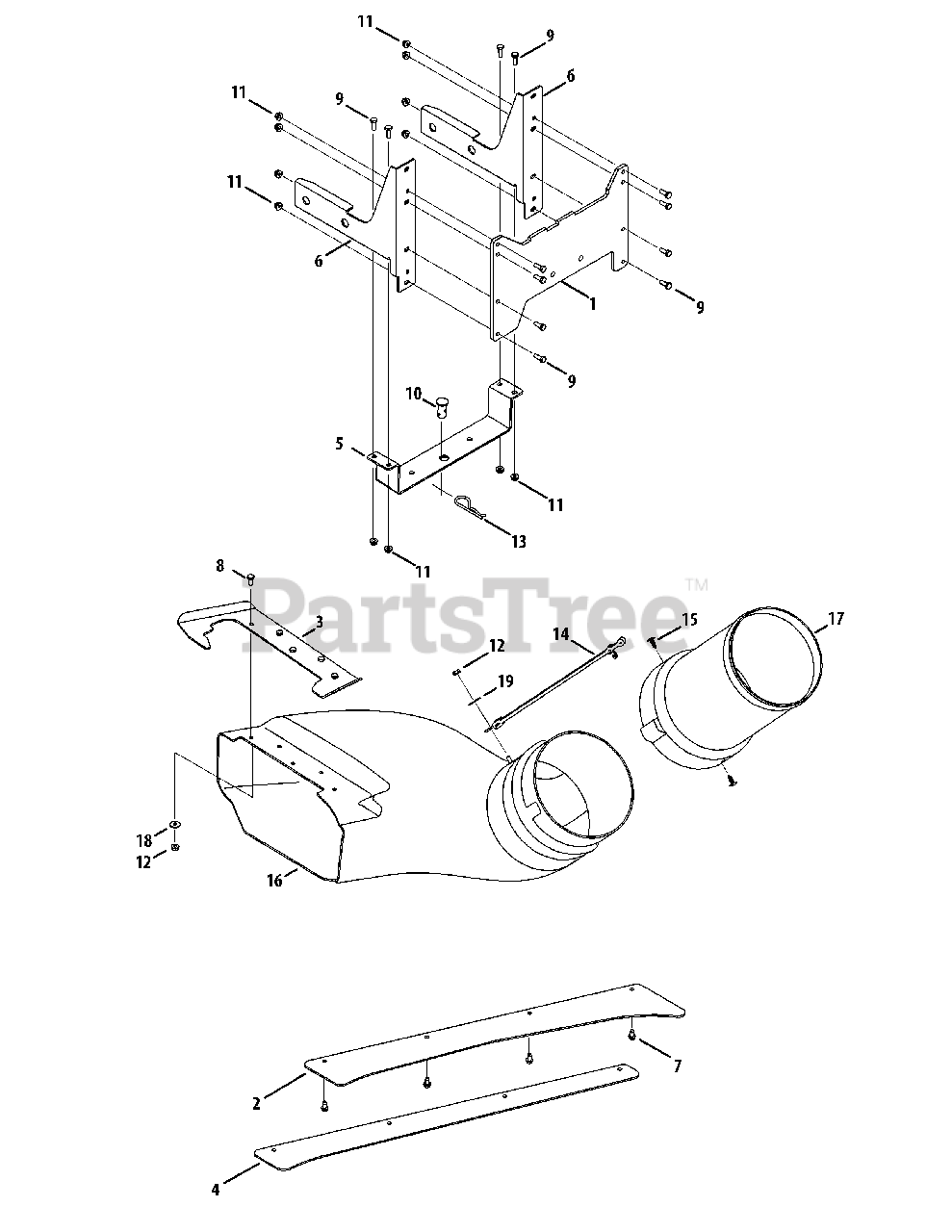

19A40004 (19A40004100) - Cub Cadet Triple Rear Bagger att Chute & Mounting 48 & 54 Inch (XT3 & 2000 Series, Fab Deck) Parts Diagram

Triple Rear Bagger

Chute & Mounting 48 & 54 Inch (XT3 & 2000 Series, Fab Deck) Parts Diagram

  • Title

1

Cub Cadet 703-07320A

Bagger Mounting Plate

Variations

Cub Cadet 703-07320A-0637

PLATE-MTG SUPPORT - POWDER BLACK (0637)

$111.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-07774

Front Baffle, 48" Deck
(Superseded to 703-07774A)

Variations

Cub Cadet 703-07774-0637

Front Deck Baffle - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07775

Boot Mounting Bracket
(Superseded to 703-07775A-0637)

Variations

Cub Cadet 703-07775-0637

Chute Mounting Plate - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08330

Front Baffle, 54" Deck
(Superseded to 703-08330A)

Variations

Cub Cadet 703-08330-0637

USE 703-08330A-0637 BAFFLE-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2489A

Cross Brace

Variations

Cub Cadet 703-2489A-0637

BRACE-CROSS - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2490-0637

Catcher Support Bracket

$87.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Tap Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0751

Hex Head Screw, 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0309A

Clevis Pin, .62 DIA.

$12.99

$

In Stock, Qty 6

0

11

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20 Nylon

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

15

Cub Cadet 726-3046

Ratchet Clip, .250 DIA

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-04347A

Chute Elbow

$208.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-06611

Bagger Chute Adaptor, 8 x 13.5

$46.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0270

Belleville Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-3092

Flat Washer, .265 x 1.000 x .030

$3.99

$

In Stock, Qty 9

0

Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40018100 (For XT3 & 2000 Series models only, Fab Deck) and one Rear Bag attachment furnished separately.

$

$
