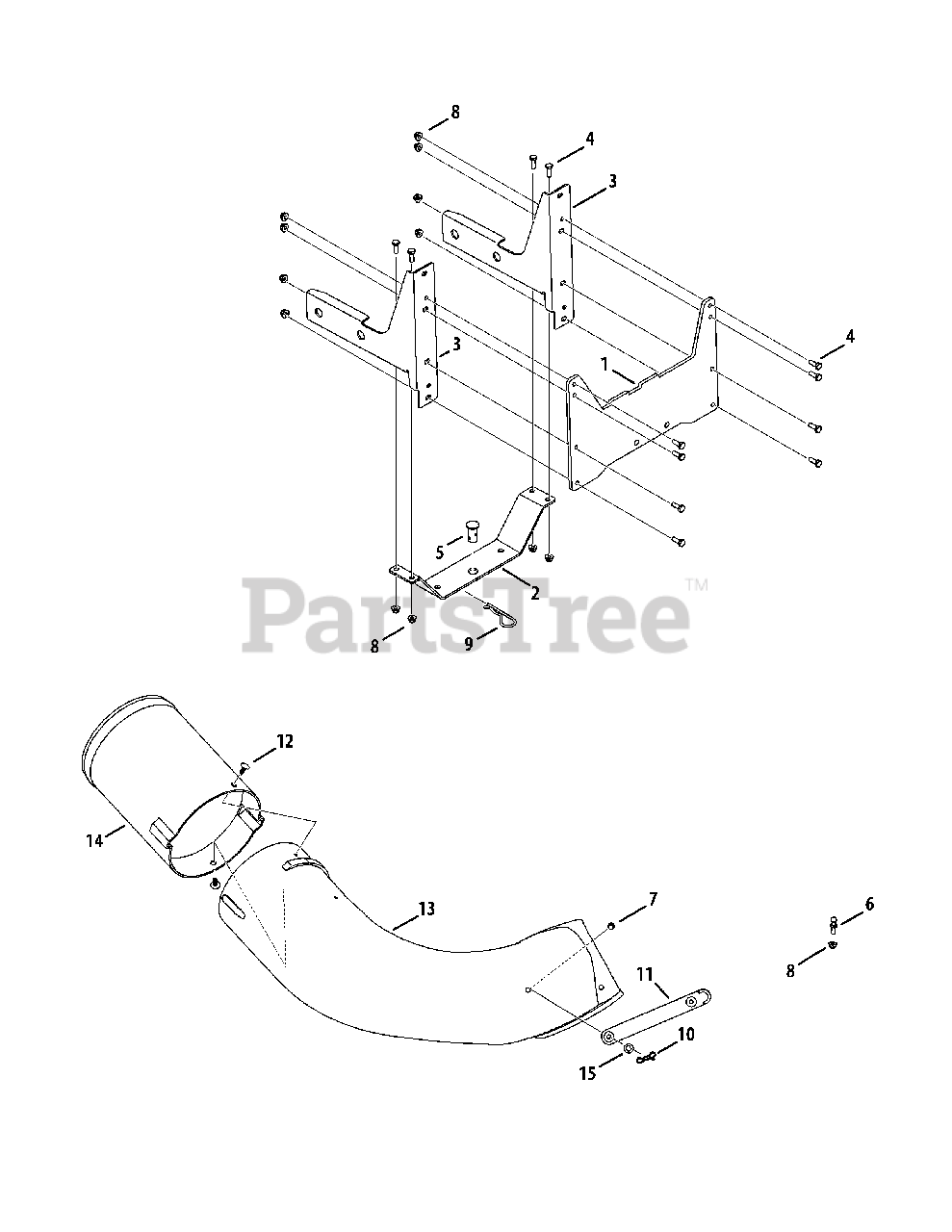

19A40003 (19A40003100) - Cub Cadet Twin Rear Bagger att2 Chute & Mounting 42 Inch (2000 Series) Parts Diagram

Twin Rear Bagger

Chute & Mounting 42 Inch (2000 Series) Parts Diagram

  • Title

1

Cub Cadet 703-07320-0637

Bagger Mounting Plate
(Superseded to 703-07320A-0637)

$111.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2489-0637

Cross Brace

$32.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2490-0637

Catcher Support Bracket

$87.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

6

Cub Cadet 911-04069

Grass-catcher Pin, 1/4-20

$8.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-05063

Clevis Pin, 5/16 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

10

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 723-04008A

Chute Strap, 6.00 Lg.

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-04153A

Bagger Discharge Chute, Elbow 38/42" Deck

$86.99

$

In Stock, only 1 left!

0

14

Cub Cadet 731-06610

Bagger Chute Adapter

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

Note: Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40005100 (For 2000 Series models only) and one Rear Bag attachment furnished separately.

$

$
