19A40002OEM - White Outdoor Triple Bag Grass Collector (2009) General Assembly Parts Diagram

Triple Bag Grass Collector

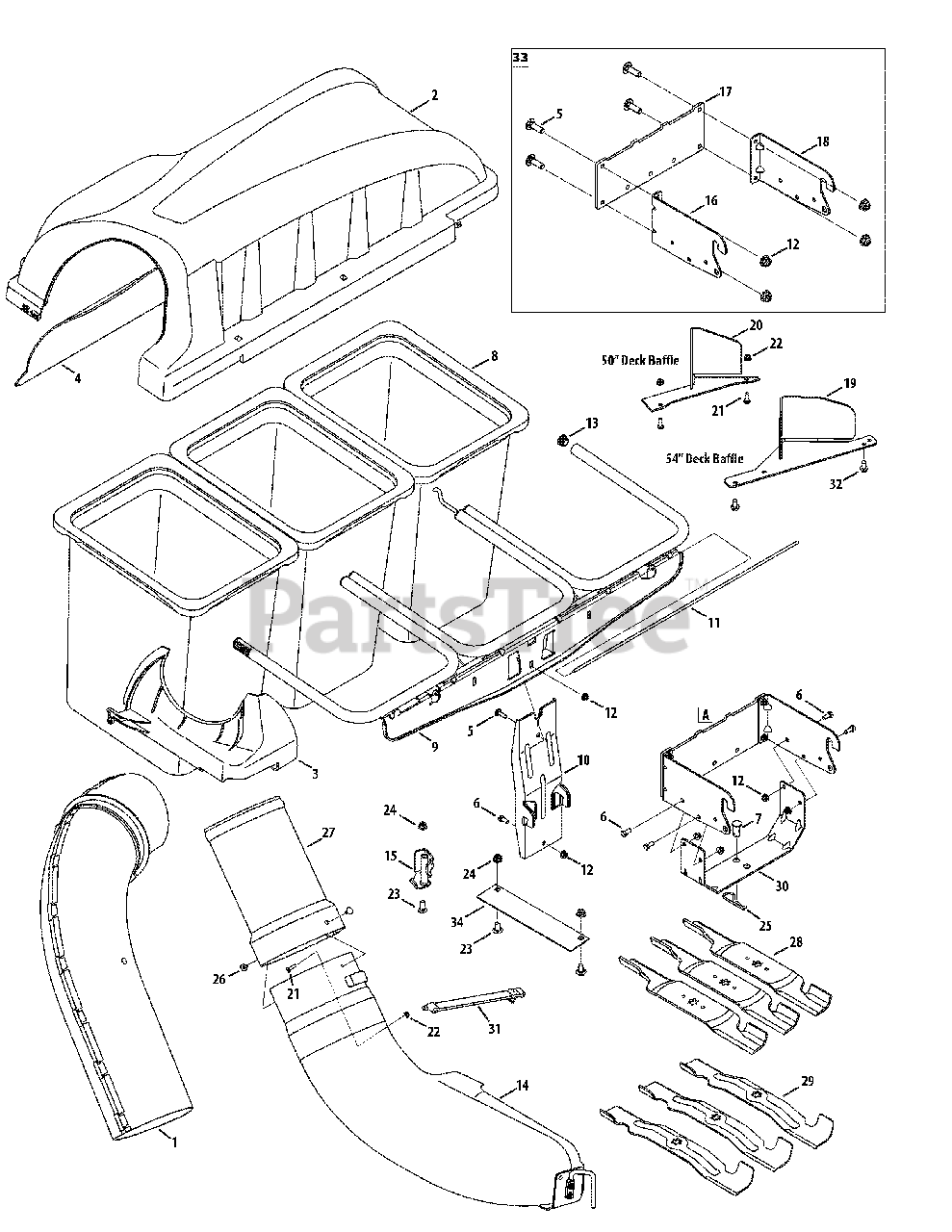

General Assembly Parts Diagram

  • Title

1

White Outdoor 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$121.99

$

In Stock, only 1 left!

0

2

MTD 931-04298

Triple Bagger Cover Assembly

$

$

Not available

3

White Outdoor 731-06497

Upper Chute Support

$36.99

$

In Stock, only 1 left!

0

4

White Outdoor 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

5

White Outdoor 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 10

0

6

White Outdoor 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 7

0

8

White Outdoor 964-04096

Grass-bag Assembly
(Superseded to 964-05104)

$95.99

$

In Stock, Qty 20+

0

9

White Outdoor 683-04498

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

Variations

White Outdoor 683-04498-0637

SUPPORT ASSY-TRIPLE - POWDER BLACK (0637)

$220.99

$

Usually ships in 3-6 days

0

$220.99

$

Usually ships in 3-6 days

0

10

White Outdoor 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

White Outdoor 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

$143.99

$

Usually ships in 3-6 days

0

11

White Outdoor 711-05079

Cover Hinge Pin

$22.99

$

Usually ships in 3-6 days

0

12

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

13

White Outdoor 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

14

White Outdoor 631-04300

Discharge Chute Elbow, 50/54" Deck
(Superseded to 631-04300C)

$283.99

$

Usually ships in 3-6 days

0

15

White Outdoor 683-0617A-0637

Chute Stop-Bracket

$64.99

$

In Stock, only 3 left!

0

16

N/A

Hitch Bracket, RH

Note: Furnish Reference No. 33

$

$

Not available

17

N/A

Universal Rear Attachment Bracket

Note: Furnish Reference No. 33

$

$

Not available

18

N/A

Hitch Bracket, LH

Note: Furnish Reference No. 33

$

$

Not available

19

White Outdoor 703-05783-0637

Deck Baffle, 50"

$87.99

$

Usually ships in 3-6 days

0

20

White Outdoor 703-06018-0637

Deck Baffle, 54"
(Superseded to 703-06018A-0637)

$92.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-3015

Tap Screw, 1/4 - 20 x .750 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 710-04484

Tap Screw, 5/16-18 x .750 (54" Deck)

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-04064

Flange Lock Nut, 1/4 - 20 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-3168

Carriage Screw, 3/8 - 16 x 1.00"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

26

White Outdoor 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

27

White Outdoor 731-06611

Bagger Chute Adapter, 7 In.

$46.99

$

Usually ships in 3-6 days

0

28

White Outdoor 742-04056C-0637

Blade, 17.90 Lg., Star Bagging
(Superseded to 942-04056C)

Note: 50 inch deck

$35.99

$

In Stock, only 3 left!

0

29

White Outdoor 942-0679

Blade, 18.50 Lg., Star Bagging
(Superseded to 942-0677B)

Note: 54 inch deck

$30.99

$

In Stock, Qty 20+

0

30

White Outdoor 783-05887-0637

Universal Bracket Support, RT-99/LT-5

$53.99

$

In Stock, only 1 left!

0

31

White Outdoor 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

32

White Outdoor 710-04484

Tap Screw, 5/16-18 x .750 (54" Deck)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 689-00101

Mounting Bracket Kit (Incl. Ref. 16-18)

$117.99

$

In Stock, only 1 left!

0

34

White Outdoor 783-06418-0637

Discharge Chute Plate

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 753-06158

Discharge Chute Plate Kit

Note: Not Shown (Incl. Extension Plate & Molding Strip)

$

$

Not available
