19A40002000 - Toro 50" Triple Bagger (2009) TRIPLE BAGGER ASSEMBLY Parts Diagram

50" Triple Bagger

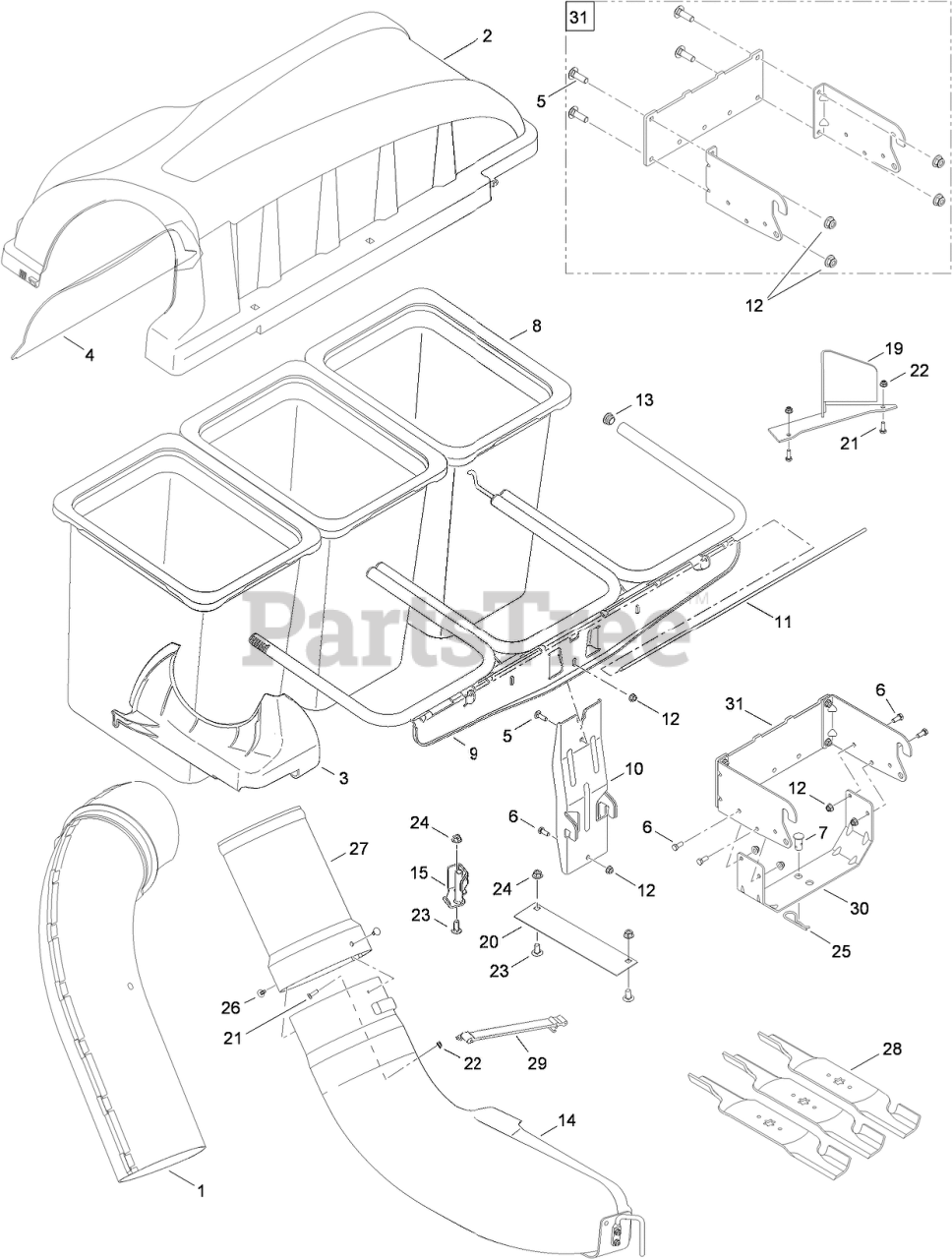

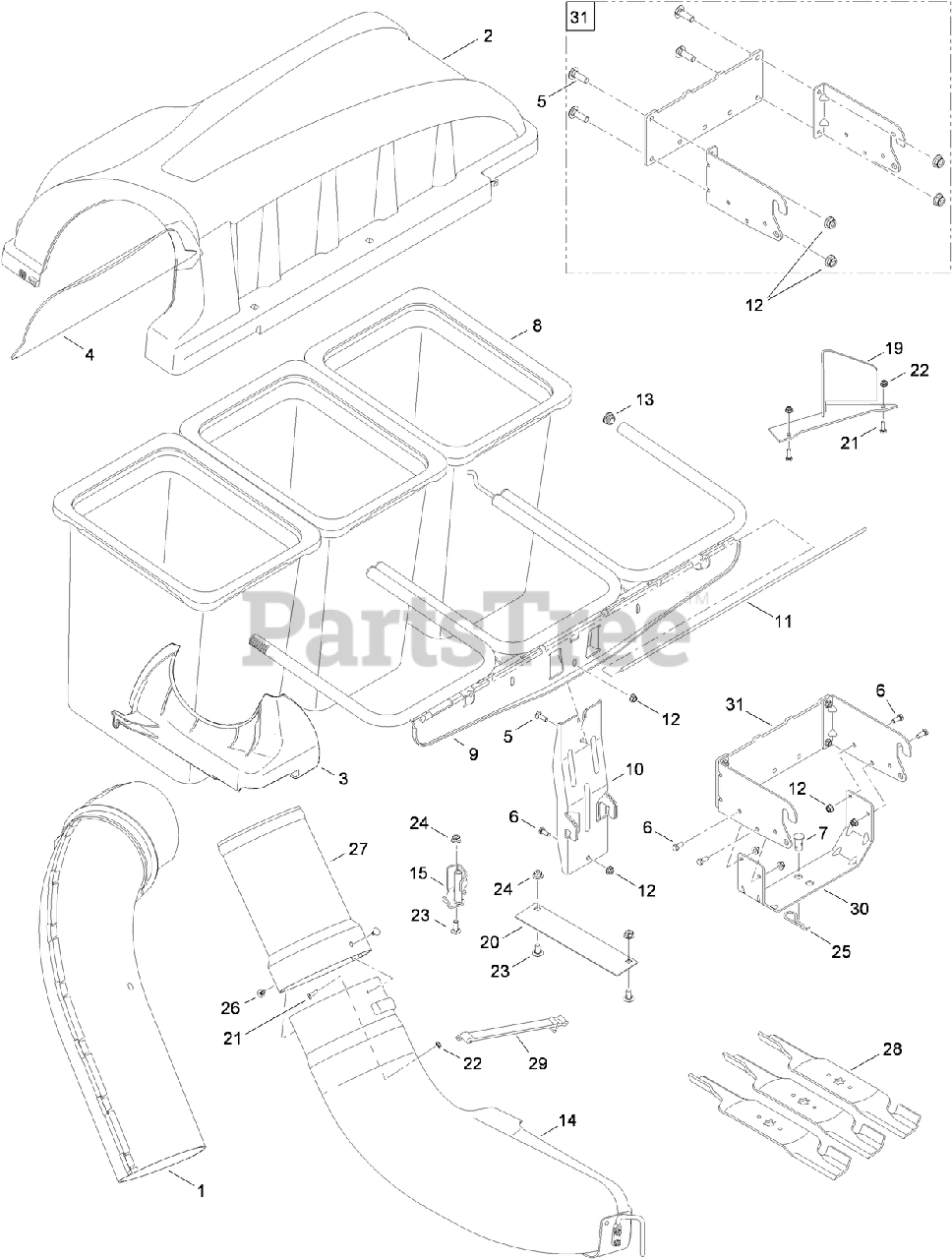

TRIPLE BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9869

UPPER CHUTE ASM

$

$

Not available

2

Toro 110-9892

TRIPLE BAGGER COVER ASM

$

$

Not available

3

Toro 110-9875

SUPPORT-CHUTE, UPPER

$

$

Not available

4

Toro 110-9876

SCREEN-COVER, BAGGER

$33.99

$

Usually ships in 3-6 days

0

5

Toro 112-0598

BOLT-CARR

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-1090

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-1244

PIN-CLEVIS

$20.99

$

Usually ships in 3-6 days

0

8

Toro 110-9883

GRASS BAG ASM

$

$

Not available

9

Toro 110-9899

TRIPLE BAG SUPPORT ASM

$

$

Not available

10

Toro 110-9885

BRACKET-SUPPORT, VERTICAL

$221.99

$

Usually ships in 3-6 days

0

11

Toro 119-3950

PIN-HINGE, COVER

$

$

Not available

12

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 3 left!

0

13

Toro 110-9888

PLUG-END

$

$

Not available

14

Toro 119-3951

ELBOW-CHUTE, DISCHARGE

$

$

Not available

15

Toro 119-3952

BRACKET-STOP, CHUTE

$

$

Not available

19

Toro 112-0964

Baffle-Deck

$

$

Not available

20

Toro 119-3953

PLATE-CHUTE, DISCHARGE

$

$

Not available

21

Toro 112-0499

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

22

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 1 left!

0

23

Toro 112-0858

BOLT-CARRIAGE

$6.99

$

Usually ships in 3-6 days

0

24

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

25

Toro 112-1246

CLIP-HAIRPIN

$

$

Not available

26

Toro 112-0549

CLIP-RATCHET, FASTENER

$6.99

$

Usually ships in 3-6 days

0

27

Toro 110-9879

ADAPTER-CHUTE, BAGGER

$88.99

$

Usually ships in 3-6 days

0

28

Toro 112-1023

BLADE-BAGGING (STAR, 17.90 INCH)

$53.99

$

Usually ships in 3-6 days

0

29

Toro 112-0998

STRAP-CHUTE

$

$

Not available

30

Toro 110-9882

SUPPORT-BRACKET, UNIVERSAL

$

$

Not available

31

Toro 110-9893

HITCH BRACKET ASM

$194.99

$

Usually ships in 3-6 days

0
