19A30047 (19A30047100) - Cub Cadet 46" Xtreme S Mulch Kit (2021) General Assembly Parts Diagram

46" Xtreme S Mulch Kit

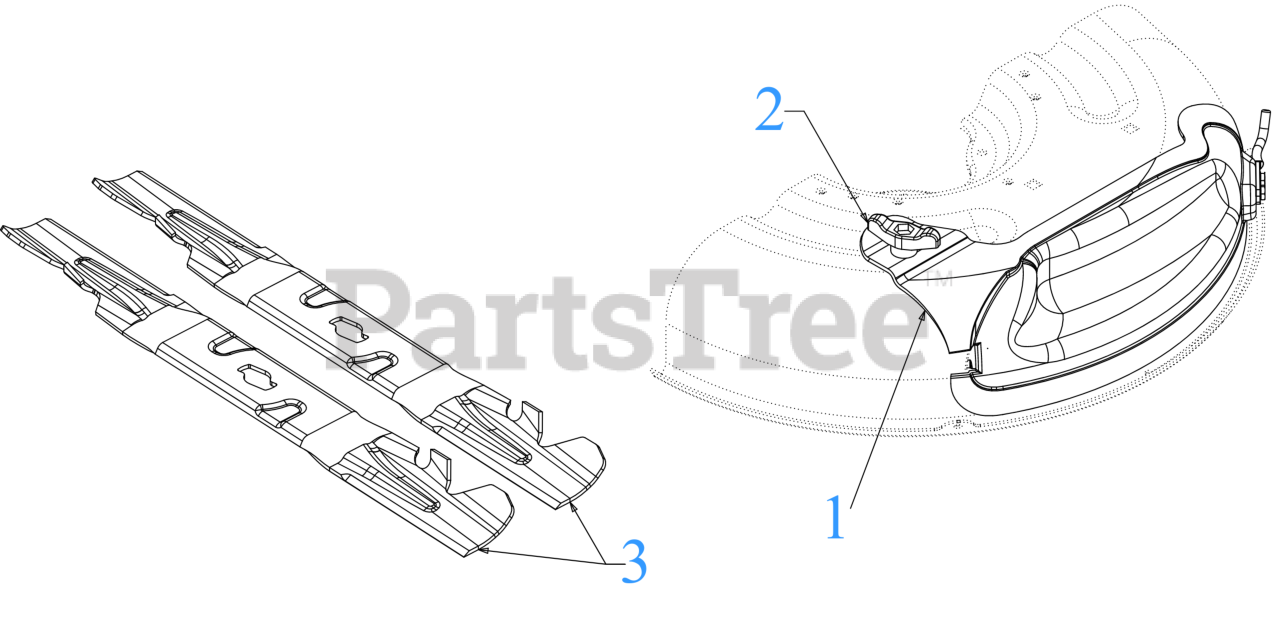

General Assembly Parts Diagram

  • Title

1

Cub Cadet 631-05195A

MULCH PLUG ASSEMBLY

$36.99

$

In Stock, only 1 left!

0

1

Cub Cadet 747-06317A

MULCH PLUG MOUTING ROD

Note: (Not Shown)

$6.49

$

In Stock, only 1 left!

0

1

Cub Cadet 712-04064

FLANGE LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

Cub Cadet 736-0270

SPRING WASHER BELL

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 742P05510-X

23.25" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$38.99

$

In Stock, only 2 left!

0
