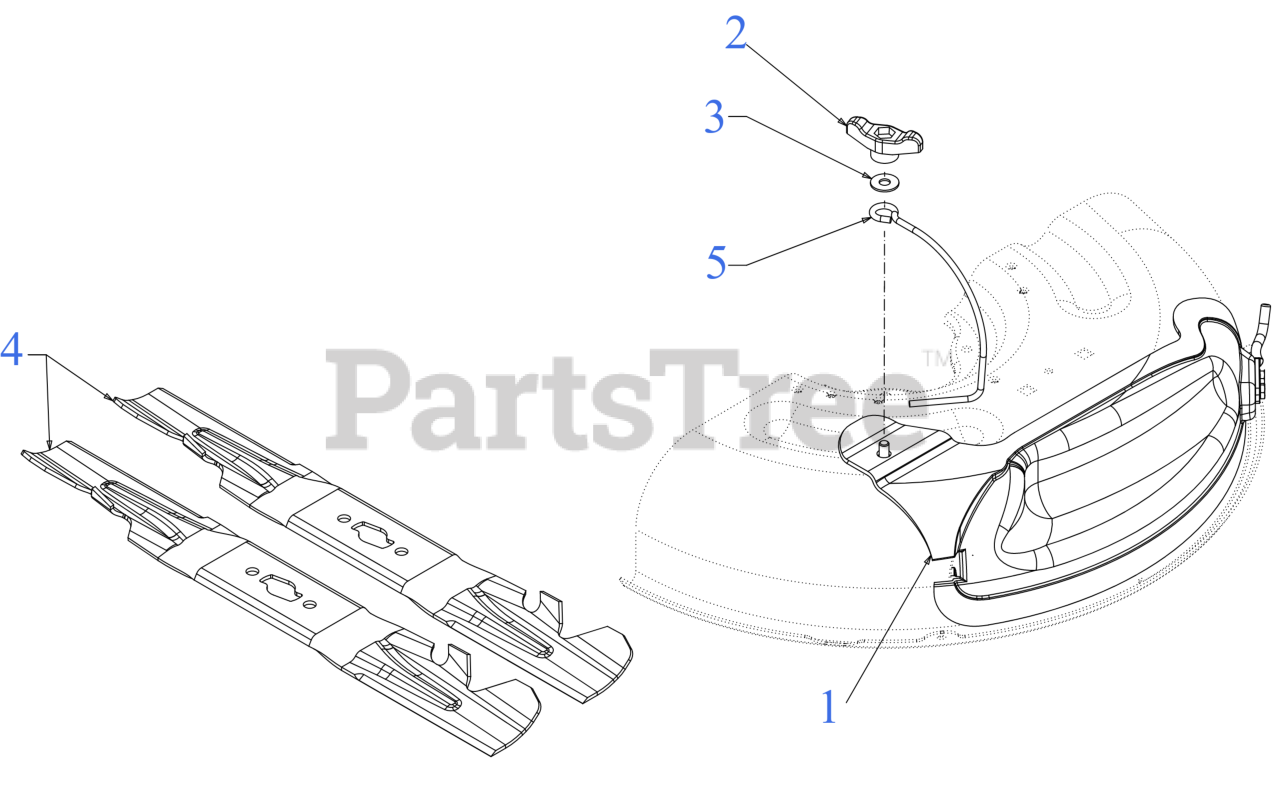

19A30046OEM - MTD 42" Xtreme S Mulch Kit (2022) General Assembly Parts Diagram

42" Xtreme S Mulch Kit

General Assembly Parts Diagram

  • Title
1

MTD 631-05195A

MULCH PLUG ASSEMBLY

$36.99

$

In Stock, only 1 left!

0

1

MTD 710-3015

SCREW 1/4-20X.75 GR5

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

MTD 712-04064

FLANGE LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

MTD 736-0270

SPRING WASHER BELL

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

MTD 747-06317A

MULCH PLUG MOUTING ROD

Note: (Not Shown)

$6.49

$

In Stock, only 1 left!

0

2

MTD 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, only 4 left!

0

3

MTD 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

4

MTD 742P05177A-X

21.23" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$33.99

$

In Stock, only 2 left!

0

5

MTD 747-06686

MULCH PLUG SUPPORT ROD

$7.49

$

In Stock, only 1 left!

0
