19A30043100 - MTD 42" & 46" Leaf Collection System General Assembly Parts Diagram

42" & 46" Leaf Collection System

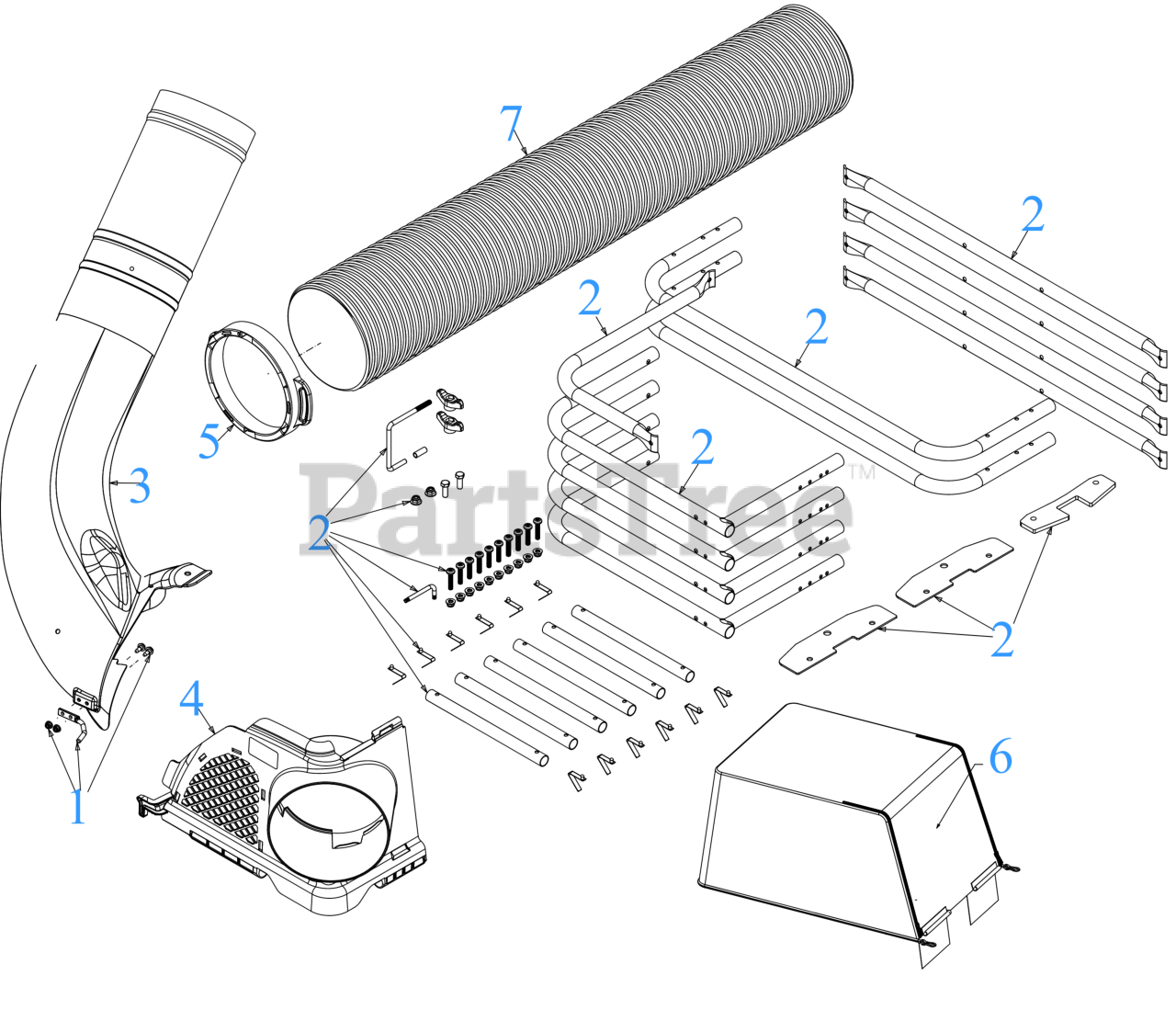

General Assembly Parts Diagram

  • Title

1

MTD 689-00636

HARDWARE PACK - BAGGER BOOT

Note: (See Separate Breakdown)

$16.99

$

In Stock, only 3 left!

0

2

MTD 689-02019

CART FRAME

Note: (See Separate Breakdown)

$117.99

$

Usually ships in 3-6 days

0

3

MTD 731-09329A

LOWER BAGGER CHUTE

Note: (See Separate Breakdown)

$121.99

$

In Stock, only 1 left!

0

4

MTD 731-12351B

OUTER BAG VENT

$33.99

$

In Stock, only 1 left!

0

5

MTD 731-12353A

BAGGER FLEX HOSE RING

$12.99

$

In Stock, Qty 18

0

6

MTD 764-05215

MESH COVER

$332.99

$

Usually ships in 3-6 days

0

7

MTD 764-05335

8" HOSE (58"LG)

$114.99

$

Usually ships in 3-6 days

0
