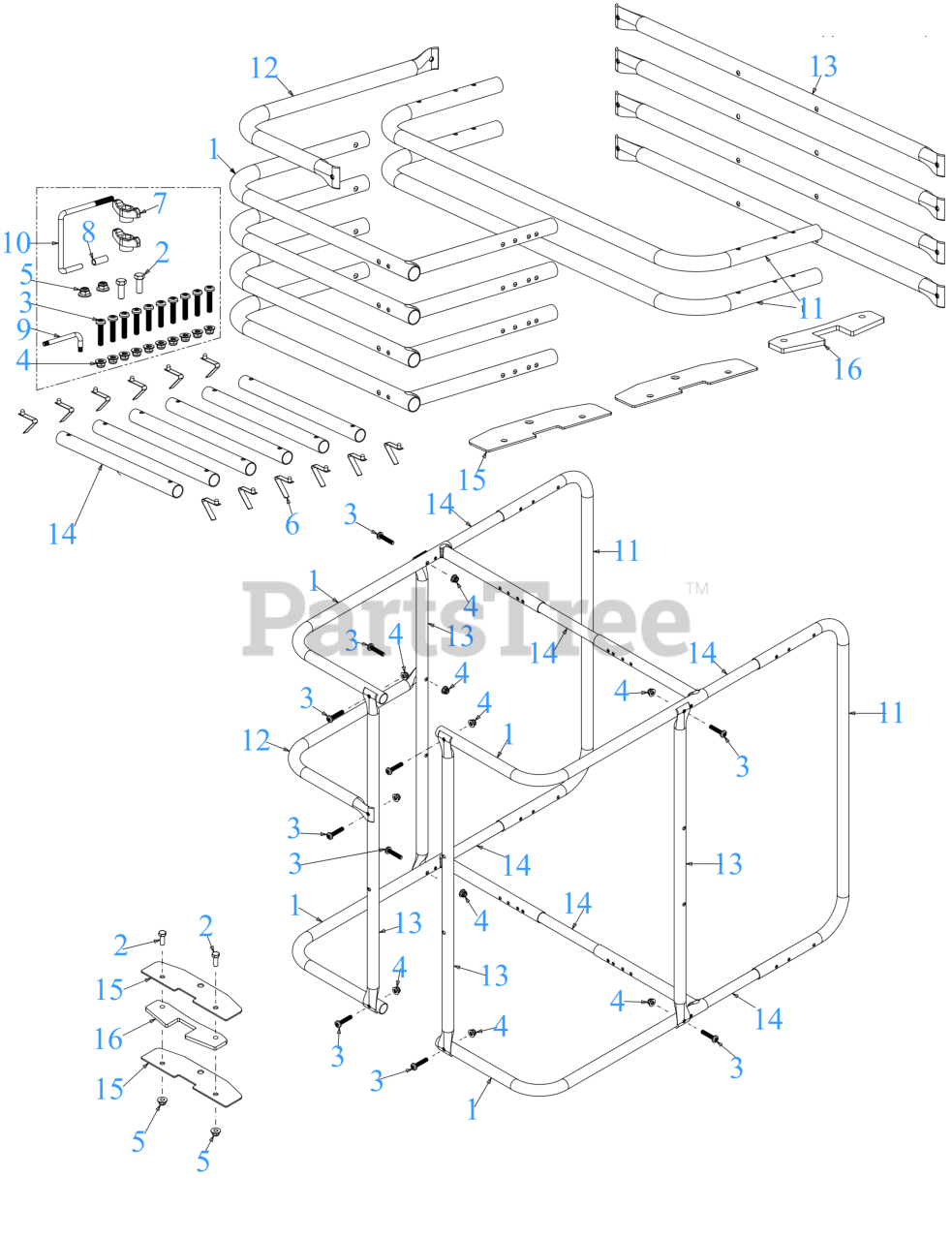

19A30043 (19A30043100) - Cub Cadet 42" & 46" Leaf Collection System Frame Parts Diagram

42" & 46" Leaf Collection System

Frame Parts Diagram

  • Title

1

TUBE

Note: Not Serviceable Separately

$

$

Not available

2

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

3

SCREW 5/16-18:2.00

Note: Not Serviceable Separately

$

$

Not available

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-05013

SPRING BUTTON CLIP

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 14

0

8

Cub Cadet 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

9

TORX TOOL

Note: Not Serviceable Separately

$

$

Not available

10

HOOK

Note: Not Serviceable Separately

$

$

Not available

11

TUBE

Note: Not Serviceable Separately

$

$

Not available

12

TUBE

Note: Not Serviceable Separately

$

$

Not available

13

TUBE

Note: Not Serviceable Separately

$

$

Not available

14

TUBE

Note: Not Serviceable Separately

$

$

Not available

15

STOP PLATE (TOP BOTTOM)

$

$

Not available

16

STOP PLATE (CENTER)

$

$

Not available

Cub Cadet 689-02019

CART FRAME

Note: (Incl. Ref 1-16)

$117.99

$

Usually ships in 3-6 days

0
