19A30031 (19A30031OEM) - Cub Cadet 42" & 46" Twin Bagger (2017) General Assembly Parts Diagram

42" & 46" Twin Bagger

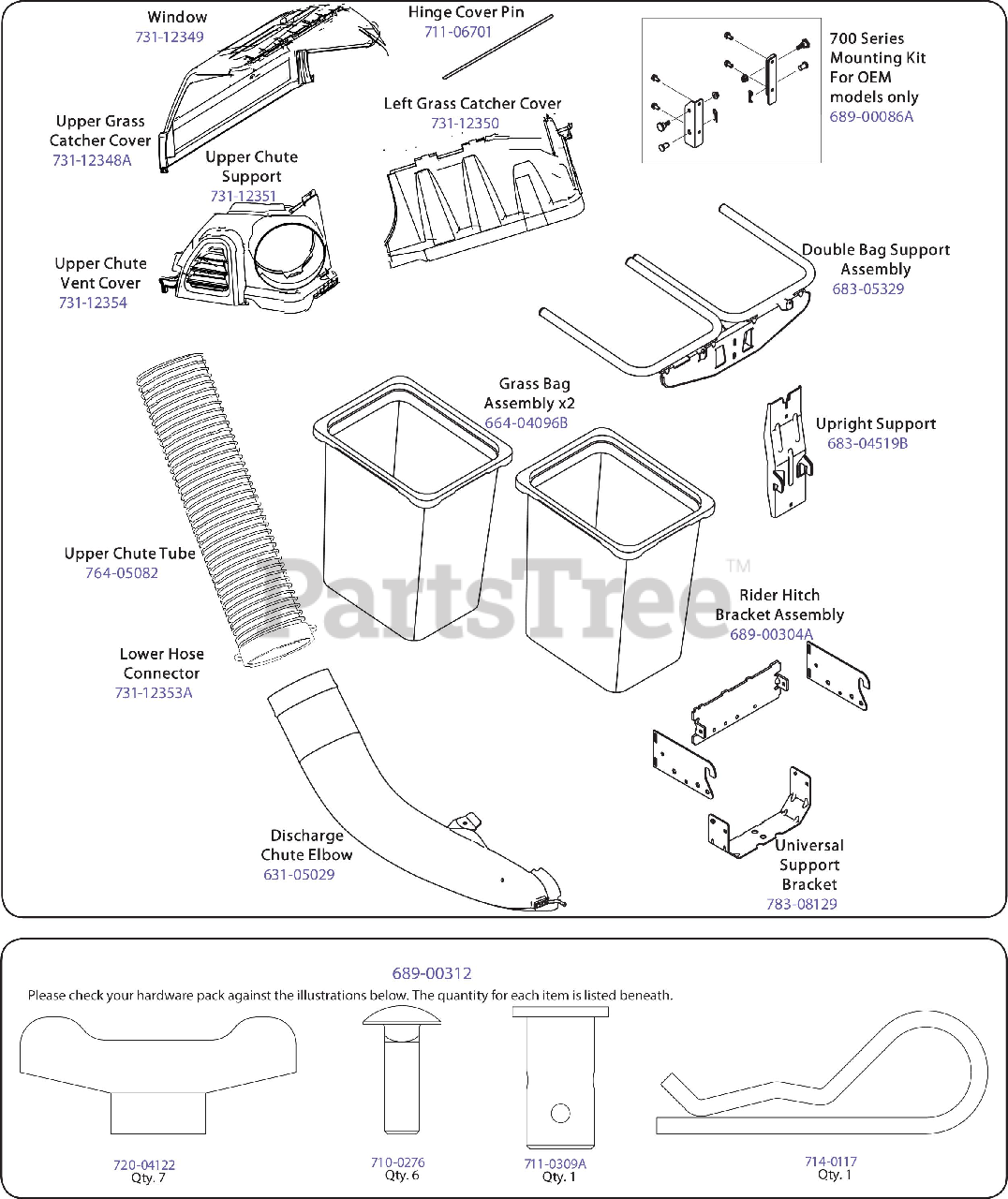

General Assembly Parts Diagram

  • Title
731-12349

Cub Cadet 731-12349

BAGGER SIGHT WINDOW

$12.99

$

In Stock, only 1 left!

0

711-06701

Cub Cadet 711-06701

BAGGER HOOD HINGE PIN

$8.49

$

In Stock, only 3 left!

0

689-00086A

Cub Cadet 753-07017

KIT-HARDWARE BRACKET

$25.99

$

In Stock, only 1 left!

0

731-12350

Cub Cadet 731-12350

BAGGER SUPPORT COVER (LH)
(Superseded to 731-12350B)

$68.99

$

In Stock, Qty 11

0

731-12351

Cub Cadet 631-05491A

BAGGER VENT WALL ASSEMBLY
(Superseded to 631-05491B)

$80.99

$

In Stock, Qty 20+

0

731-12348A

Cub Cadet 931-05474B

BAGGER HOOD ASSEMBLY

Note: (Includes 731-12349 Window)

$130.99

$

Usually ships in 3-6 days

0

731-12354

Cub Cadet 631-05491A

BAGGER VENT WALL ASSEMBLY
(Superseded to 631-05491B)

$80.99

$

In Stock, Qty 20+

0

683-05329

Cub Cadet 683-05329

TWIN BAGGER UPPER BAG SUPPORT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05329-0637

TWIN BAGGER UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

683-04519B

Cub Cadet 683-04519B

VERTICAL SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-04519B-0637

Vertical Support Bracket - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

664-04096B

Cub Cadet 964-04096A

GRASSBAG
(Superseded to 964-05104)

$95.99

$

In Stock, Qty 20+

0

764-05082

Cub Cadet 764-05082

BAGGER FLEX HOSE

$112.99

$

Usually ships in 3-6 days

0

731-12353A

Cub Cadet 731-12353A

BAGGER FLEX HOSE RING

$12.99

$

In Stock, Qty 18

0

689-00304A

Cub Cadet 689-00304A

HITCH BRACKET ASSEMBLY

$

$

Not available

783-08129

Cub Cadet 783-08129-0637

GRASSBAG HITCH BRACKET

$53.99

$

In Stock, only 1 left!

0

631-05029

Cub Cadet 731-09173A

LOWER BAGGER CHUTE

$107.99

$

In Stock, only 1 left!

0

631-05029

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

631-05029

Cub Cadet 738-05040

SCREW-SHLDR 1/4-20 x .75 TORX

$5.49

$

In Stock, only 1 left!

0

631-05029

Cub Cadet 747-06043

LOWER CHUTE MOUNTING ROD

$8.49

$

In Stock, Qty 7

0

689-00312

Cub Cadet 689-00312

HARDWARE PACK

$34.99

$

In Stock, only 4 left!

0

720-04122

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

710-0276

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

711-0309A

Cub Cadet 711-0309A

CLEVIS PIN .62

$12.99

$

In Stock, Qty 6

0

714-0117

Cub Cadet 714-0117

INTERNAL COTTER PIN

$4.49

$

In Stock, Qty 16

0
