19A30026 (19A30026100) - Cub Cadet Snow Cab Sun Shade Combo (2016) General Assembly Parts Diagram

Snow Cab Sun Shade Combo

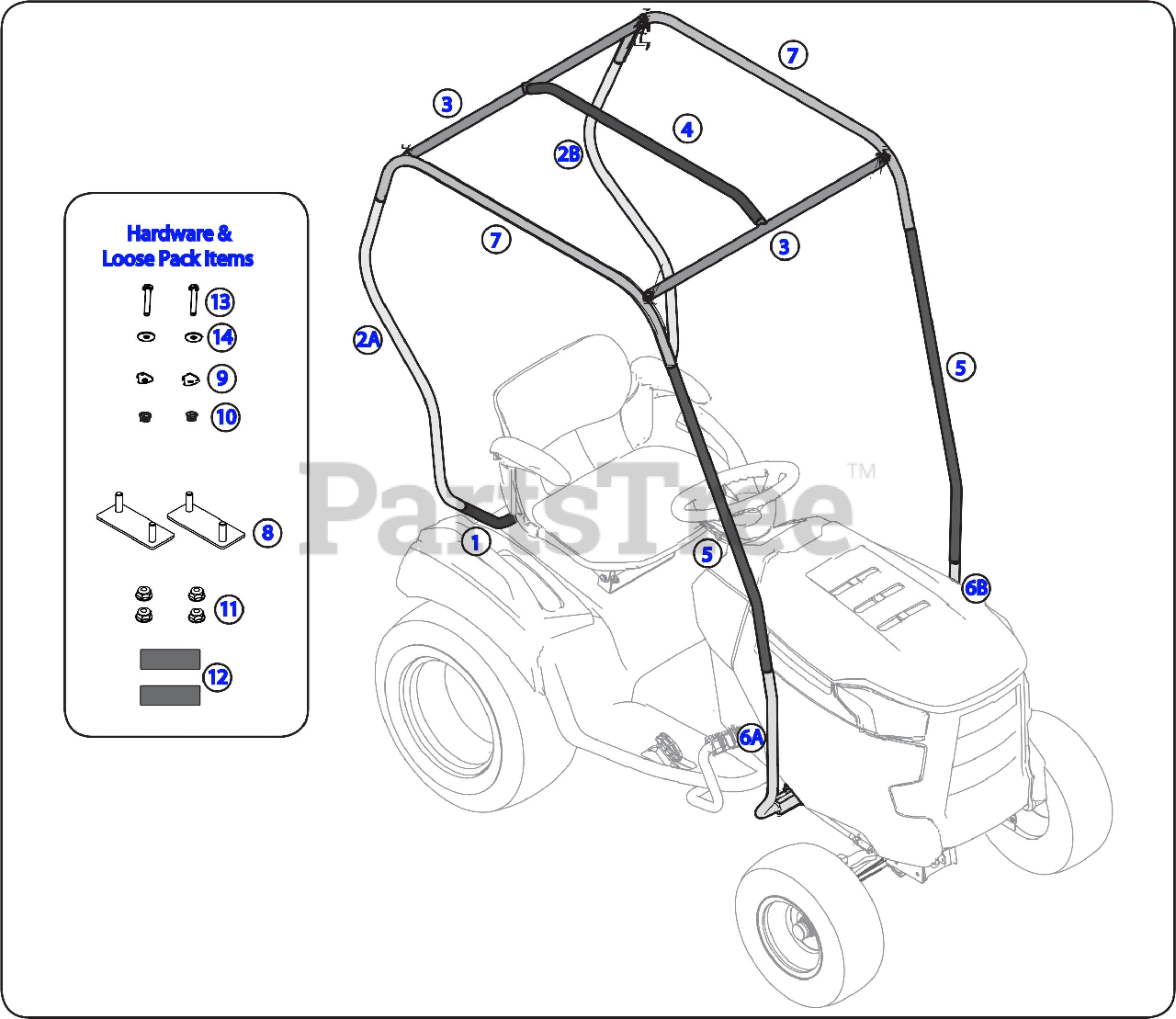

General Assembly Parts Diagram

  • Title

1

Cub Cadet 749-05389A

Rear Support

$31.99

$

Usually ships in 3-6 days

0

2A

Cub Cadet 749-05387

Rear Right Support
(Superseded to 749-05387A)

$31.99

$

Usually ships in 3-6 days

0

2B

Cub Cadet 749-05388

Rear Left Support
(Superseded to 749-05388A)

$31.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 749-05386

Cross Support

$26.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 749-05408

Center Support

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 749-05384

Front Support
(Superseded to 749-05384A)

$27.99

$

Usually ships in 3-6 days

0

6A

Cub Cadet 649-05054

Front Right Support
(Superseded to 649-05054A)

$31.99

$

Usually ships in 3-6 days

0

6B

Cub Cadet 649-05055

Front Left Support

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 649-05053

Side Support
(Superseded to 649-05053A)

$31.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 683-05220

Front Canopy Mount Plate
(Superseded to 683-05220A)

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 936-0451

Sdle. Washer., .320 x .930 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

10

Cub Cadet 712-04063

Flange Lock Nut, 5?16-18

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04064

Flange Lock Nut, 1?4-20

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 777X45500

Reflector Labels

Note: * -- If equipped

$19.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3180

Hex Screw, 5?16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

14

Cub Cadet 736-3078

Fl. Wash., 344 x 1.000 x .063

$4.49

$

In Stock, Qty 20+

0

NS

Cub Cadet 714-05013

Spring Button Clip

$8.49

$

Usually ships in 3-6 days

0

NS

Cub Cadet 790-00712

Snow Cab
(Superseded to 790-00712A)

Note: * -- If equipped

$357.99

$

Usually ships in 3-6 days

0

NS

Cub Cadet 790-00710

Sun Shade

Note: * -- If equipped

$

$

Not available
