19A30014 (19A30014OEM) - Cub Cadet 30" Twin Rear Bagger (2015) att General Assembly Parts Diagram

30" Twin Rear Bagger

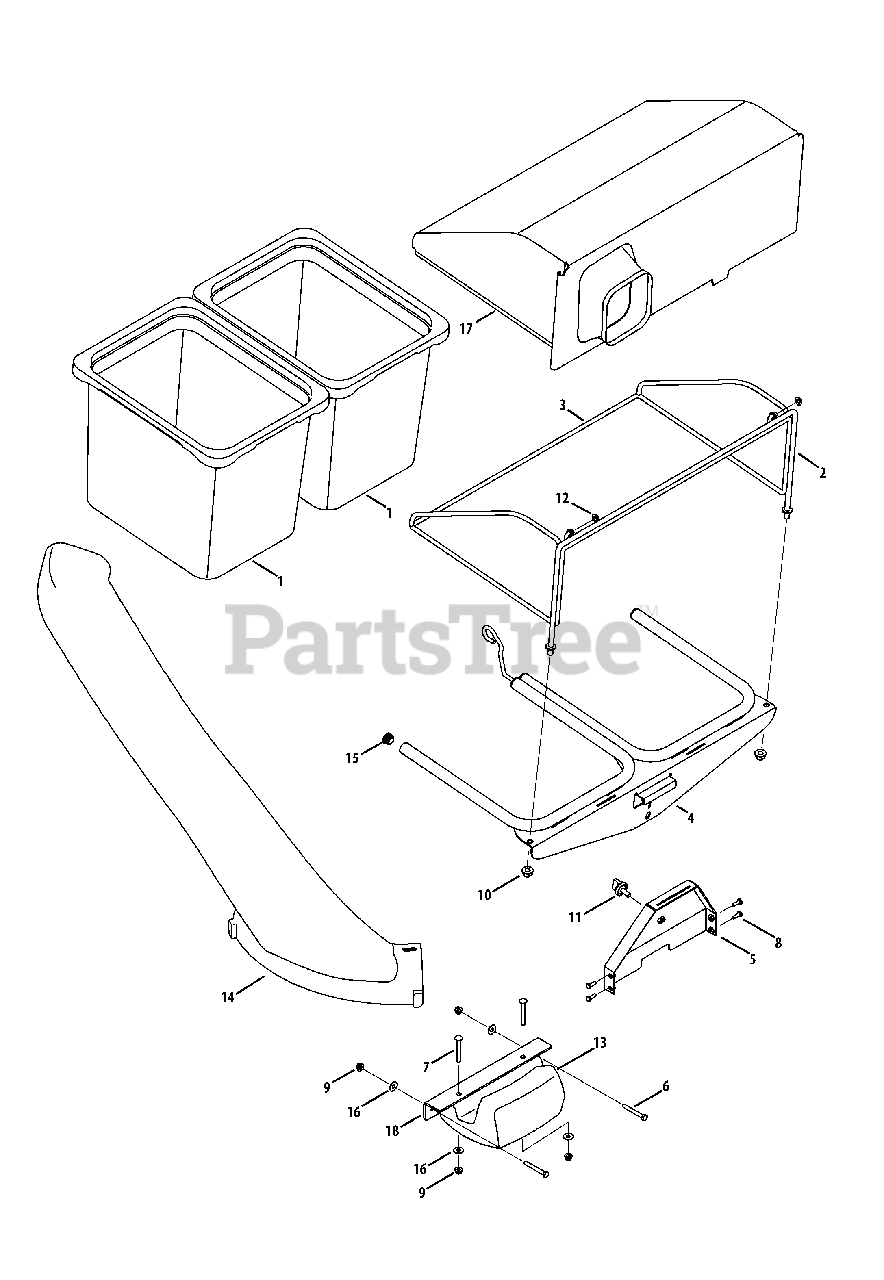

General Assembly Parts Diagram

  • Title

1

Cub Cadet 964-04167

Grass Bag

$39.99

$

In Stock, only 2 left!

0

2

Cub Cadet 683-04771-0637

Front Hood Assembly Frame
(Superseded to 683-04771)

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-04772-0637

Rear Hood Assembly Frame
(Superseded to 683-04772)

$73.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 683-04775-0637

Bagger Support Assembly
(Superseded to 683-04775A-0637)

$212.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-04781A-0637

Mounting Bracket
(Superseded to 983-05137)

$108.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0378

Hex Lock Screw, 5/16-18, 2.50

$4.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0572

Carriage Bolt, 5/16-18, 2.50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3296

Hex Head Screw, 1/4-20, .750

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 720-04061

Knob, 3/8-16, .875

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 926-0100

Push Cap, 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

13

Cub Cadet 731-09227

Weight

$82.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-09351

Chute Tube
(Superseded to 631-05078P)

$147.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-0246A

Plug End

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

17

Cub Cadet 764-04148A

Grass Catcher Hood
(Superseded to 764-04148B)

$73.99

$

In Stock, only 1 left!

0

18

Cub Cadet 783-08135-0637

Weight Mounting Bracket

$48.99

$

Usually ships in 3-6 days

0
