19A30004000 - Toro 46" Twin Bagger (2009) 46 INCH TWIN BAGGER ASSEMBLY Parts Diagram

46" Twin Bagger

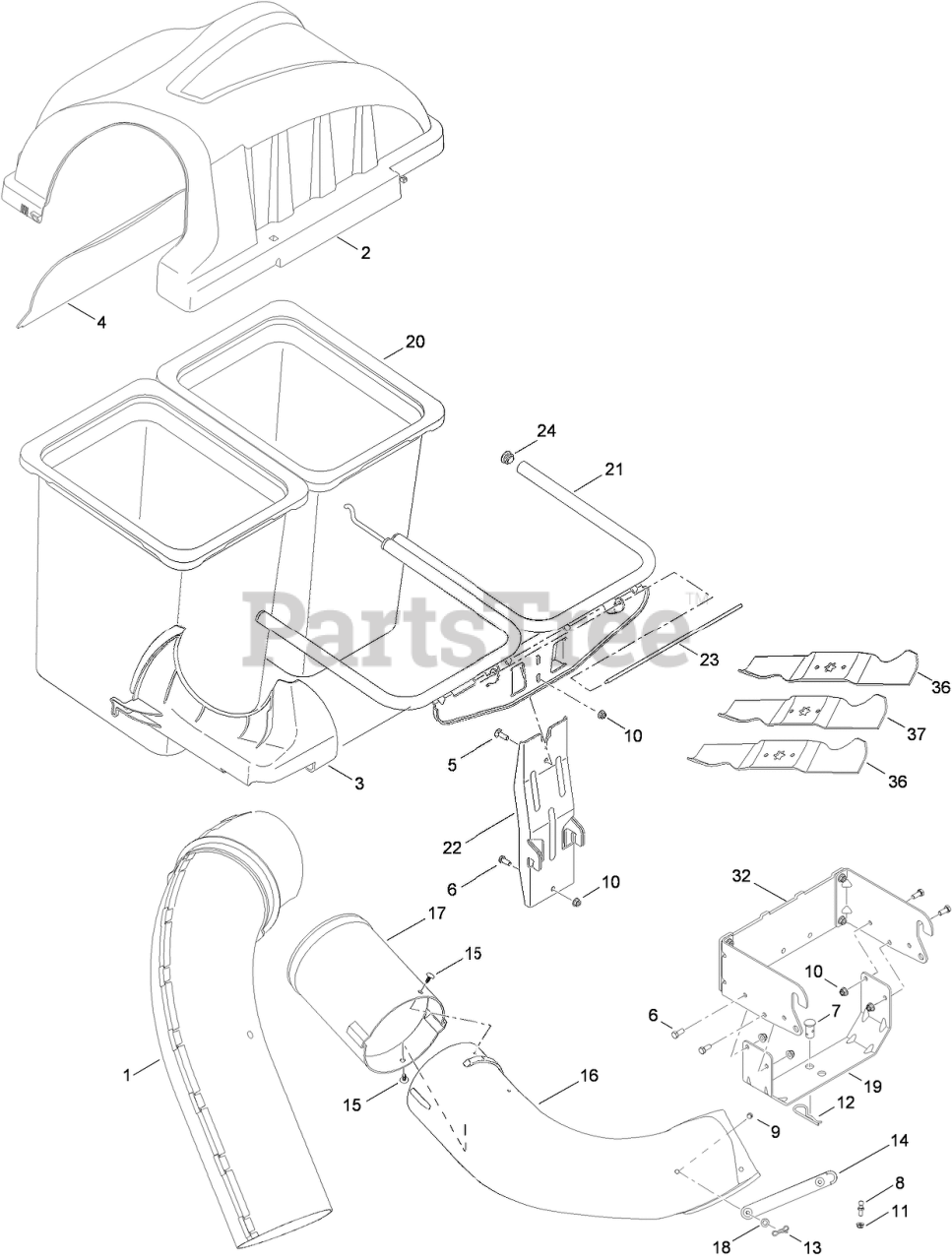

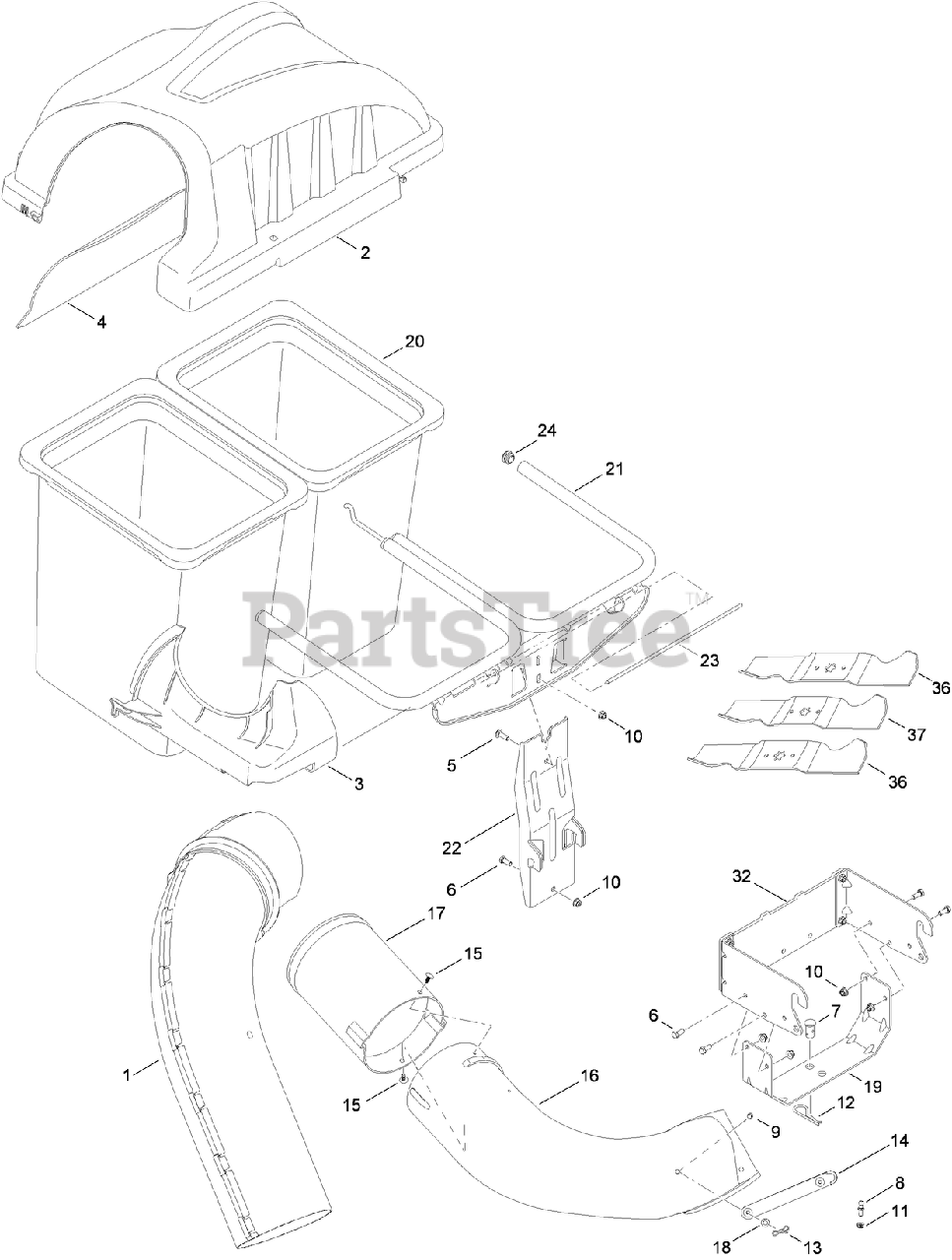

46 INCH TWIN BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9869

UPPER CHUTE ASM

$

$

Not available

2

Toro 110-9874

DOUBLE BAGGER COVER ASM

$337.99

$

Usually ships in 3-6 days

0

3

Toro 110-9875

SUPPORT-CHUTE, UPPER

$

$

Not available

4

Toro 110-9876

SCREEN-COVER, BAGGER

$36.99

$

Usually ships in 3-6 days

0

5

Toro 112-0598

BOLT-CARR

$

$

Not available

6

Toro 112-1090

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

7

Toro 112-1244

PIN-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

8

Toro 112-0484

PIN-CATCHER, GRASS

$14.99

$

Usually ships in 3-6 days

0

9

Toro 110-9877

PIN-CLEVIS

$6.99

$

Usually ships in 3-6 days

0

10

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

11

Toro 112-0636

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 1 left!

0

12

Toro 112-1246

CLIP-HAIRPIN

$

$

Not available

13

Toro 112-0990

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

14

Toro 112-0996

STRAP-CHUTE

$16.99

$

Usually ships in 3-6 days

0

15

Toro 112-0549

CLIP-RATCHET, FASTENER

$7.49

$

Usually ships in 3-6 days

0

16

Toro 110-9878

CHUTE-DISCHARGE

$206.99

$

Usually ships in 3-6 days

0

17

Toro 110-9879

ADAPTER-CHUTE, BAGGER

$96.99

$

Usually ships in 3-6 days

0

18

Toro 112-6051

WASHER-BELL

$

$

Not available

19

Toro 110-9882

SUPPORT-BRACKET, UNIVERSAL

$

$

Not available

20

Toro 110-9883

GRASS BAG ASM

$

$

Not available

21

Toro 110-9884

DOUBLE BAG SUPPORT ASM

$431.99

$

Usually ships in 3-6 days

0

22

Toro 110-9885

BRACKET-SUPPORT, VERTICAL

$

$

Not available

23

Toro 110-9886

PIN-HINGE, COVER

$

$

Not available

24

Toro 110-9888

PLUG-END

$

$

Not available

32

Toro 110-9893

HITCH BRACKET ASM

$

$

Not available

36

Toro 112-1184

BLADE (2 IN 1 STAR, 16.28 INCH)

$63.99

$

Usually ships in 3-6 days

0

37

Toro 112-1185

BLADE (2 IN 1 STAR, 14.88 INCH)

$63.99

$

Usually ships in 3-6 days

0
