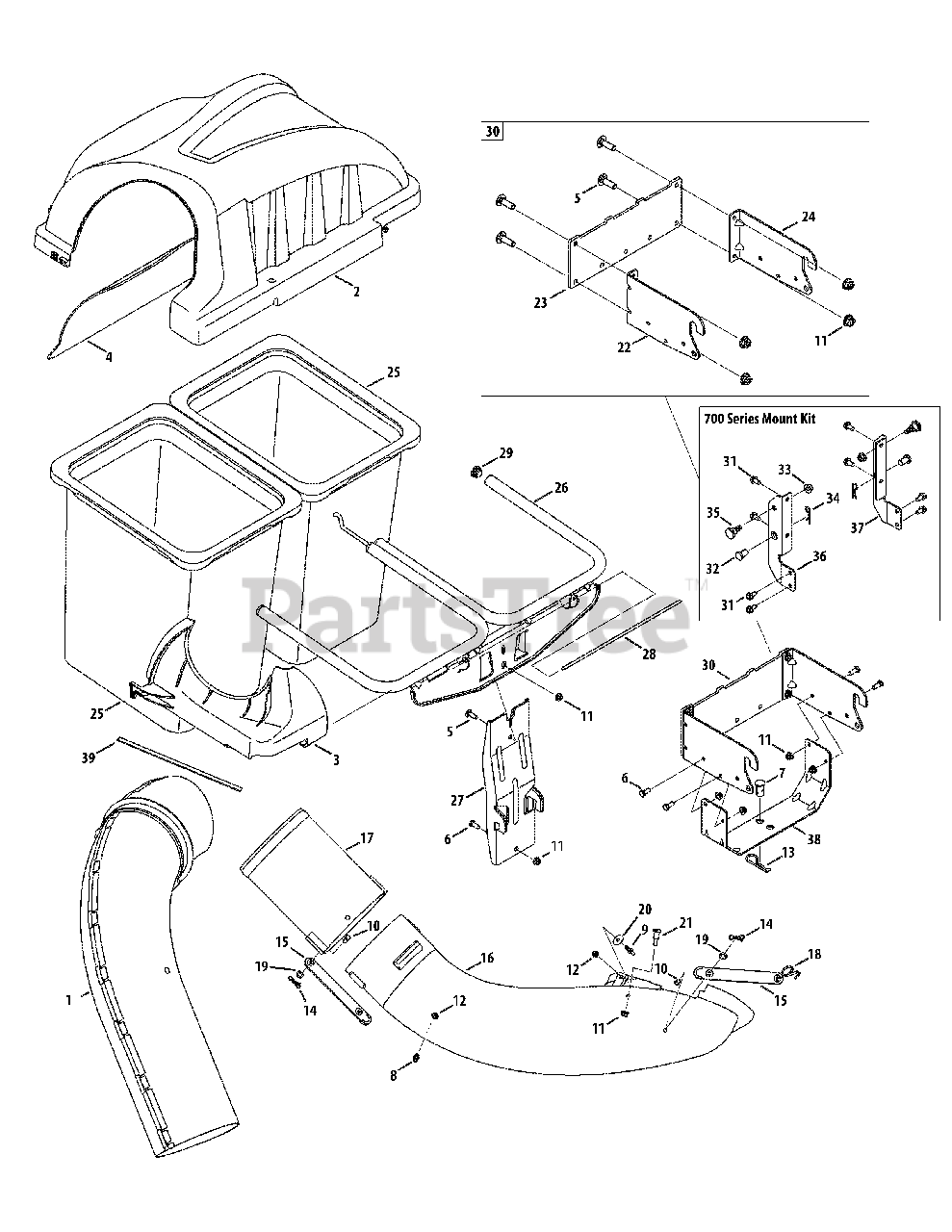

19A30003000 - MTD Twin Rear Bagger Assembly (2010) General Assembly Parts Diagram

Twin Rear Bagger Assembly

General Assembly Parts Diagram

  • Title

1

MTD 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$121.99

$

In Stock, only 1 left!

0

2

MTD 931-04292

Double Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

MTD 731-06497

Upper Chute Support

$36.99

$

In Stock, only 1 left!

0

4

MTD 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

5

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

8

MTD 911-04069

Grass-catcher Pin, 1/4-20

$8.49

$

In Stock, Qty 20+

0

9

MTD 711-05049

Attachment Pin, 1/4 x 0.66 Lg.

$8.99

$

In Stock, only 2 left!

0

10

MTD 711-05063

Clevis Pin, 5/16 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

14

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

15

MTD 723-04008A

Chute Strap, 6.00 Lg.

$9.99

$

In Stock, Qty 20+

0

16

MTD 731-06099B

Bagger Discharge Chute, Elbow

$109.99

$

In Stock, Qty 8

0

17

MTD 731-06610

Bagger Chute Adapter, 7 In.

$46.99

$

In Stock, only 1 left!

0

18

MTD 732-04510A

Torsion Spring Hook

$4.99

$

In Stock, Qty 9

0

19

MTD 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

20

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

21

MTD 738-0754

Shoulder Screw, .437 x .54

$4.49

$

In Stock, Qty 20+

0

22

N/A

Mounting Bracket, RH

Note: Order Ref No. 30

$

$

Not available

23

N/A

Universal Mounting Bracket

Note: Order Ref No. 30

$

$

Not available

24

N/A

Mounting Bracket, LH

Note: Order Ref No. 30

$

$

Not available

25

MTD 964-04096A

Grass-bag Assembly
(Superseded to 964-05104)

$95.99

$

In Stock, Qty 20+

0

26

MTD 683-04461-0637

Double Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

27

MTD 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

28

MTD 711-04988

Cover Hinge Pin

$12.99

$

In Stock, only 1 left!

0

29

MTD 735-0246A

End Plug

$5.99

$

In Stock, only 2 left!

0

30

MTD 689-00101

Mounting Bracket Kit (Incl. ref. 22, 23, 24)

$117.99

$

In Stock, only 1 left!

0

31

MTD 710-04484

Tap Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

32

MTD 711-0332

Clevis Pin, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

33

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

MTD 914-0145

Click Pin, .092 x 1.64 Lg.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

35

MTD 738-04267

Shoulder Screw, .625 x .412

$5.49

$

In Stock, only 2 left!

0

36

MTD 783-05889-0637

Mounting Bracket, RH
(Superseded to 783-05889A-0637)

$24.99

$

In Stock, only 1 left!

0

37

MTD 783-05890-0637

Mounting Bracket, LH
(Superseded to 783-05890A-0637)

$24.99

$

In Stock, only 2 left!

0

38

MTD 783-05887-0637

Universal Support Bracket

$53.99

$

In Stock, only 1 left!

0

39

MTD 721-04388

Self-Adhesive Foam Strip

$7.49

$

In Stock, Qty 7

0
