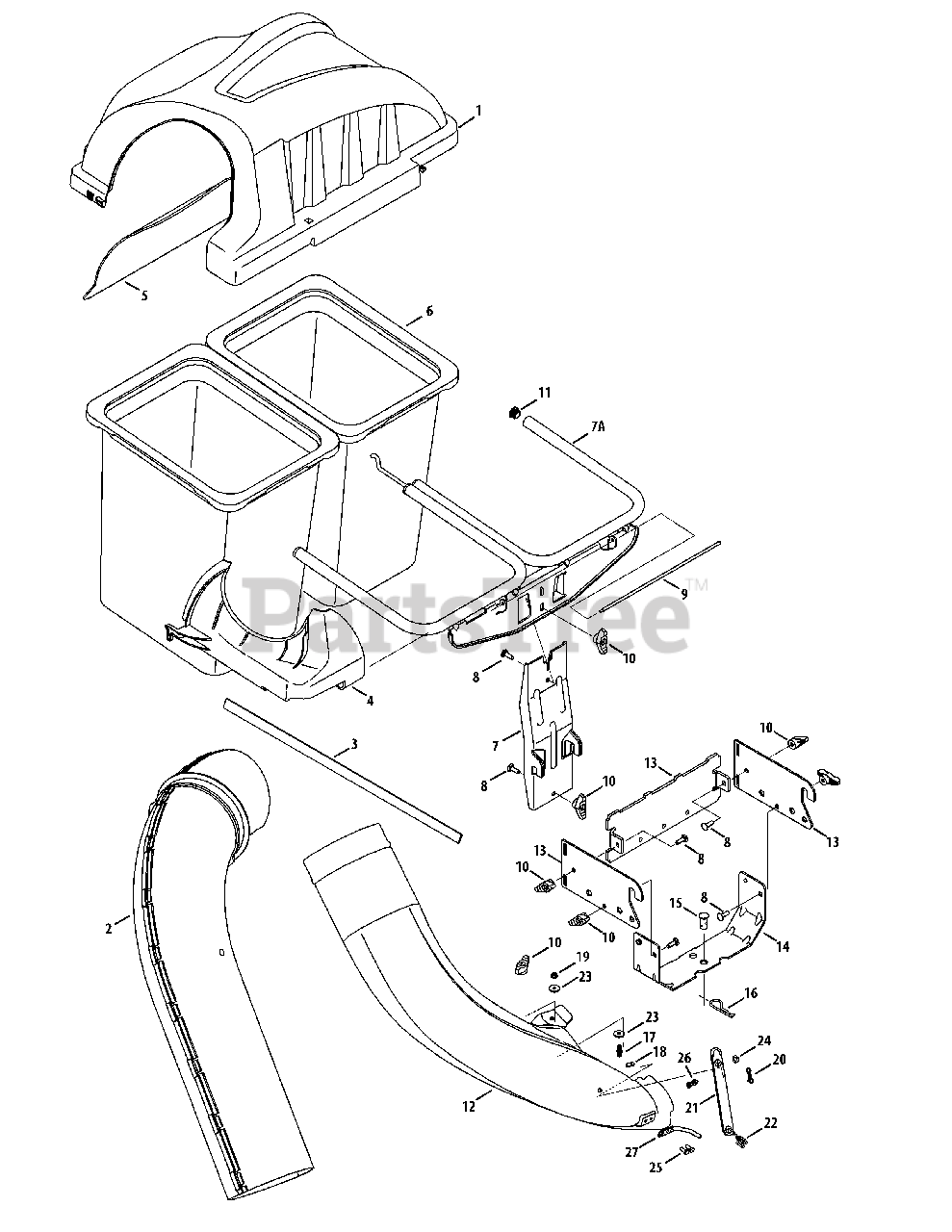

19A30003 (19A30003000) - Cub Cadet Twin Rear Bagger att General Assembly (2013 & after) Parts Diagram

Twin Rear Bagger

General Assembly (2013 & after) Parts Diagram

  • Title
1

Cub Cadet 931-04292

Double Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-04295A

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

3

Cub Cadet 721-04388

Self-Adhesive Foam Strip

$7.49

$

In Stock, Qty 7

0

4

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

6

Cub Cadet 964-04090A

Grass-bag Assembly

$95.99

$

In Stock, Qty 20+

0

7

Cub Cadet 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

7A

Cub Cadet 683-04461A-0637

Double Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

In Stock, only 1 left!

0

10

Cub Cadet 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

11

$5.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-09173

Discharge Chute Elbow
(Superseded to 731-09173A)

$107.99

$

In Stock, only 1 left!

0

13

Cub Cadet 689-00304

Hitch Bracket Assembly
(Superseded to 689-00304A)

$

$

Not available

14

Cub Cadet 783-08129-0637

Universal Bracket Support

$53.99

$

In Stock, only 1 left!

0

15

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

16

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

17

Cub Cadet 711-05049

Attachment Pin

$8.99

$

In Stock, only 2 left!

0

18

Cub Cadet 711-05063

Clevis Pin, 5/16 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

21

Cub Cadet 723-04008A

Chute Strap, 6.00 Lg.

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-04510A

Torsion Spring Hook

$4.99

$

In Stock, Qty 9

0

23

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet 736-0204

Flat Washer, .344 x .620 x .033

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0751

Screw 1/4-20 X .62

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 747-06043

Chute Rod, Lower

$8.49

$

In Stock, Qty 7

0

28

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0
