19A30003 (19A30003000) - Cub Cadet Twin Rear Bagger att General Assembly (2012 & before) Parts Diagram

Twin Rear Bagger

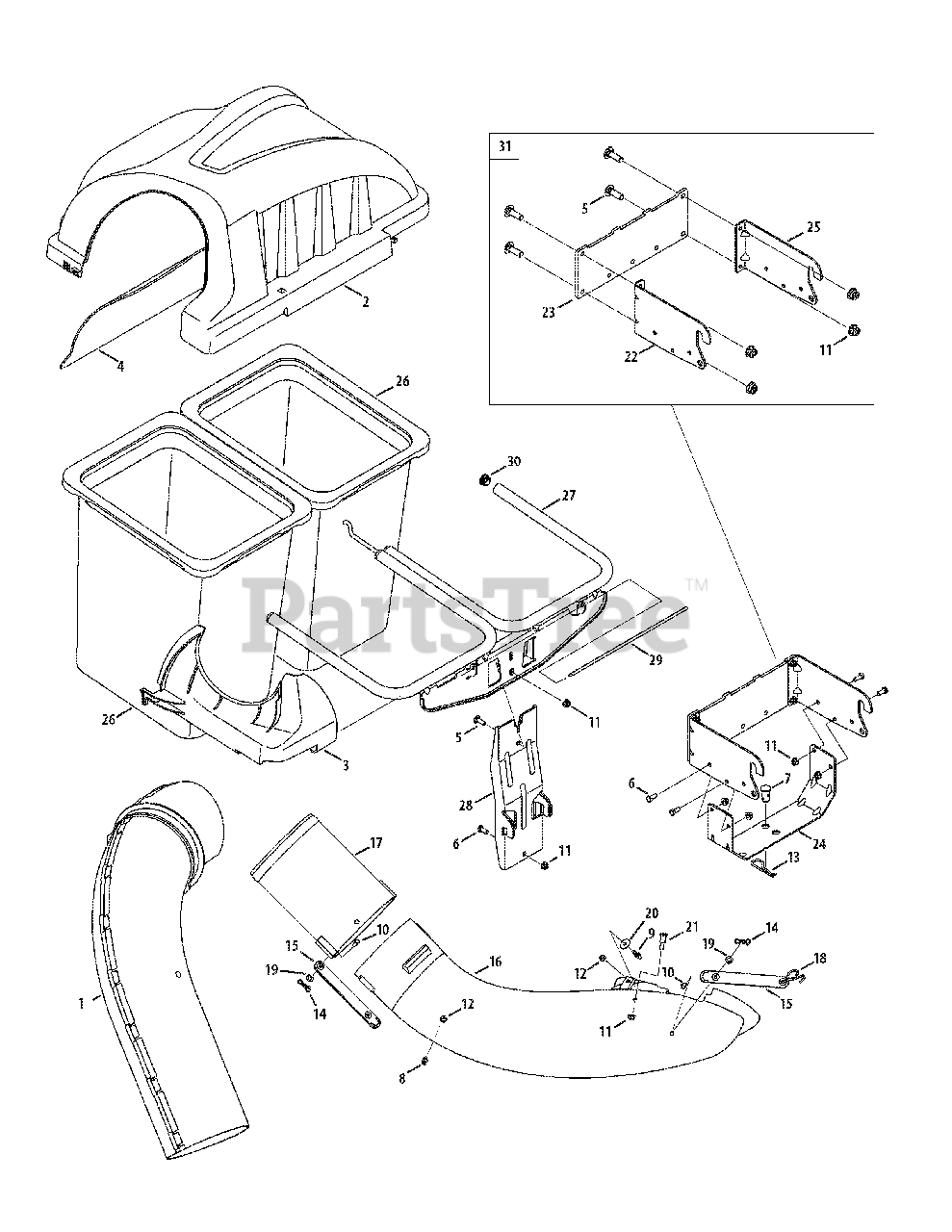

General Assembly (2012 & before) Parts Diagram

  • Title

1

Cub Cadet 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$121.99

$

In Stock, only 1 left!

0

2

Cub Cadet 931-04292

Double Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

8

Cub Cadet 911-04069

Grass-catcher Pin, 1/4-20

$8.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-05049

Attachment Pin, 1/4 x 0.66 Lg.

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 711-05063

Clevis Pin, 5/16 x .75 Lg.

$3.99

$

In Stock, only 4 left!

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet 723-04008A

Chute Strap, 6.00 Lg.

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-06099B

Bagger Discharge Chute, Elbow

$109.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-06610

Bagger Chute Adapter, 7 In.

$46.99

$

In Stock, only 2 left!

0

18

Cub Cadet 732-04510A

Torsion Spring Hook

$4.99

$

In Stock, Qty 11

0

19

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 8

0

20

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 738-0754

Shoulder Screw, .437 x .54

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet N/A

Mounting Bracket, RH

Note: See ref 31

$

$

Currently unavailable

23

Cub Cadet N/A

Universal Mounting Bracket

Note: See ref 31

$

$

Currently unavailable

24

Cub Cadet 783-05887-0637

Universal Bracket Support

$53.99

$

In Stock, only 1 left!

0

25

Cub Cadet N/A

Mounting Bracket, LH

Note: See ref 31

$

$

Currently unavailable

26

Cub Cadet 964-04096A

Grass-bag Assembly
(Superseded to 964-05104)

$95.99

$

In Stock, Qty 20+

0

27

Cub Cadet 683-04461A-0637

Double Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

31

Cub Cadet 689-00101

Mounting Bracket Kit (Incl. ref. 22, 23, 25)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet 721-04388

Self-Adhesive Foam Strip

Note: (Not shown)

$7.49

$

In Stock, Qty 10

0
