19A20003OEM - Troy-Bilt 28" Lawn Striping Kit General Assembly Parts Diagram

28" Lawn Striping Kit

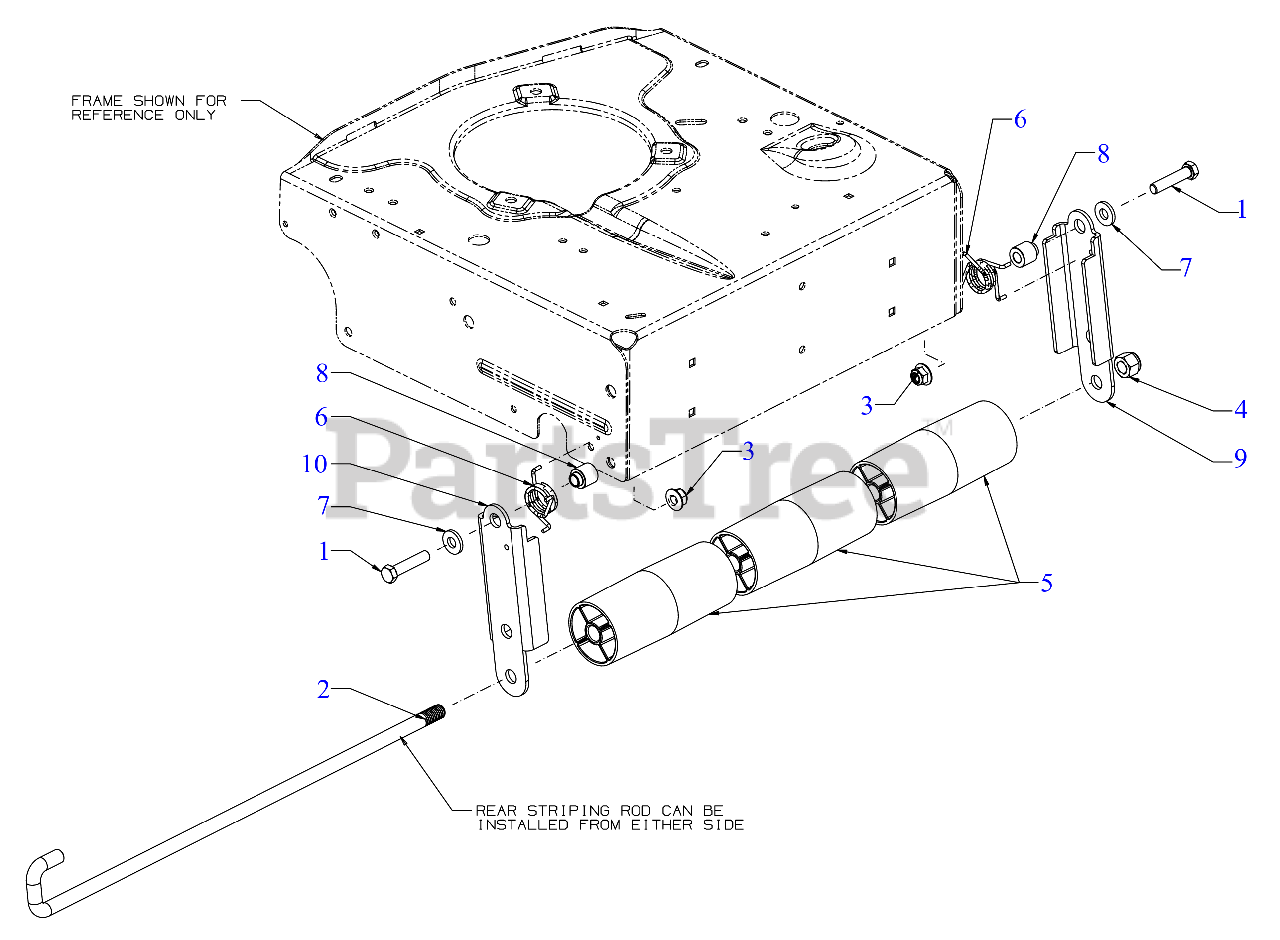

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 711-06277A

J HOOK

$28.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 732-05456

TORSION SPRING

$6.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 7

0

8

Troy-Bilt 750-06036A

CASTER HUB

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 787-03601A

ROLLER BRACKET (RH)

Variations

Troy-Bilt 787-03601A-0637

ROLLER BRACKET - R - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-03601A-0691

ROLLER BRACKET - R - BLACK JACK (0691)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 787-03645A

ROLLER BRACKET (LH)

Variations

Troy-Bilt 787-03645A-0637

ROLLER BRACKET - L - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-03645A-0691

ROLLER BRACKET - L - BLACK JACK (0691)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0
