19A20001038 - DeWALT 33" Grass Bag Kit General Assembly Parts Diagram

33" Grass Bag Kit

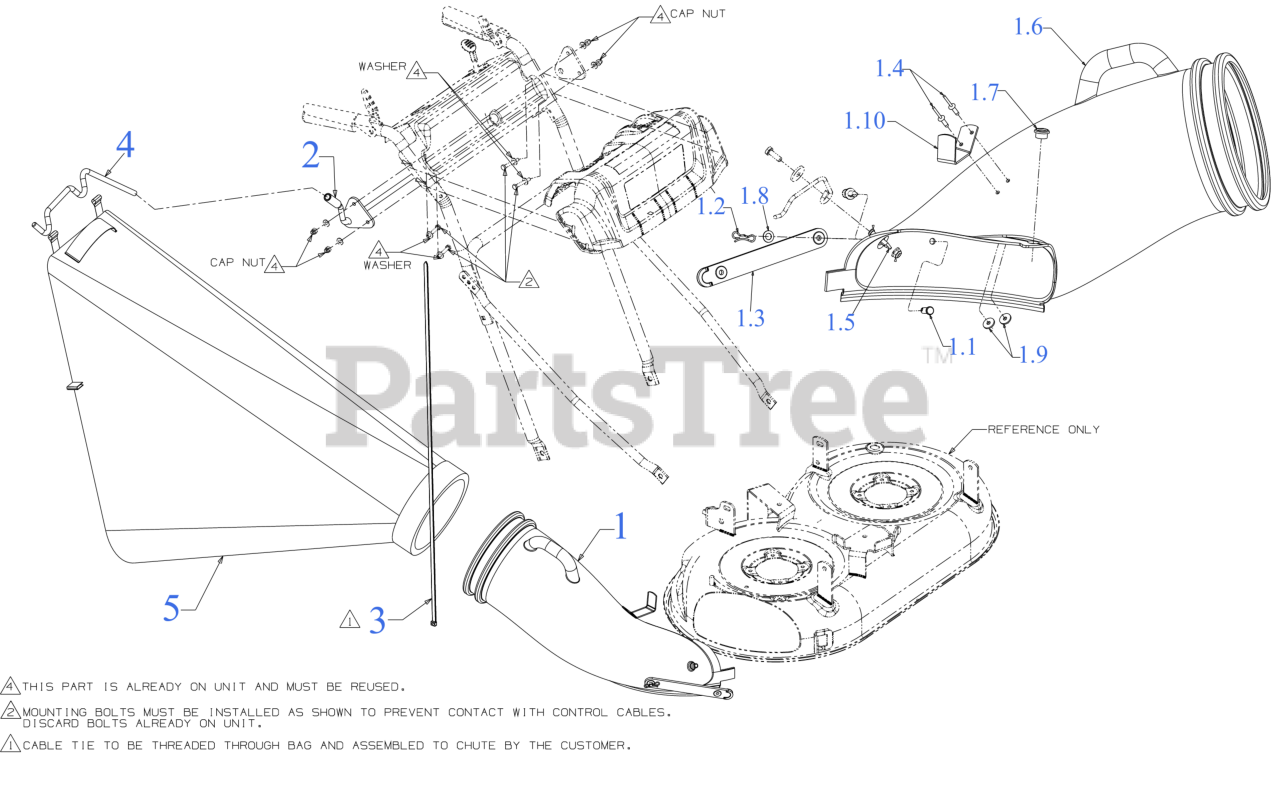

General Assembly Parts Diagram

  • Title

1

MTD 753-06127

SERVICE REPLACEMENT KITLAC

$190.99

$

Usually ships in 3-6 days

0

1.1

MTD 711-05063

CLEVIS PIN 5/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

1.2

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

1.3

MTD 723-04008A

CHUTE STRAP

$9.99

$

In Stock, Qty 20+

0

1.4

MTD 728-04021

POP RIVET .187 DIA

$3.99

$

In Stock, only 1 left!

0

1.5

MTD 728-04042

PLASTIC RIVET .250

$3.99

$

Usually ships in 3-6 days

0

1.6

MTD NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

1.7

MTD 731-1706

ROD CONTROL BUSHING

$32.99

$

Usually ships in 3-6 days

0

1.8

MTD 736-0264

FLAT WASHER

Note: (4/1/23 & After)

$6.99

$

In Stock, only 1 left!

0

1.8

MTD 736-0204

FLAT WASHER .344 ID x .62 OD x .033

Note: (4/1/23 & Before)

$4.49

$

In Stock, Qty 8

0

1.9

MTD 736-0400

FLAT WASHER .194x.620x.063

$5.49

$

In Stock, Qty 14

0

1.10

MTD 787-01533-0637

ELBOW HOLDER BRACKET

$18.99

$

In Stock, only 1 left!

0

2

MTD 647-04110-0637

HOLDER ROD ASSEMBLY (POWDER BLACK)

$126.99

$

Usually ships in 3-6 days

0

3

MTD 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

4

MTD 747-04671

GRASSBAG HANGER ROD

$29.99

$

In Stock, only 2 left!

0

5

MTD 764-05530

GRASSBAG (2.6 BUSH)

$77.99

$

Usually ships in 3-6 days

0
