19A20001 (19A20001100) - Cub Cadet 33" Grass Bag Kit (2021) General Assembly Parts Diagram

33" Grass Bag Kit

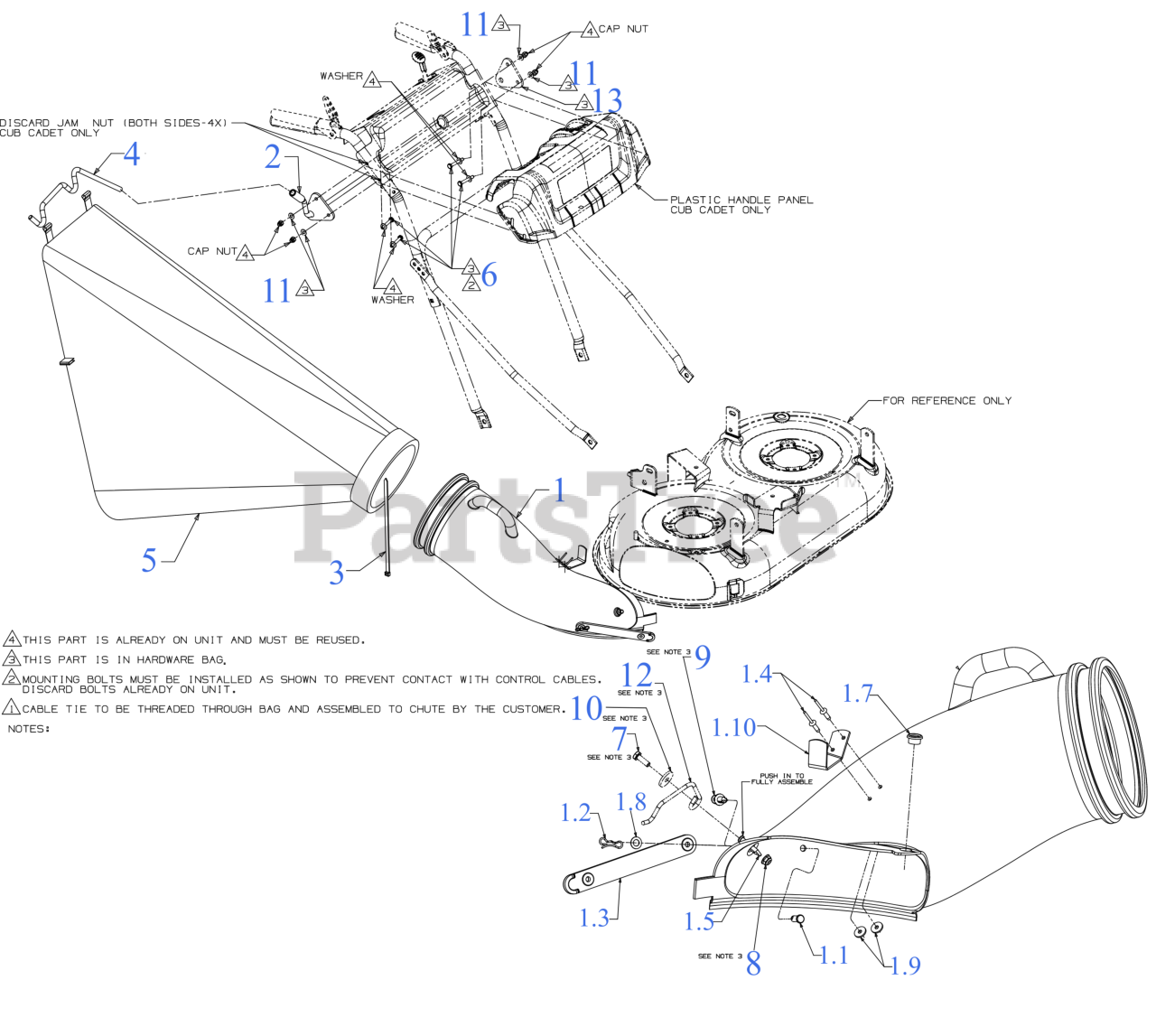

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06127

SERVICE REPLACEMENT KITLAC

$190.99

$

Usually ships in 3-6 days

0

1.1

Cub Cadet 711-05063

CLEVIS PIN 5/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

1.2

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

1.3

Cub Cadet 723-04008A

CHUTE STRAP

$9.99

$

In Stock, Qty 20+

0

1.4

Cub Cadet 728-04021

POP RIVET .187 DIA

$3.99

$

In Stock, only 1 left!

0

1.5

Cub Cadet 728-04042

PLASTIC RIVET .250

$3.99

$

Usually ships in 3-6 days

0

1.7

Cub Cadet 731-1706

ROD CONTROL BUSHING

$32.99

$

Usually ships in 3-6 days

0

1.8

Cub Cadet 736-0204

FLAT WASHER .344 ID x .62 OD x .033

$4.49

$

In Stock, Qty 8

0

1.9

Cub Cadet 936-0400

FLAT WASHER .192X.625X.057
(Superseded to 736-0400)

$

$

Not available

1.10

Cub Cadet 787-01533-0637

ELBOW HOLDER BRACKET

$18.99

$

In Stock, only 1 left!

0

2

Cub Cadet 647-04110-0637

HOLDER ROD ASSEMBLY (POWDER BLACK)

$126.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

4

Cub Cadet 747-04671

GRASSBAG HANGER ROD

$29.99

$

In Stock, only 2 left!

0

5

Cub Cadet 753-06118

GRASSBAG-2.6 BUSHE

$102.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet 736-0176

FLAT WASHER

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 736-0463

FLAT WASHER

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 747-04670-0637

ELBOW CHUTE LATCH (POWDER BLACK)

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 787-01569-0637

ROD HOLDER BRACKET

$28.99

$

Usually ships in 3-6 days

0
