19990S - MTD 45" Snow Thrower Attachment (1985) 45" Parts Diagram

45" Snow Thrower Attachment

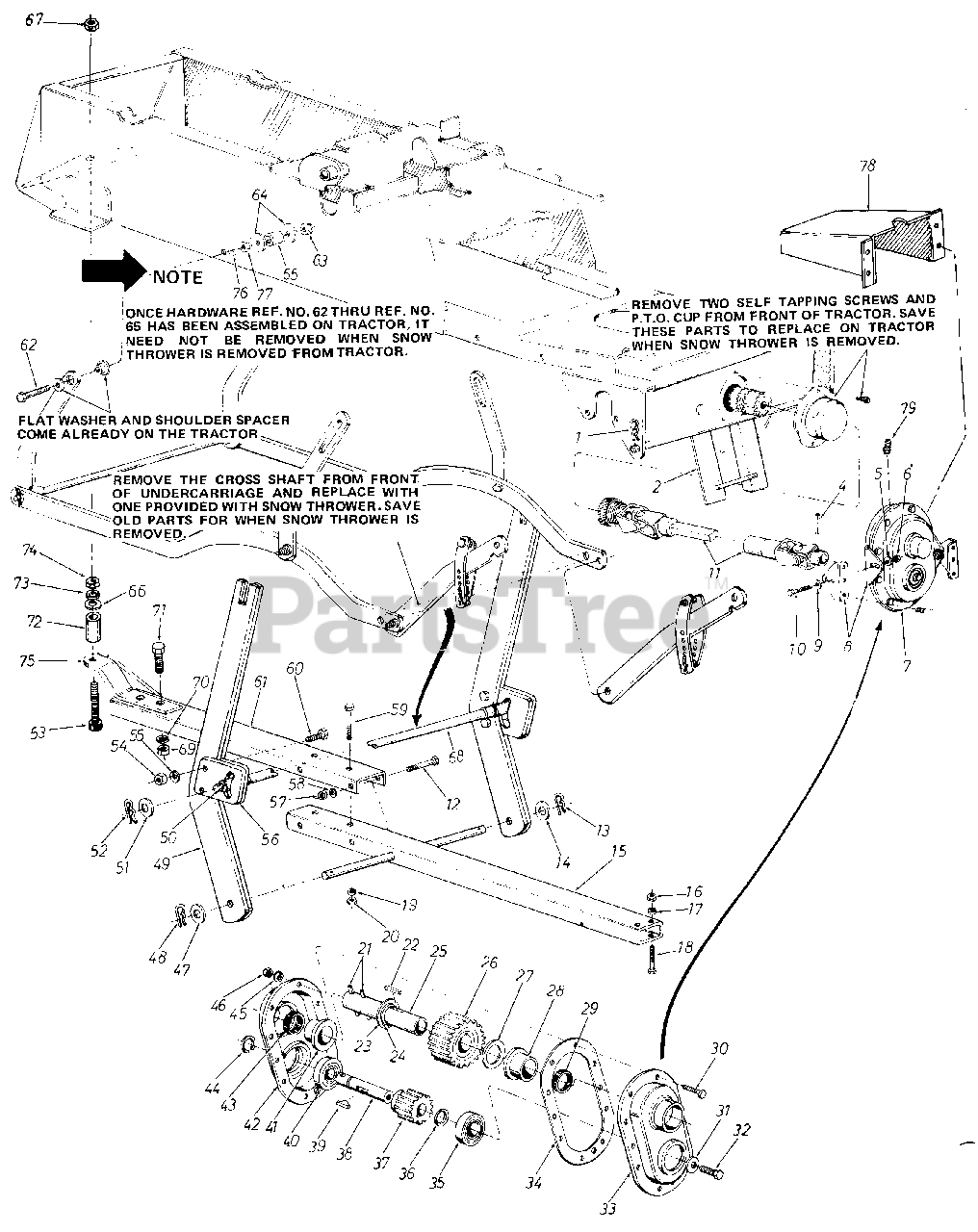

45" Parts Diagram

  • Title

1

MTD 714-0117

Intern. Cotter Pin 3/4" Dia.

$4.49

$

In Stock, Qty 16

0

2

MTD 05613

Guide Bracket Ass'y.
(Superseded to 05707)

$

$

Not available

4

MTD 715-0121

Spring Pin Spirol 1/4" Dia. x Lg.

$6.99

$

In Stock, Qty 8

0

5

MTD 736-0242

BellevilleWash. .341" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 717-0370

Gear Box Ass'y. Comp.

$

$

Currently unavailable

8

MTD 05607

Gear Box Support Brk't.

$

$

Not available

9

MTD 736-0242

Belleville Wash. .341" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0118

Hex Scr. 5/ 1 6-1 8 x . 75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

11

MTD 717-0366

Universal Drive Shaft Ass'y.

$

$

Not available

12

MTD 710-0620

Hex Scr.3/8-24 x 4.50" Lg.*

$11.99

$

In Stock, only 2 left!

0

13

MTD 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 6

0

14

MTD 736-0156

Fl.-Wash. .62" I.D. x 1.12" O.D .

$4.49

$

In Stock, Qty 12

0

15

MTD 05670

Lift Shaft Ass'y.

$

$

Not available

16

MTD 712-0116

Hex Ins. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

17

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.*

$

$

Not available

19

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0116

Hex lns.JamL.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

21

MTD 715-0118

SpringPinSpirol5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

22

MTD 714-0128

Sq. Key 1/4" x 1/4" x 1.00" Lg.

$4.99

$

In Stock, Qty 6

0

23

MTD 736-0246

Fl.-Wash. 1.31" I.D. x 2.00" O.D. x .060

$

$

Not available

24

MTD 716-0116

Snap Ring for 1.25" Dia. Shaft

$4.99

$

Usually ships in 3-6 days

0

25

MTD 738-0362

Gear Shaft

$

$

Not available

26

MTD 717-0362

28 Teeth Spur Gear
(Superseded to 917-0362)

$

$

Not available

27

MTD 736-0246

Fl.-Wash. 1.31" I.D. x 2.00 O.D. x .060

$

$

Not available

28

MTD 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

29

MTD 721-0117

Oil Seal 1.25" I.D. x 1.75" O.D. O.D. x .26

$

$

Not available

30

MTD 710-0281

Hex Scr. 1/4-28 x .88" Lg.

$6.49

$

Usually ships in 3-6 days

0

31

MTD 736-0247

Fl.-Wash. .40 I.D. x 1.25" O.D. x . 1 60

$9.49

$

In Stock, Qty 12

0

32

MTD 710-0591

Hex L.-Scr. 3/8-24 x 1.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

33

MTD 717-0359

Complete Gear Housing Half-L.H.

$

$

Not available

34

MTD 721-0158

Gasket

$

$

Not available

35

MTD 741-0131

Ball Bearing 1.00" I.D. x 2.00" O.D.
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

36

MTD 736-0259

Fl.-Wash. 1.03" I.D. x 1.63" x .090
(Superseded to 936-0259)

$

$

Not available

37

MTD 717-0361

15 Teeth Spur Gear

$

$

Not available

38

UNKNOWN

$

$

Not available

39

MTD 714-0135

Woodruff Key 1/4" x 3/4" D ia.

$4.99

$

In Stock, only 2 left!

0

40

MTD 741-0131

Ball Bearing 1.00" I.D. x 2.00" O.D .
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

41

MTD 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

42

MTD 717-0360

Complete Gear Housing Half-R.H.

$

$

Not available

43

MTD 721-0117

OilSeal 1.25" I.D. x 1.75" O.D. x .26

$

$

Not available

44

MTD 716-0129

Snap Ring for 1.00" Dia. Shaft

$

$

Currently unavailable

45

MTD 736-0175

SpringWash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

46

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

47

MTD 736-0156

Fl.-Wash. .62" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

48

MTD 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 6

0

49

MTD 13780

Lift Bar

Variations

MTD 13780-0637

No Longer Available BAR-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 750-0444

Spacer

$

$

Not available

51

MTD 736-0156

Fl.-Wash. .62" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

52

MTD 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 6

0

53

MTD 710-0763

Hex Bolt 5/8-18 x 4.00" Lg.
(Superseded to 910-0763)

$

$

Not available

54

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 13781

Lift Bar Cam

Variations

MTD 13781-0637

No Longer Available CAM-LIFT B - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 712-0116

Hex Ins. L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

58

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

59

MTD 710-0629

Hex Scr. 3/8-24 x 2.75"

$

$

Not available

60

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

61

MTD 05611

Lift Bracket

$

$

Not available

62

MTD 710-0369

Hex Scr. 3/8-24 x 2.50"

$6.49

$

Usually ships in 3-6 days

0

63

MTD 712-0116

Hex Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

64

MTD 736-0258

Fl.-Wash. ..375 I.D. x 1.00" O.D. x . 1 35"

$4.49

$

In Stock, only 4 left!

0

65

MTD 750-0497

Spacer .275 1. D . x .625 O.D. x .440

$10.99

$

Usually ships in 3-6 days

0

66

MTD 736-0237

Fl.-Wash. .66" I.D. x 1.25" O.D. x . l 00

$4.49

$

In Stock, Qty 20+

0

67

MTD 712-0221

Hex Jam L.-Nut 5/8-18 Thd.

$

$

Not available

68

MTD 13789

Cross Shaft Ass'y.

$

$

Not available

69

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0921

L.-Wash. 1/2" Scr.*

$4.49

$

In Stock, Qty 6

0

71

MTD 710-0474

Hex Scr. 1/2-13 x 1.25"

$

$

Not available

72

MTD 750-0462

Bushing

$

$

Not available

73

MTD 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, Qty 11

0

74

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

75

MTD 05646

Tongue Ass'y.
(Superseded to 05646-0637)

Variations

MTD 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

77

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

78

MTD 784-5093

Drive Shaft Cover

$

$

Not available

79

MTD 746-0146

Grease Fitting

$

$

Currently unavailable
