19987S - MTD 40" Tiller Attachment (1985) 40" Parts Diagram

40" Tiller Attachment

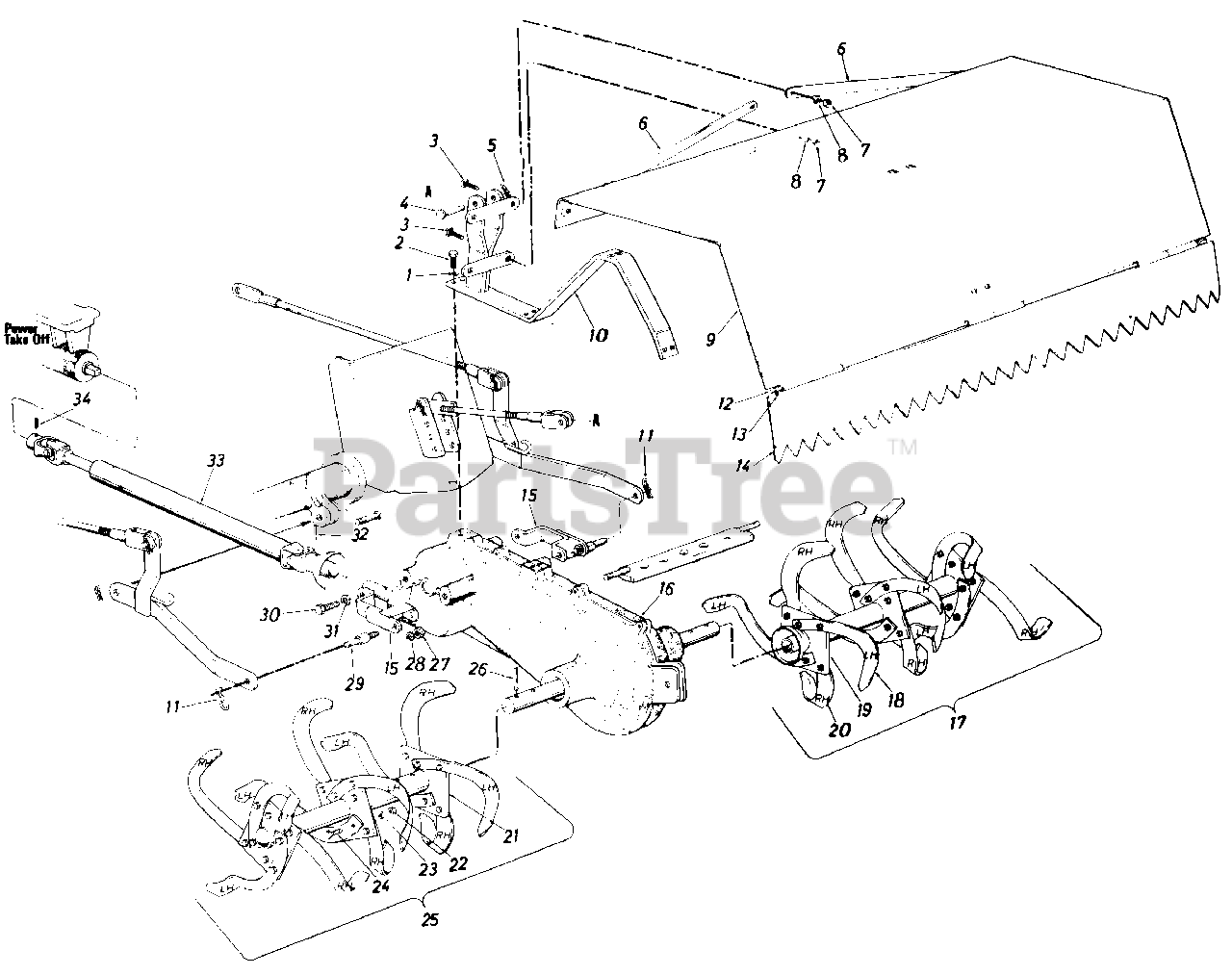

40" Parts Diagram

  • Title

1

MTD 736-0921

L.-Wash. 1/2" Scr.*

$4.49

$

In Stock, Qty 6

0

2

MTD 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.*

$

$

Not available

3

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-0299

Clevis Pin 5/8" Dia. 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

5

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

6

MTD 04784

Tiller Cover Strap

$

$

Currently unavailable

7

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L. Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 04780

Tiller Cover Ass'y.

$

$

Currently unavailable

10

MTD 10981

Cover Brk't. Ass'y.

$

$

Currently unavailable

11

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

12

MTD 747-0251

Cover Flap Rod

$

$

Currently unavailable

13

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

14

MTD 04782

Cover Flap Ass'y.

$

$

Currently unavailable

15

MTD 10982

Tiller Pivot Brk't. Ass'y.

$

$

Currently unavailable

16

MTD 717-0386

Gear Box Ass'y. Comp.

$

$

Currently unavailable

17

MTD 04786

Right Hand Tine Ass'y. Comp.

$

$

Currently unavailable

18

MTD 742-0175

14" Tine L.H.
(Superseded to 742-0243-0637)

$

$

Not available

19

MTD 04788

Mounting Adapter R.H.

$

$

Currently unavailable

20

MTD 742-0174

14" Tine R.H.
(Superseded to 742-0244-0637)

$29.99

$

Usually ships in 3-6 days

0

21

MTD 04749

Mounting Adapter L.H.

$

$

Currently unavailable

22

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

23

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0191

Hex Scr. 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

25

MTD 04787

Left Hand Tine Ass'y. Com

$

$

Currently unavailable

26

MTD 715-0125

Spring Pin Spirol 3/8" Dia. x 2.00" Lg.
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

27

MTD 712-0923

Hex Cent. L.-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

28

MTD 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, Qty 11

0

29

MTD 711-0497

Link Clevis Pin

$

$

Not available

30

MTD 710-0367

Hex Scr. 5/8-11 x 1.50" Lg.*

$

$

Currently unavailable

31

MTD 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, Qty 11

0

32

MTD 715-0118

Spring Pin Spirol 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

33

MTD 717-0184

Universal Drive Shaft Ass'y.

Note: (987 only)

$

$

Currently unavailable

MTD 717-0149

Universal Drive Shaft Ass'y.

Note: (989 only)

$

$

Currently unavailable

34

MTD 710-0357

Sq. Hd. Set Scr. 3/8-16 x .50" Lg. Cup

$

$

Not available

MTD 732-0246

Booster Springs

Note: (Not Shown)

$

$

Not available
