19956S - MTD Tiller Attachment (1985) Parts Parts Diagram

Tiller Attachment

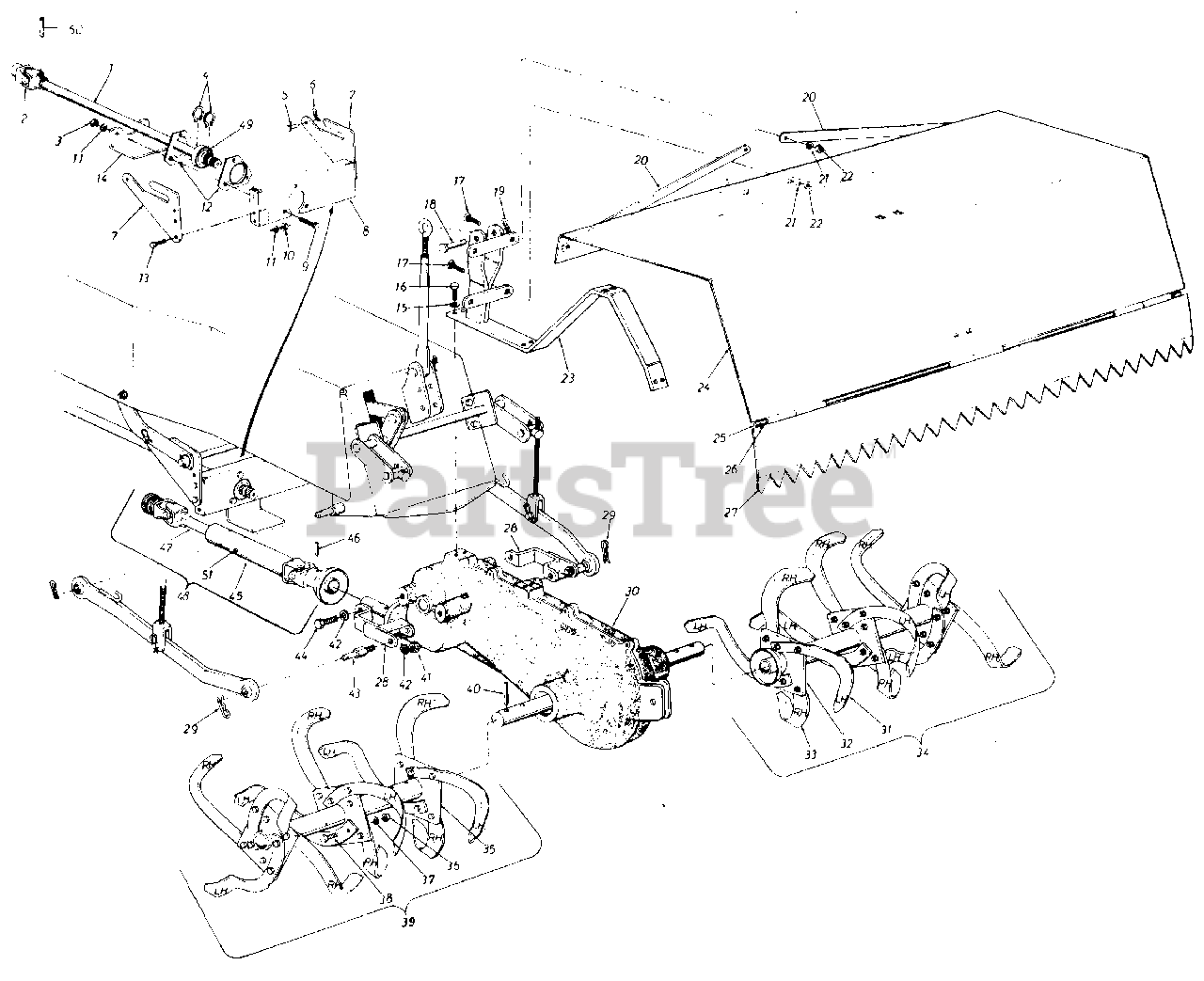

Parts Parts Diagram

  • Title

1

MTD 717-0372

Universal Drive Shaft Ass'y.

$

$

Currently unavailable

MTD 738-0368

Universal Drive Shaft

$

$

Currently unavailable

2

MTD 717-0373

Universal Joint

$

$

Currently unavailable

3

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

4

MTD 716-0102

Retaining Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

5

MTD 711-0648

Clevis Pin

$

$

Not available

6

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

7

MTD 13167

Hanger Bracket

$

$

Currently unavailable

8

MTD 13166

Drive Shaft Brg. Support Brk't

$

$

Currently unavailable

9

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0119

L. Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 741-0243

Flangette-1" Dia. Shaft

$

$

Not available

13

MTD 710-0157

Hex Scr. 5/16-24 x .75" Lg.*

$4.49

$

In Stock, Qty 15

0

14

MTD 13208

Bearing Brk't. Guard

$

$

Currently unavailable

15

MTD 736-0921

L.-Wash. 1/2" Scr.*

$4.49

$

In Stock, Qty 6

0

16

MTD 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.*

$

$

Not available

17

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00 Lg.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 711-0299

Clevis Pin 5/8" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

19

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

20

MTD 04784

Tiller Cover Strap

$

$

Currently unavailable

21

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 10981

Cover Brk't. Ass'y.

$

$

Currently unavailable

24

MTD 04780

Tiller Cover Ass'y .

$

$

Currently unavailable

25

MTD 747-0251

Cover Flap Rod

$

$

Currently unavailable

26

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00 Lg.*

$3.99

$

In Stock, only 2 left!

0

27

MTD 04782

Cover Flap Ass'y.

$

$

Currently unavailable

28

MTD 10982

Tiller Pivot Brk't. Ass'y.

$

$

Currently unavailable

29

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

30

MTD 717-0375

Gear Box Ass'y.-Comp.

$

$

Currently unavailable

31

MTD 742-0175

14" Tine-L.H.
(Superseded to 742-0243-0637)

$

$

Not available

32

MTD 04788

Mounting Adapter-R.H.

$

$

Currently unavailable

33

MTD 742-0174

14" Tine-R.H.
(Superseded to 742-0244-0637)

$29.99

$

Usually ships in 3-6 days

0

34

MTD 04786

Right Hand Tine Ass'y.-Comp.

$

$

Currently unavailable

35

MTD 04745

Mounting Adapter L.H.

$

$

Currently unavailable

36

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

37

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

38

MTD 710-0191

Hex Scr. 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

39

MTD 04787

Left Hand Tine Ass'y.-Comp.

$

$

Currently unavailable

40

MTD 715-0125

Spring Pin Spirol 3/8" Dia. x 2.00" Lg.
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

41

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

42

MTD 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, Qty 11

0

43

MTD 711-0497

Link Clevis Pin

$

$

Not available

44

MTD 710-0367

Hex Scr. 5/8-11 x 1.50" Lg.*

$

$

Currently unavailable

45

MTD 717-0443

Universal Drive Shaft-Female Ass'y.

$

$

Currently unavailable

46

MTD 715-0118

Spring Pin Spirol 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

47

MTD 717-0442

Universal Drive Shaft-Male Ass'y.

$

$

Currently unavailable

48

MTD 717-0371

Universal Drive Shaft Ass'y.

$

$

Currently unavailable

49

MTD 741-0303

Ball Bearing 1.0" I.D.

$114.99

$

In Stock, only 2 left!

0

50

MTD 715-0113

Spring Pin Spiral 5/16" x 2.50" Lg.

$

$

Not available

51

MTD 715-0108

Spring Pin Spiral 1/4" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 15

0
