19955S - MTD Snow Thrower Attachment (1985) Parts02 Parts Diagram

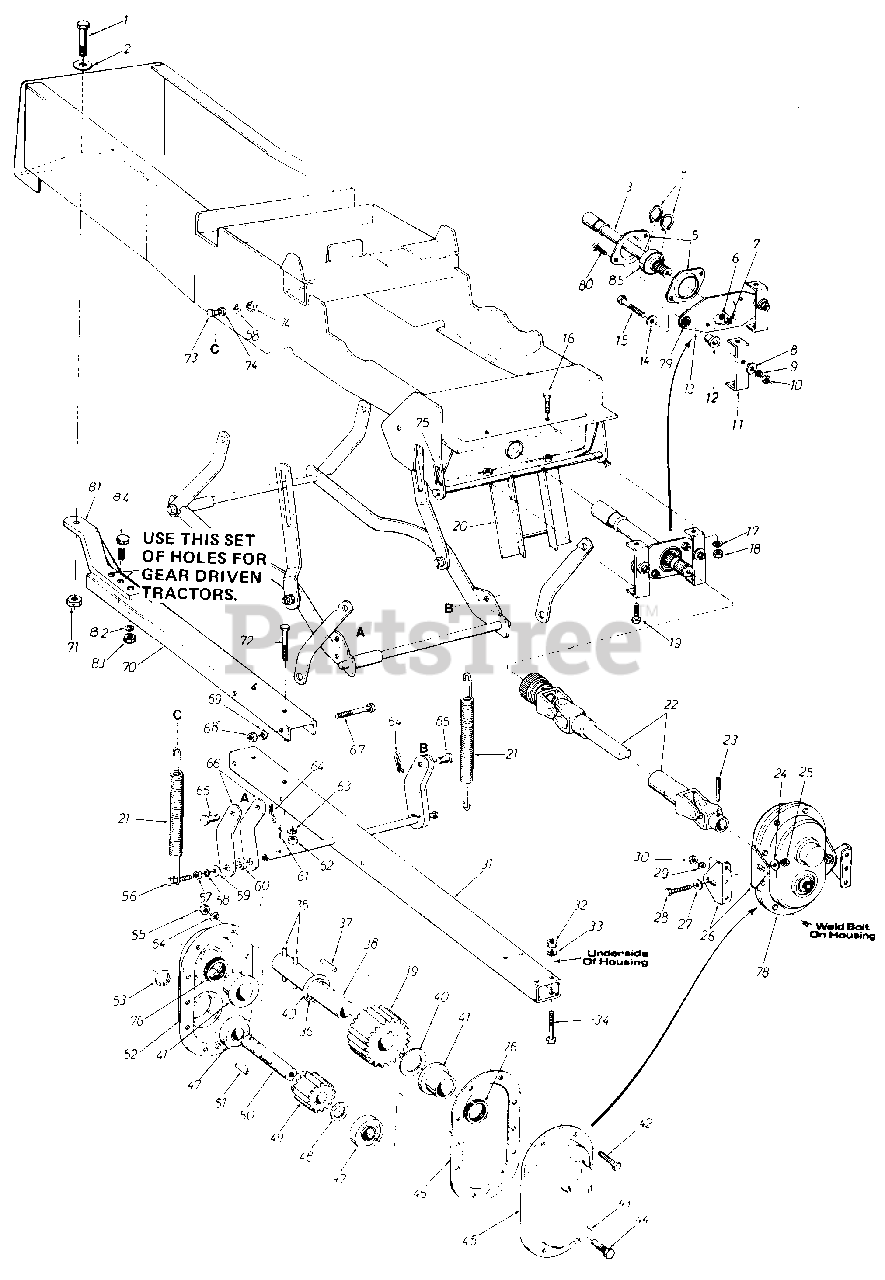

Snow Thrower Attachment

Parts02 Parts Diagram

  • Title

1

MTD 710-0312

Hex Scr. 5/8-18 x 1.31" Lg.

$

$

Not available

2

MTD 736-0237

Fl.-Wash. .66" I.D. x 1.25" O.D. x .100

$4.49

$

In Stock, Qty 20+

0

3

MTD 13180

P.T.O. Shaft Extension Ass'y.

$

$

Currently unavailable

4

MTD 716-0102

Retaining Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

5

MTD 741-0242

Flangette Bearing

$11.99

$

In Stock, only 4 left!

0

6

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0258

Fl.-Wash 3/8" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 4 left!

0

9

MTD 736-0169

L Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

11

MTD 13197

P.T.O. Bearing Retainer Brk't.

$

$

Currently unavailable

12

MTD 748-0241

Shoulder Spacer

$

$

Not available

13

MTD 13161

P.T.O. Bearing Retainer Plate

$

$

Currently unavailable

14

MTD 736-0258

Fl.-Wash. 3/8" I.D. x 1.00 O.D.

$4.49

$

In Stock, only 4 left!

0

15

MTD 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

16

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 12

0

17

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

19

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 12

0

20

MTD 05613

Guide Bracket Ass'y.
(Superseded to 05707)

$

$

Not available

21

MTD 732-0291

Helper Spring .94 O.D. x 7.38" Lg.

$

$

Not available

22

MTD 717-0366

Universal Drive Shaft Ass'y.

$

$

Not available

23

MTD 715-0113

Spring Pin Spirol 5/16" x 2.50" Lg.

$

$

Not available

24

MTD 736-0242

Belleville Wash. .341 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0267

Hex Nut 5/16-8 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 05607

Gear Box Support Bracket

$

$

Not available

27

MTD 736-0242

Belleville Wash. .34 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0118

Hex Scr. 5/16-18 x .75" L.g*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 05612

Lift Shaft Ass'y.

$

$

Currently unavailable

32

MTD 712-0116

Hex Ins.Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

33

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.*

$

$

Not available

35

MTD 715-0118

Spring Pin Spirol 5/16" Dia. 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

36

MTD 716-0116

Snap Ring for 1.25" Dia. Shaft

$4.99

$

Usually ships in 3-6 days

0

37

MTD 714-0128

Sq. Key 1/4" x 1.00" Lg.

$4.99

$

In Stock, Qty 6

0

38

MTD 738-0362

Gear Shaft

$

$

Not available

39

MTD 717-0362

28 Teeth Spur Gear
(Superseded to 917-0362)

$

$

Not available

40

MTD 736-0246

Fl.-Wash. 1.31" I.D x 2.00" O.D. x .060

$

$

Not available

41

MTD 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

42

MTD 710-0281

Hex Screw 1/4 28 x .88 " Lg

$6.49

$

Usually ships in 3-6 days

0

43

MTD 736-0247

Fl. Wash. .40" I.D. x 1.25" O.D. x .160

$9.49

$

In Stock, Qty 12

0

44

MTD 710-0591

Hex L.-Scr. 3/8-24 x 1.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

45

MTD 717-0359

Complete Gear Housing Half-L.H.

$

$

Not available

46

MTD 721-0158

Gasket

$

$

Not available

47

MTD 741-0131

Ball Bearing 1.00" I.D. x 2.00" O.D.
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

48

MTD 736-0259

Fl.-Wash. 1.03" I.D. x 1.63" O.D. x .090
(Superseded to 936-0259)

$

$

Not available

49

MTD 717-0361

15 Teeth Spur Gear

$

$

Not available

50

MTD 738-0361

Input Shaft

$

$

Not available

51

MTD 714-0135

Woodruff Key 1/4 x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

52

MTD 717-0360

Complete Gear Housing Half-R.H.

$

$

Not available

53

MTD 716-0129

Snap Ring for 1.00" Dia. Shaft

$

$

Currently unavailable

54

MTD 736-0175

L.-Wash. 1/4" Scr.*
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

55

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

56

MTD 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

57

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

MTD 736-0231

Fl.-Wash. .344 I.D. x 1.12 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

60

MTD 750-0142

Spacer .81" I.D. x 1.00" O.D. x .31
(Superseded to 950-0142)

$

$

Not available

61

MTD 714-0121

Cotter Pin.6/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

62

MTD 712-0116

Hex Ins. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

63

MTD 736-0169

L.-Wash. 3/8 Scr.*

$3.99

$

In Stock, Qty 20+

0

64

MTD 714-0101

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

65

MTD 711-0310

Clevis Pin .500" Dia.

$10.99

$

Usually ships in 3-6 days

0

66

MTD 05599

Lift Bracket

$

$

Currently unavailable

67

MTD 710-0620

Hex Scr. 3/8-24 x 4.50" Lg.*

$11.99

$

In Stock, only 2 left!

0

68

MTD 712-0116

Hex Ins.Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

69

MTD 736-0169

L.-Wash. 3/8 Scr.*

$3.99

$

In Stock, Qty 20+

0

70

MTD 05611

Lift Bracket

$

$

Not available

71

MTD 712-0221

Hex Ins. Jam L.-Nut 5/8-18 Thd.

$

$

Not available

72

MTD 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.*

$

$

Not available

73

MTD 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

74

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

75

MTD 714-0117

Intern. Cotter Pin 3/4" Dia.

$4.49

$

In Stock, Qty 16

0

76

MTD 721-0117

Oil Seal 1.25" I.D. x 1.75" O.D. x .26

$

$

Not available

78

MTD 717-0370

Gear Box Ass'y. Comp.

$

$

Currently unavailable

79

MTD 735-0112

Rubber Grommet .50" I.D.

$

$

Not available

80

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

81

MTD 05646

Hitch Hanging Bar
(Superseded to 05646-0637)

Variations

MTD 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 736-0421

Lock Washer 1/2" Scr.

$

$

Not available

83

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0474

Hex Scr. 1/2-13 1-1/4 Lg.

$

$

Not available

85

MTD 741-0303

Ball Bearing

$114.99

$

In Stock, only 2 left!

0
