19951S - MTD Three Point Hitch (1985) Three Parts Diagram

Three Point Hitch

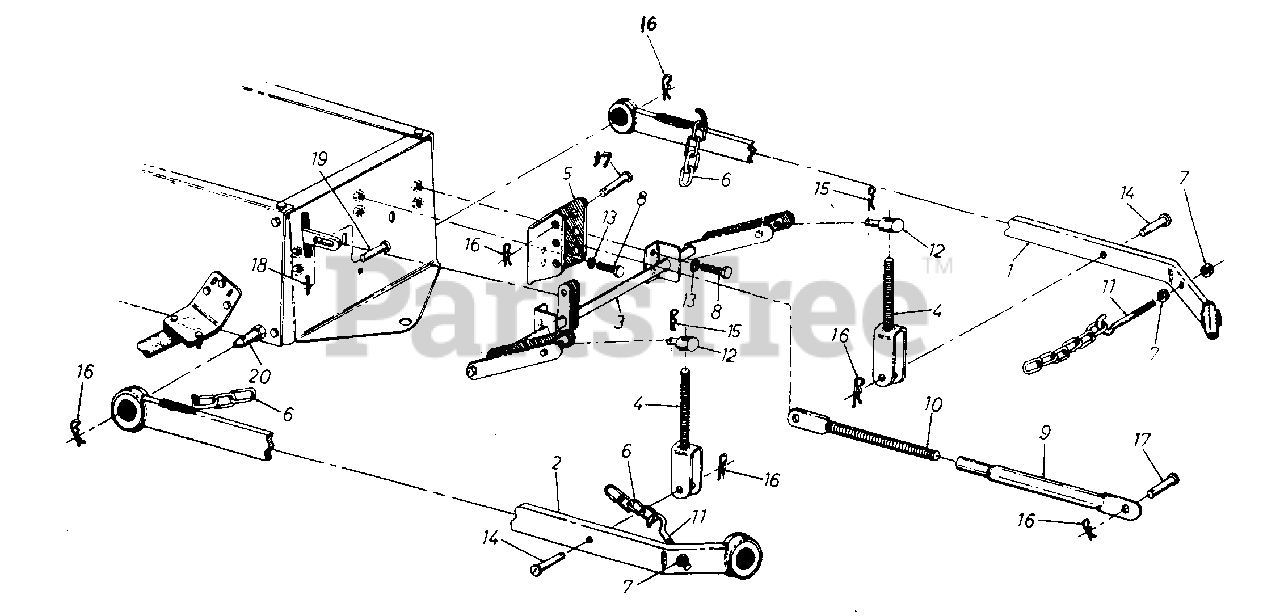

Three Parts Diagram

  • Title

1

MTD 13129

Draft Bar Assembly-R.H.
(Superseded to 13129A-0637)

$

$

Not available

2

MTD 13130

Draft Bar Assembly-L.H.

$

$

Not available

3

MTD 13135

Rear Lift Shaft Assembly
(Superseded to 13135-0637)

Variations

MTD 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 13138

Clevis Screw Assembly

$

$

Not available

5

MTD 13026

Hitch Bracket
(Superseded to 13026-0637)

Variations

MTD 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

6

MTD 713-0148

Chain 20 links

$

$

Not available

7

MTD 712-0290

Hex Cent. L.-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

8

MTD 710-0514

Hex Bolt 5-3/8-16 x Lg. Grade 5

$4.49

$

In Stock, Qty 20+

0

9

MTD 749-0238

Clevis Tubing
(Superseded to 749-0238-0637)

Variations

MTD 749-0238-0637

TUBING - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

10

MTD 711-0636

Clevis Screw

$

$

Not available

11

MTD 711-0639

Hitch Chain Hook

$10.99

$

Usually ships in 3-6 days

0

12

MTD 711-0649

Clevis Pin

$

$

Not available

13

MTD 736-0217

L.-Wash. 3/8" I.D.*

$4.49

$

In Stock, Qty 8

0

14

MTD 711-0225

Clevis Pin 5/8 Dia. x 1.66 Lg.

$

$

Not available

15

MTD 714-0147

Hairpin

$4.99

$

In Stock, Qty 6

0

16

MTD 714-0117

Hairpin

$4.49

$

In Stock, Qty 6

0

17

MTD 711-0299

Clevis Pin 5/8 Dia. x 2.4 Lg.

$36.99

$

Usually ships in 3-6 days

0

18

MTD 714-0470

Cotter Pin 1/8 Dia. x 1-1/4 Lg.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

20

MTD 711-0497

Link Clevis Pin

$

$

Not available
