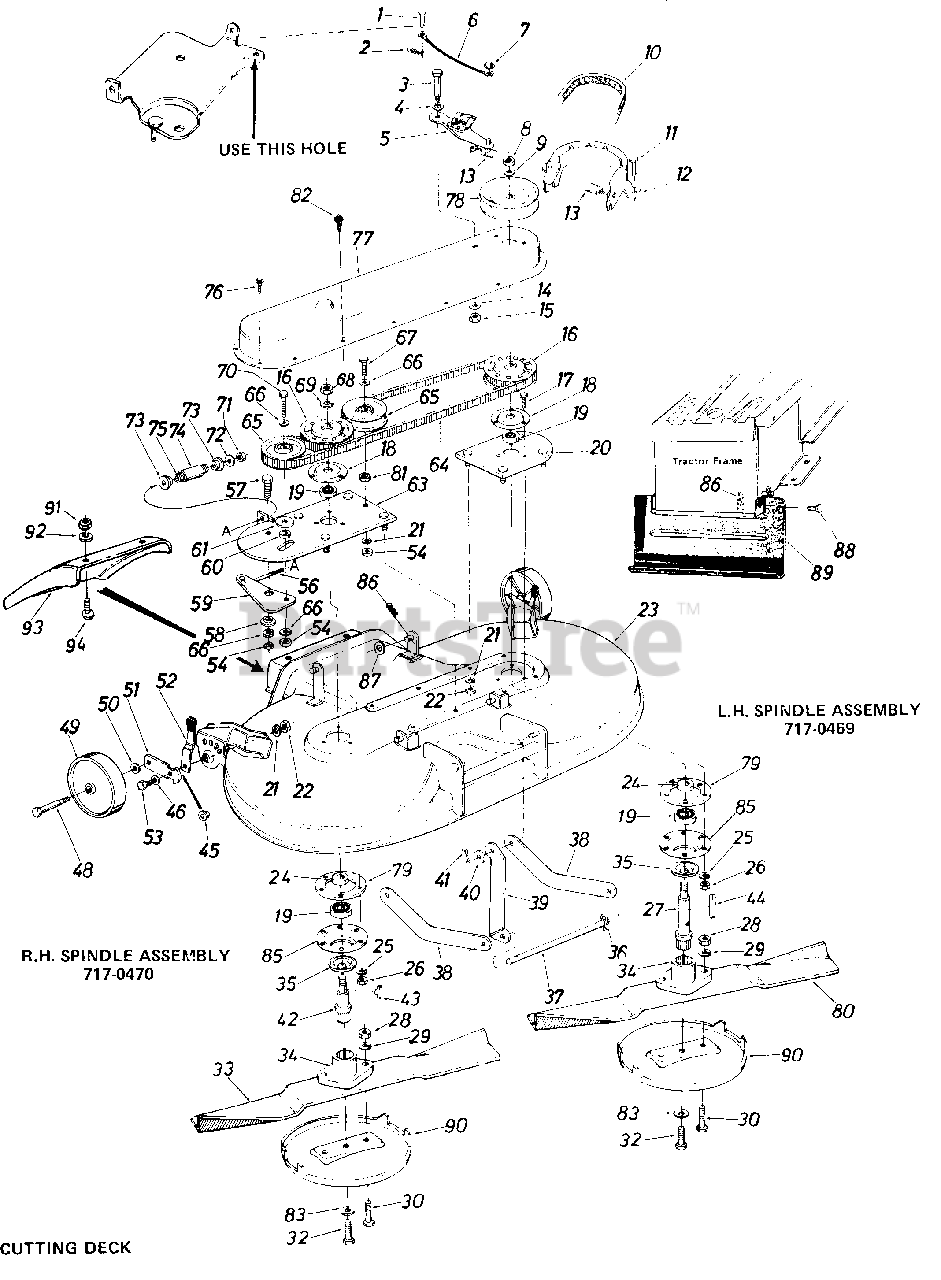

19931C - MTD Mower Deck Assembly Only (1986) 44" Parts Diagram

Mower Deck Assembly Only

44" Parts Diagram

  • Title

1

MTD 711-0701

Clevis Pin 1/4" Dia. x 1/2" Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

2

MTD 714-0104

Hairpin Cotter 1/4" Dia.

$4.49

$

In Stock, Qty 20+

0

3

MTD 738-0140

Shld. Bolt .437" Dia. x.l0" Lg.

Note: (5/16-18)l

$5.99

$

In Stock, Qty 15

0

4

MTD 736-0141

Wave Washer 7/16" Scr.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 16339

Spindle Brake Arm Ass'y.

$

$

Currently unavailable

6

MTD 746-0237

Brake Cable Ass y.
(Superseded to 946-0237)

Note: (Deck)

$

$

Not available

7

MTD 726-0106

Push Cap 1/4" Stud.

$3.99

$

Usually ships in 3-6 days

0

8

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

9

MTD 736-0317

Bell.-Wash. 5/8" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

10

MTD 754-0230

"V"-Belt 1/2" x 56" Lg.
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

11

MTD 710-0599

HexWash. Hd.SelfTapScr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

12

MTD 14258

Belt Guard

$

$

Not available

13

MTD 732-0465

Extension Spring

$

$

Currently unavailable

14

MTD 736-0242

Bell.-Wash..340" I.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

16

MTD 756-0334

Sprocket Pulley Ass'y.

$

$

Currently unavailable

17

MTD 710-0117

HexBolt5/16-24x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

18

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

19

MTD 741-0919

Ball Bearing.787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

20

MTD 13868

Spindle Plate Ass'y.

$

$

Not available

21

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 14251

44" R.D. Deck Ass'y.

$

$

Currently unavailable

24

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0123

Hex Nut 5/16-24Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

27

MTD 738-0504

Blade Spindle-L.H.

$

$

Not available

28

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

29

MTD 736-0119

L.-Wash. 5/16" I.D."
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 20+

0

MTD 736-0217

L-Wash. 3/8" I.D.: H.D.

$4.49

$

In Stock, Qty 8

0

32

MTD 710-0877

Hex Bolt Cent. L.-3/8 x 24 x .38 " Lq.
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

33

MTD 742-0216

22.5" Blade-L.H. Rotation

$

$

Not available

34

MTD 748-0235

Blade Adapter

$

$

Not available

35

MTD 13703

Bearing Shield

$

$

Not available

36

MTD 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

37

MTD 738-0392

Deck Connecting Rod

$

$

Not available

38

MTD 13866

Deck Stabi I izer

Variations

MTD 13866-0637

No Longer Available STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 13867

Diagonal Brace

Variations

MTD 13867-0637

No Longer Available BRACE-DIAG - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 736-0192

Fl.-Wash. .50" I.D. x 1.00 O.D. x .090

$4.49

$

In Stock, Qty 18

0

41

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

42

MTD 738-0505

BladeSpindle-R.H.

$

$

Not available

43

MTD 714-0122

Sq. Key 3/16" x 75" Lg.

$3.99

$

In Stock, Qty 20+

0

44

MTD 714-0133

Sq. Key 3/16" x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

45

MTD 748-0279

Shoulder Spacer

$

$

Not available

46

MTD 736-0219

Bell.-Wash..400" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

48

MTD 738-0455

Shld. Bolt 3/8-16 x 1.41" Lg.
(Superseded to 938-0455)

$

$

Not available

49

MTD 734-0974

Wheel Ass y. Comp. 6" x 1.38

$20.99

$

Usually ships in 3-6 days

0

50

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

51

MTD 10937

Wheel Pivot Bar

$

$

Not available

52

MTD 14082

Spring Lever Ass'y. w/knob

$

$

Not available

53

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg. Grade 5

$4.99

$

In Stock, Qty 9

0

54

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd

$6.49

$

In Stock, only 3 left!

0

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0437

Adjustment Link 5/16-18 x 4-9/16" Lg.

$

$

Not available

57

MTD 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

58

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

59

MTD 14256

Belt Idler Brkt.

$

$

Not available

60

MTD 750-0507

Spacer.380" I.D. x .625" O.D. x.265
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

61

MTD 736-0320

Fl.-Wash. .38" I.D. x 1.37" O.D. x .125

$6.99

$

In Stock, Qty 7

0

63

MTD 14254

Spindle & Idler Mount Plate Ass'y.

$

$

Not available

64

MTD 754-0260

HTD Twin Power Belt
(Superseded to 954-0260)

$287.99

$

Usually ships in 3-6 days

0

65

MTD 756-0365

Fl.-IdlerPulley 3.50" O.D.
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

66

MTD 736-0105

Bell.-Wash..38" I.D.

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5)

$4.99

$

In Stock, Qty 12

0

68

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

69

MTD 736-0317

Bell.-Wash. 5/8" I.D.

$7.99

$

In Stock, Qty 20+

0

70

MTD 710-0151

Hex Bolt 3/8-24 x 2.00" Lg.

$7.49

$

In Stock, only 3 left!

0

71

MTD 712-0429

Hex Insert L.-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

72

MTD 736-0231

Fl.-Wash. 344" I.D. x 1.125" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

73

MTD 738-0347

Shld. Spacer.625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

74

MTD 750-0455

Spacer-Adj. Bolt

$

$

Not available

75

MTD 732-0377

Compression Spring

$

$

Not available

76

MTD 710-0599

Hex \IVash. Hd. Self Tap. Scr. 1/4-20 x . 50" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 14253

Belt Cover

$

$

Currently unavailable

78

MTD 756-0375

Deck Drive Pulley

$

$

Not available

79

MTD 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

80

MTD 742-0215

22.5" Blade-R.H. Rotation

$

$

Not available

81

MTD 736-0206

Fl.-Wash. .38" I.D. x 1.00" 0. D.
(Superseded to 936-0206)

$4.49

$

In Stock, only 2 left!

0

82

MTD 710-0642

Hex Wash. Hd. Self Tap-Scr. 1/4-20x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 736-0217

L.-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 8

0

MTD 742-0279

Lower Blade Disc

Variations

MTD 742-0279-0637

Lower Blade Disc - POWDER BLACK (0637)

$

$

Not available

$

$

85

MTD 15296

Open Bearing Housing
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

86

MTD 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

87

MTD 736-0192

Fl.-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 18

0

88

MTD 711-0173

Clevis Pin
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

89

MTD 14268

Safety Shield-16 5/8" Lg.

$

$

Not available

MTD 14269

Safety Shield-19" Lg.

$

$

Not available

90

MTD 07919

Anti Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available

91

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

92

MTD 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

93

MTD 16411

Chute Deflector

$

$

Not available

94

MTD 710-0286

Truss Mach. Scr. 1/4-20 x.50" Lg.

$4.49

$

Usually ships in 3-6 days

0
