19930-7 - MTD 40" Snow Thrower Attachment (1987) 40" Parts Diagram

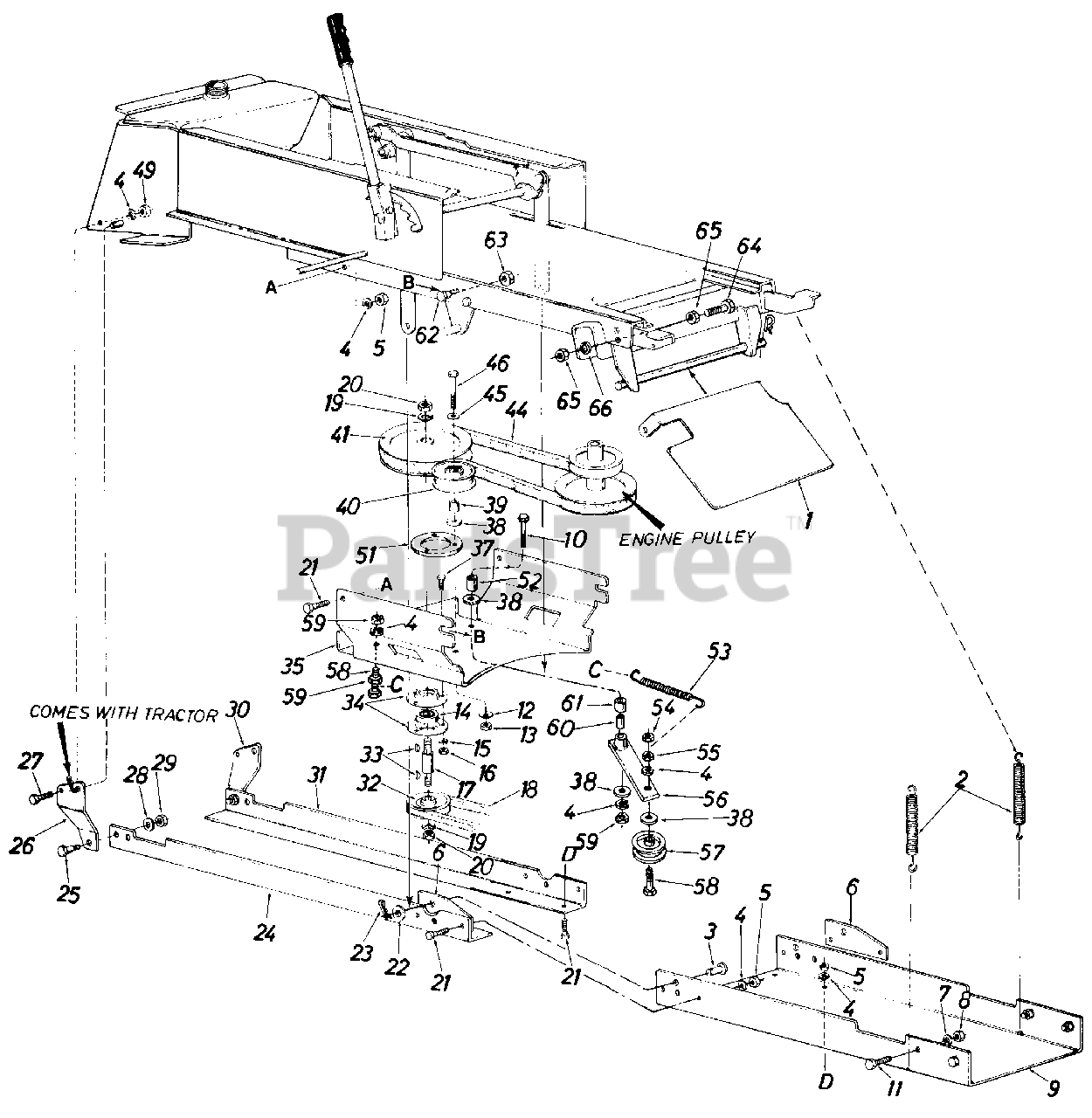

40" Snow Thrower Attachment

40" Parts Diagram

  • Title

1

MTD 784-5091

Guide Bracket

$

$

Not available

2

MTD 732-0233

Helper Spring
(Superseded to 932-0233)

$

$

Not available

3

MTD 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

4

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0241

Hex L.-Nut 3/8-24Thd.

$4.49

$

In Stock, Qty 13

0

6

MTD 05714

Attaching Plate

$

$

Not available

7

MTD 736-0921

L.-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

8

MTD 712-0239

Hex L.-Nut 1/2-20Thd.

$5.99

$

In Stock, Qty 20+

0

9

MTD 05719

Front Support Channel

$

$

Not available

10

MTD 710-0771

Hex Bolt 3/8-16 x 3.75" Lg.
(Superseded to 710-04576)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 710-0504

Hex Bolt 1/2-20 x 1.25" Lg.

$

$

Not available

12

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

14

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

15

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 738-0246

Spindle

$

$

Not available

18

MTD 754-0291

"V"-Belt 1/2" x 88" x 2 (Kevlar)
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

19

MTD 736-0158

L.-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

20

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

21

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0192

Flat Washer

$4.49

$

In Stock, Qty 16

0

23

MTD 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 1 left!

0

24

MTD 05718

Rear Support Angle-R.H.

Variations

MTD 05718-0637

No Longer Available ANGLE-SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 738-0163

Shld. Bolt .623" Dia. x .258" Lg.

$

$

Not available

26

MTD 05716

Rear Hanger Brkt.-R.H.
(Superseded to 05716-0637)

Variations

MTD 05716-0637

BRACKET-HANGER-RH- - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 710-0152

Hex Bolt 3/8 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0319

Fl.-Wash. .44" I.D. x 1.38" O.D. x .130
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

29

MTD 712-0290

Hex L.-Nut 7/16-24 Thd.

$4.99

$

In Stock, Qty 11

0

30

MTD 05715

Rear Hanger Brkt.-L.H.

$

$

Not available

31

MTD 05717

Rear Support Angle-L.H.
(Superseded to 05717-0637)

Variations

MTD 05717-0637

ANGLE-SUPPORT-LH-R - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 756-0457

Lower Drive Pulley 5/8 x 5.56

$

$

Not available

33

MTD 714-0388

#6 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

34

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

35

MTD 05713

Supporting Bracket

$

$

Not available

37

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

38

MTD 736-0258

Fl.-Wash. .38" I.D. x 1.00" O.D. x .135

$4.49

$

In Stock, only 4 left!

0

39

MTD 748-0193

Spacer .38" I.D. x .62" O.D.
(Superseded to 948-0193)

$

$

Not available

40

MTD 1626-104

Fl.-Idler Pulley
(Superseded to 756-0405)

$71.99

$

Usually ships in 3-6 days

0

41

MTD 756-0216

Upper Drive Pulley

$

$

Not available

44

MTD 754-0206

"V"-Belt 1/2" x 49.8" Lg.
(Superseded to 954-0206)

$

$

Not available

45

MTD 736-0140

Fl.-Wash.

$7.49

$

In Stock, Qty 6

0

46

MTD 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

49

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

51

MTD 13778

Reinforcement Plate

Variations

MTD 13778-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 750-0511

Spacer .37" I.D. x .562" O.D. x x 1.50" Lg.

$

$

Not available

53

MTD 732-0470

Extension Spring .54" O.D. x 4.75" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

54

MTD 712-0266

Hex Cent. L.-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

55

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

56

MTD 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

57

MTD 756-0417

Idler Pulley

$

$

Not available

58

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

59

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

60

MTD 750-0252

Spacer .377" I.D. x .60" O.D. x .830" Lg.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

61

MTD 748-0193

Spacer.380" I.D. x .630" O.D. x .565" Lg.
(Superseded to 948-0193)

$

$

Not available

62

MTD 738-0143

Shoulder Bolt .498 Dia. x .340

$4.49

$

In Stock, Qty 20+

0

63

MTD 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

64

MTD 710-0698

Hex Bolt 1/4-28 x 1.5" Lg.

$

$

Not available

65

MTD 712-0138

Hex Nut 1/4"-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

66

MTD 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0
