19929-9 - MTD Sleeve Hitch Kit (1989) Sleeve Parts Diagram

Sleeve Hitch Kit

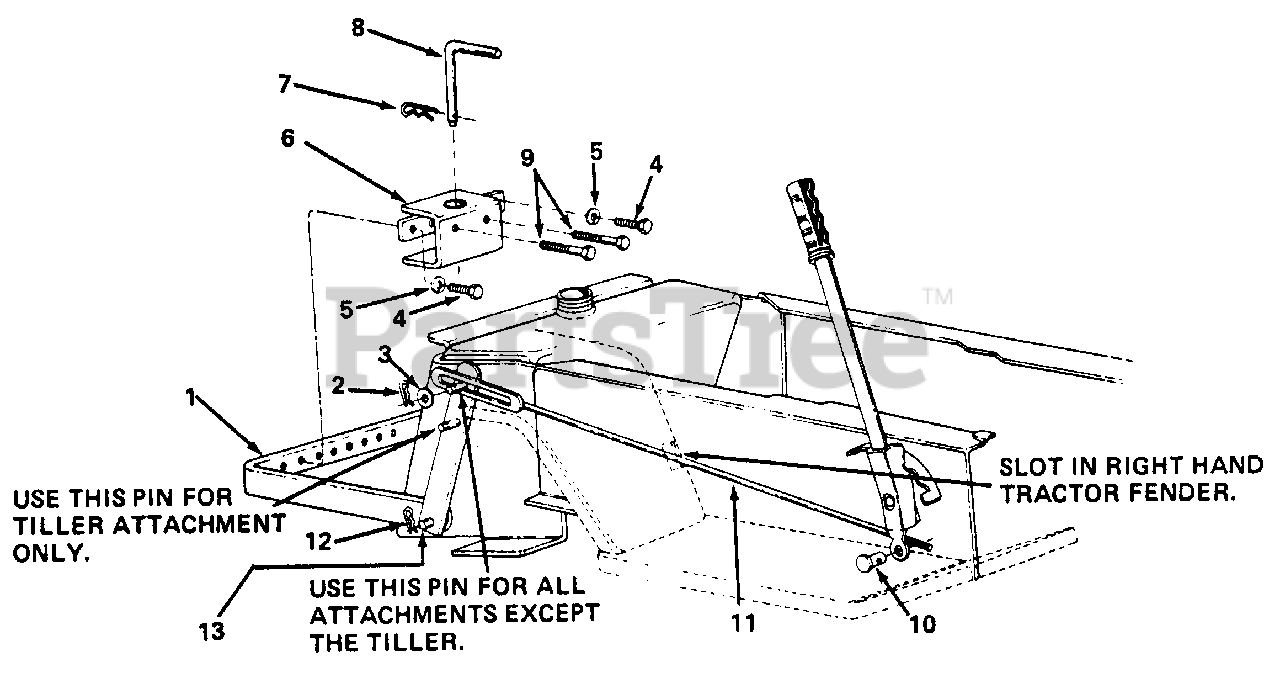

Sleeve Parts Diagram

  • Title

1

MTD 13914

Hitch Bar Ass'y.

Variations

MTD 13914-0637

No Longer Available BAR ASM-H - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

3

MTD 736-0100

Fl.-Wash. 1/2" I.D.

$6.99

$

In Stock, Qty 7

0

4

MTD 710-0493

Hex Scr. 1/2-13 x 1.00" Lg.
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

5

MTD 736-0921

L.-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 6

0

6

MTD 13269

Hitch Brkt. Ass'y.
(Superseded to 13269-0637)

Variations

MTD 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 714-0117

Internal CotterPin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

8

MTD 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

9

MTD 710-0182

Hex Scr. 1/2-13 x 3.00" Lg.
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

10

MTD 711-0700

Adjustment Ferrule

$

$

Not available

11

MTD 13916

Link Rod Ass'y.

Variations

MTD 13916-0637

No Longer Available ROD ASM-L - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

13

MTD 738-0482

Hitch Rod

$

$

Not available
