198707-0144-E1 - Briggs & Stratton Vertical Engine Armature, Flywheels, Blower, Rewind Parts Diagram

Vertical Engine

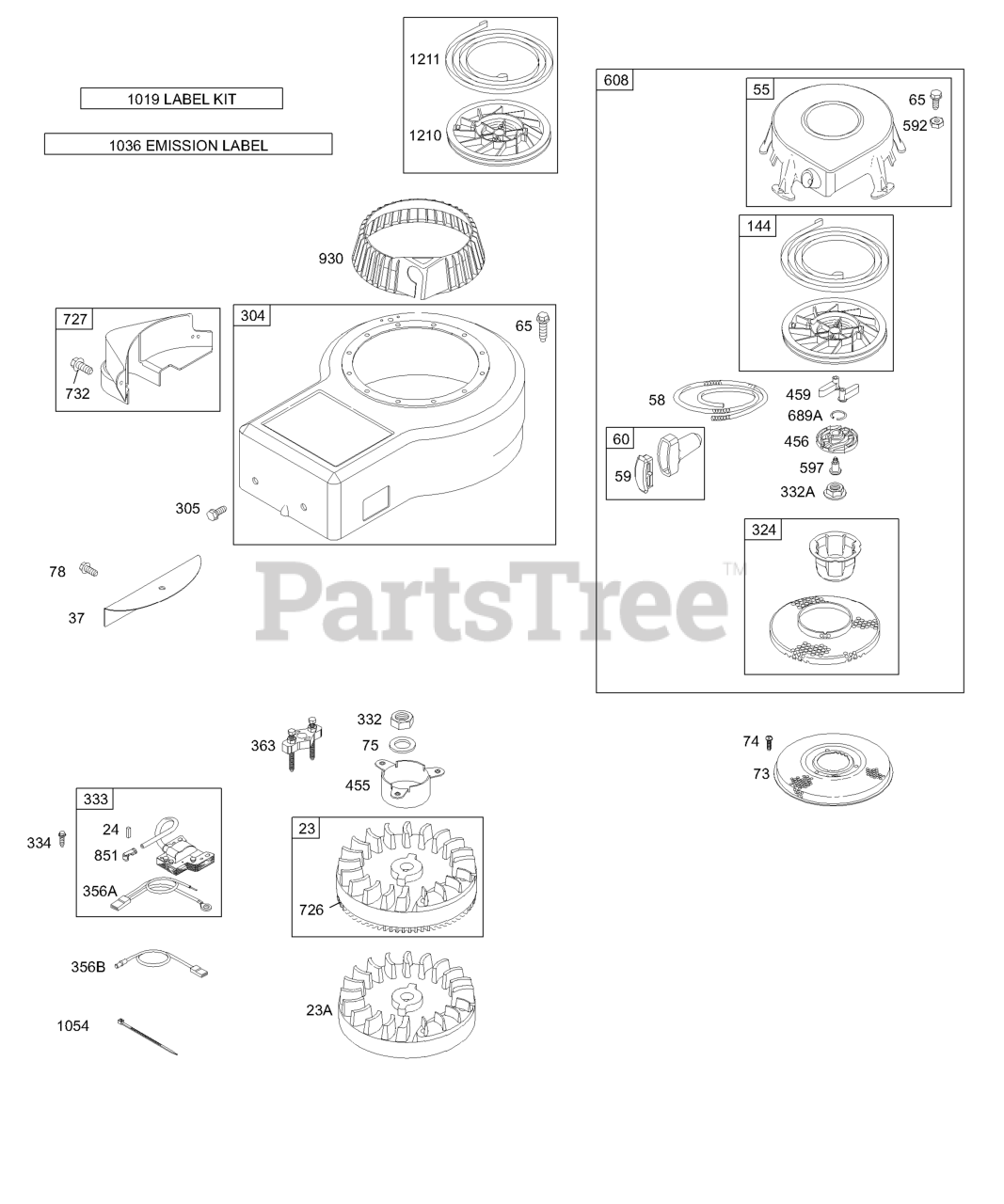

Armature, Flywheels, Blower, Rewind Parts Diagram

  • Title

23

Briggs & Stratton 691354

Flywheel

Note: (Electric Start)

$

$

Not available

23A

Briggs & Stratton 690615

Flywheel

Note: (Rewind Start)

$

$

Not available

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 690411

Guard-Flywheel

$

$

Not available

55

Briggs & Stratton 693904

Housing-Rewind Starter

$

$

Not available

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (70" Long)

$9.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 490653

Insert-Grip
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 10

0

65

Briggs & Stratton 690759

Screw
(Superseded to 690837)

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

73

Briggs & Stratton 691748

Screen-Rotating

$232.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 691655

Screw

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer

Note: (Flywheel)

$4.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 690364

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, only 2 left!

0

144

Briggs & Stratton 697843

Pulley/Spring Assembly

$27.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 496832

Housing-Blower

Note: (Rewind Start)

$

$

Not available

304

Briggs & Stratton 496439

Housing-Blower

Note: (Electric Start)

$

$

Not available

305

Briggs & Stratton 692198

Screw

Note: (Blower Housing)

$5.99

$

In Stock, Qty 11

0

324

Briggs & Stratton 695160

Screen/Cup Assembly

Note: Used After Code Date 99022800

$

$

Not available

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

332A

Briggs & Stratton 693899

Nut

Note: (Flywheel)

$

$

Not available

333

Briggs & Stratton 398811

Armature-Magneto

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356B

Briggs & Stratton 690799

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19165

Puller-Flywheel

$25.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 691173

Cup-Flywheel

$37.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 7

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 693900

Starter-Rewind

$89.99

$

In Stock, Qty 10

0

689A

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

726

Briggs & Stratton 399676

Gear-Ring
(Superseded to 696537)

Note: (Includes Mounting Hardware)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter Drive

$

$

Not available

732

Briggs & Stratton 691097

Screw

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

930

Briggs & Stratton 691904

Guard-Rewind

$27.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 696491

Kit-Label

$

$

Not available

1036

Briggs & Stratton 499356

Label-Emissions

Note: Used Before Code Date 99010100

$

$

Not available

1036

Briggs & Stratton 695697

Label-Emissions

Note: Used After Code Date 00063000 Used Before Code Date 01100100

$

$

Not available

1036

Briggs & Stratton 695096

Label-Emissions

Note: Used After Code Date 99093000 Used Before Code Date 00070100

$

$

Not available

1036

Briggs & Stratton 694305

Label-Emissions

Note: Used After Code Date 99100100 Used Before Code Date 98123100

$

$

Not available

1036

Briggs & Stratton 696769

Label-Emissions

Note: Used After Code Date 01093000

$

$

Not available

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) Used After Code Date 00082000 Used Before Code Date 01051100

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) Used After Code Date 00082000 Used Before Code Date 01051100

$19.99

$

In Stock, Qty 20+

0
