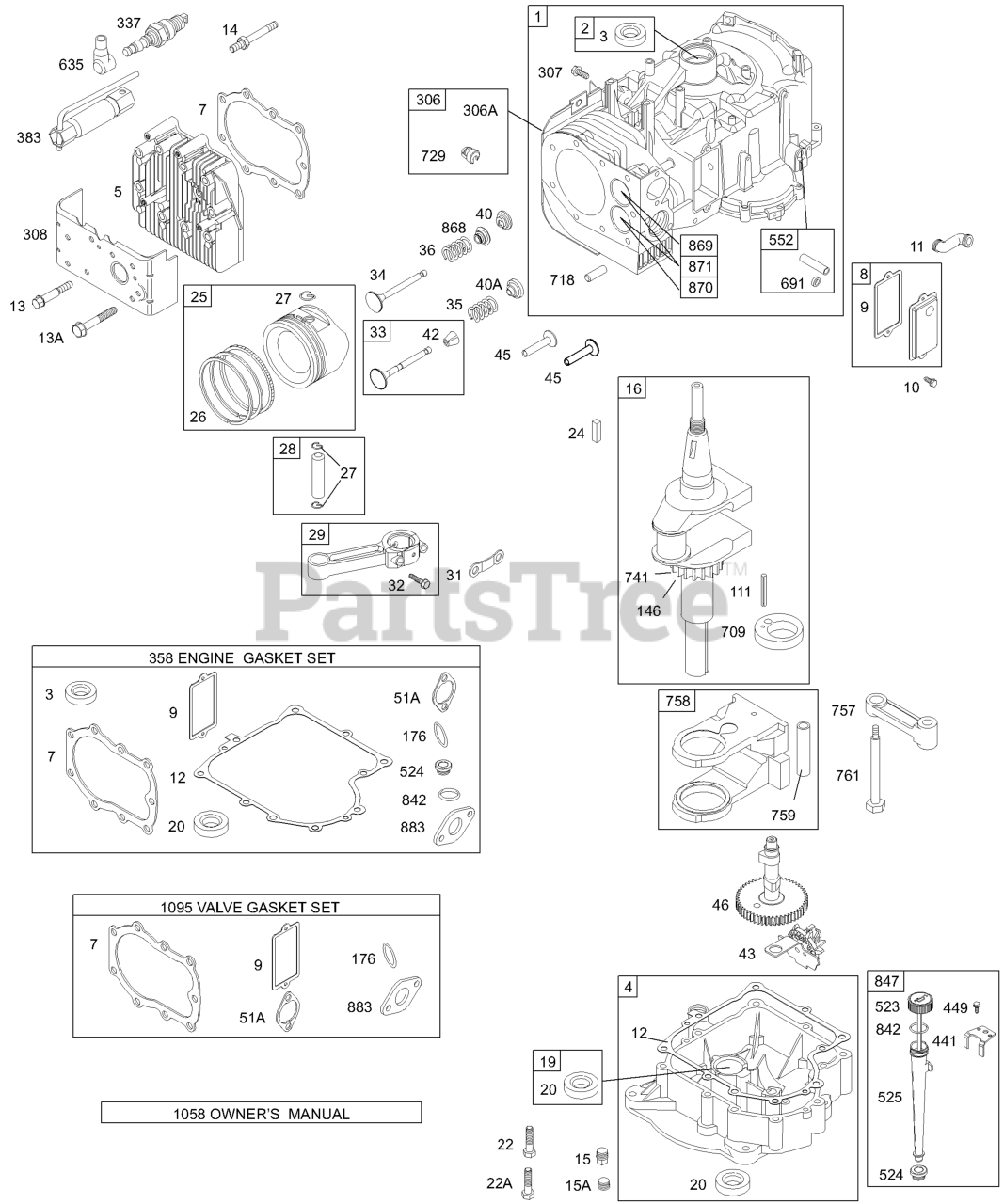

198707-0141-E2 - Briggs & Stratton Vertical Engine Cylinder, Head, Piston/Rings, Crankshaft, Gaskets, Sump, Counterweight Parts Diagram

Vertical Engine

Cylinder, Head, Piston/Rings, Crankshaft, Gaskets, Sump, Counterweight Parts Diagram

  • Title

1

Briggs & Stratton 495623

Cylinder Assembly

$215.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 495657

Kit-Bushing/Seal
(Superseded to 698340)

Note: (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 392548

Sump-Engine

$110.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 691715

Head-Cylinder

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163S

Gasket-Cylinder Head

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495735

Breather Assembly

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 692293

Tube-Breather

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27877

Gasket-Crankcase

Note: (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 692221

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$8.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 27876

Gasket-Crankcase

Note: (.005" Thick)

$

$

Not available

13

Briggs & Stratton 691651

Screw
(Superseded to 592244)

Note: (Cylinder Head) (2 5/8" Long)

$3.49

$

In Stock, Qty 20+

0

13A

Briggs & Stratton 690904

Screw

Note: (Cylinder Head) (3" Long)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 691690

Stud

Note: (Cylinder Head) (Used In Positions 5 And 6)

$

$

Not available

15A

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 694054

Crankshaft

$199.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Kit-Bushing/Seal

Note: (PTO Side)

$

$

Not available

20

Briggs & Stratton 391086S

SEAL, Oil

Note: (PTO Side)

$6.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691625

Screw
(Superseded to 691103)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 4 left!

0

22A

Briggs & Stratton 691103

Screw

Note: (Crankcase Cover/Sump) (Used In Position 1)

$3.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499907

Piston Assembly

Note: (Standard)

$

$

Not available

25

Briggs & Stratton 499908

Piston Assembly

Note: (.010" Oversize)

$

$

Not available

25

Briggs & Stratton 499909

Piston Assembly

Note: (.020" Oversize)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499910

Piston Assembly

Note: (.030" Oversize)

$

$

Not available

26

Briggs & Stratton 499921

Ring Set

Note: (Standard)

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690018

Ring Set

Note: (.010" Oversize)

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690019

Ring Set

Note: (.020" Oversize)

$59.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 690020

Ring Set

Note: (.030" Oversize)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set
(Superseded to 690014)

Note: (Standard)(Chrome)

$

$

Not available

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 499302

Pin-Piston

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 499303

Pin-Piston

Note: (.005" Oversize)

$5.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting

Note: (Standard)

$84.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390773

Rod-Connecting

Note: (.020" Undersize)

$103.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 690352

Screw

Note: (Connecting Rod)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 691794

Valve-Exhaust

$

$

Not available

34

Briggs & Stratton 261055S

Valve-Intake

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 691605

Spring-Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 691597

Spring-Valve

Note: (Exhaust)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 690656

Retainer-Valve

Note: (Intake)

$

$

Not available

40A

Briggs & Stratton 691939

Retainer-Valve

Note: (Exhaust)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

Note: (Exhaust)

$7.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 691980

Slinger-Governor/Oil

$

$

Not available

45

Briggs & Stratton 691793

Tappet-Valve

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691167

Camshaft

$

$

Not available

51A

Briggs & Stratton 272554S

Gasket-Intake

Note: (Intake Manifold To Cylinder)

$5.49

$

In Stock, Qty 6

0

111

Briggs & Stratton 691679

Pin-Retainer

$4.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

176

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 224898

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 691201

Cover-Cylinder Head

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592S

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 299577

Gasket Set-Engine

$35.99

$

In Stock, Qty 11

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

441

Briggs & Stratton 690593

Bracket-Oil Fill

$11.99

$

In Stock, only 1 left!

0

449

Briggs & Stratton 690664

Screw

Note: (Oil Fill Bracket)

$5.49

$

In Stock, only 1 left!

0

523

Briggs & Stratton 691387

Dipstick

$16.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370S

Seal-Dipstick Tube

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 692963

Tube-Dipstick

$

$

Not available

552

Briggs & Stratton 491986

Bushing-Governor Crank

$

$

Not available

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

709

Briggs & Stratton 691268

Eccentric

$11.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 690603

Clip-Wire
(Superseded to 690596)

$

$

Not available

741

Briggs & Stratton 691288

GEAR, Timing

$21.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 691714

Link-Counterweight

$

$

Not available

758

Briggs & Stratton 690619

Counterweight

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 691239

Pin-Counterweight

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 690346

Screw

Note: (Counterweight)

$7.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Dipstick/Tube Assembly

$

$

Not available

868

Briggs & Stratton 692036

Seal-Valve
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 691703

Seat-Valve
(Superseded to 691844)

Note: (Intake)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 691844

Seat-Valve

Note: (Exhaust)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Valve Guide

Note: (Intake)

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Valve Guide

Note: (Exhaust)

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

1058

Briggs & Stratton 274787

Manual-Owner's

Note: (Emission)

$

$

Not available

1095

Briggs & Stratton 498536

Gasket Set-Valve

$26.99

$

Usually ships in 2-12 days
