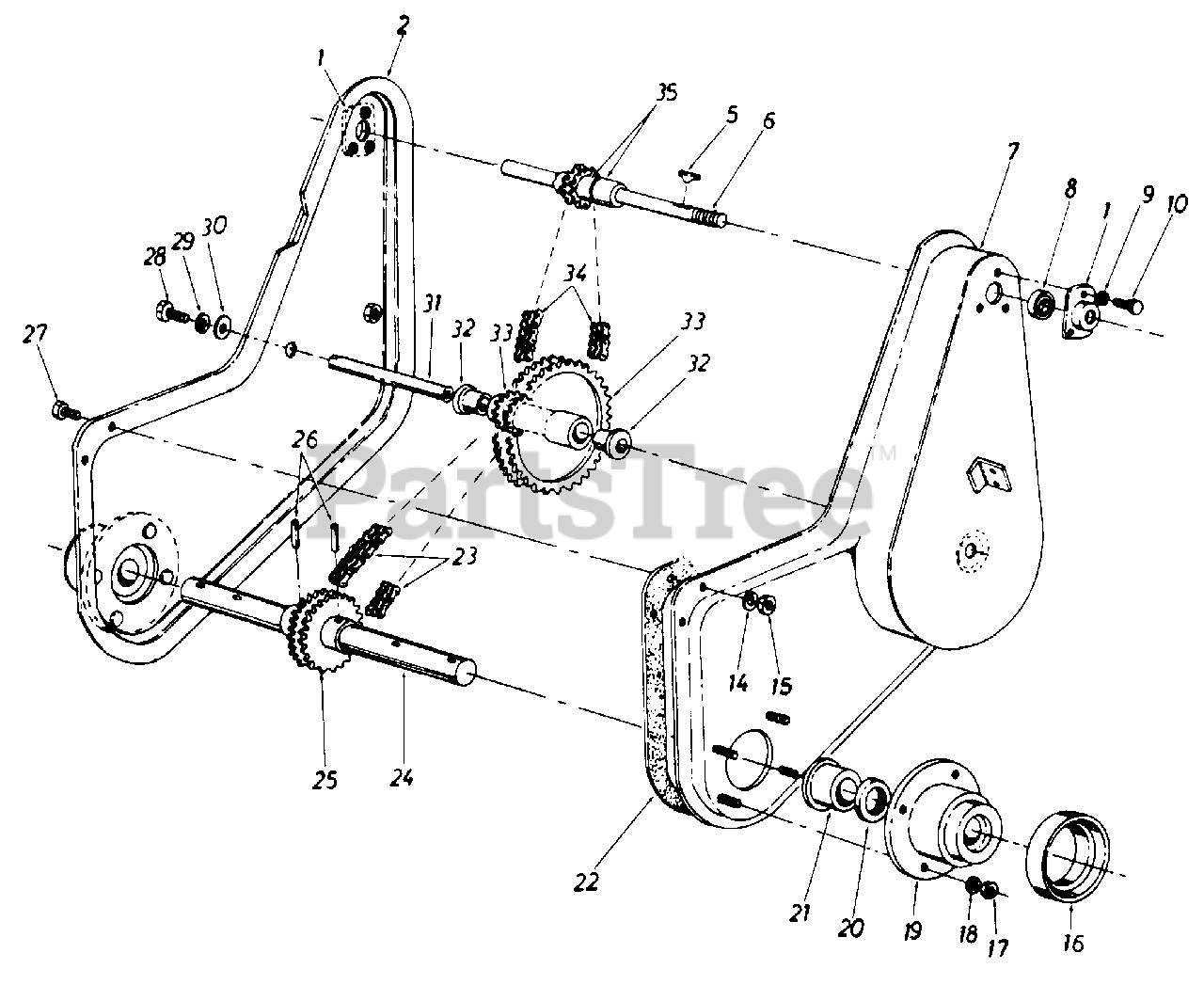

19766-8 - MTD Tiller Attachment (1988) Chain Parts Diagram

Tiller Attachment

Chain Parts Diagram

  • Title

1

MTD 05034

Bearing Housing l.375" Dia.
(Superseded to 05034A)

$

$

Not available

2

MTD 14895

Housing Assembly R.H.
(Superseded to 14895-0637)

Variations

MTD 14895-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14895-0637

Housing Assembly R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 714-0136

#6 Hi-Pro Key 5/32" x .62" Lg.

$

$

Not available

6

MTD 14892

Input Shaft Assembly
(Superseded to 94892)

$

$

Not available

7

MTD 14894

Housing Assembly L.H.

Variations

MTD 14894-0498

No Longer Available HOUSING-LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14894-0637

No Longer Available HOUSING-LH - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 741-0155

Ball Bearing .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

9

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 712-0287

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

16

MTD 04973

Dust Cap Cover

$

$

Not available

17

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

18

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 04530

Cast Bearing Housing
(Superseded to 94530)

$

$

Not available

20

MTD 721-0117

Oil Seal

$

$

Not available

21

MTD 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

22

MTD 721-0119

Gasket

$

$

Not available

23

MTD 713-0150

Roller Chain #40-2 x 34.0 Lg.
(Superseded to 913-0150)

$110.99

$

Usually ships in 3-6 days

0

24

MTD 711-0506

Tine Shaft

$

$

Not available

25

MTD 717-0189

Double Sprocket T24-2 Teeth 1/2" Pitch

$

$

Not available

26

MTD 715-0125

Spiral Pin 3/8" Dia. x 2.00" Lg.
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

27

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

28

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 736-0195

Fl-Wash. 5/16" I.D.

$

$

Not available

31

MTD 711-0504

Sprocket Shaft

$

$

Not available

32

MTD 748-0855

Flange Bearing .62" I.D. x .75" O.D.

$

$

Not available

33

MTD 04529

Double Sprocket Assembly

$

$

Not available

34

MTD 713-0149

Roller Chain #35-2 x 36.75" Lg.

$

$

Not available

35

MTD 748-0192

Spacer 5/8" I.D. x 7/8" O.D.

$7.99

$

Usually ships in 3-6 days

0
