1975 - Poulan Woodshark Chainsaw, Type 7 Engine Assembly Type 7 Parts Diagram

Woodshark Chainsaw, Type 7

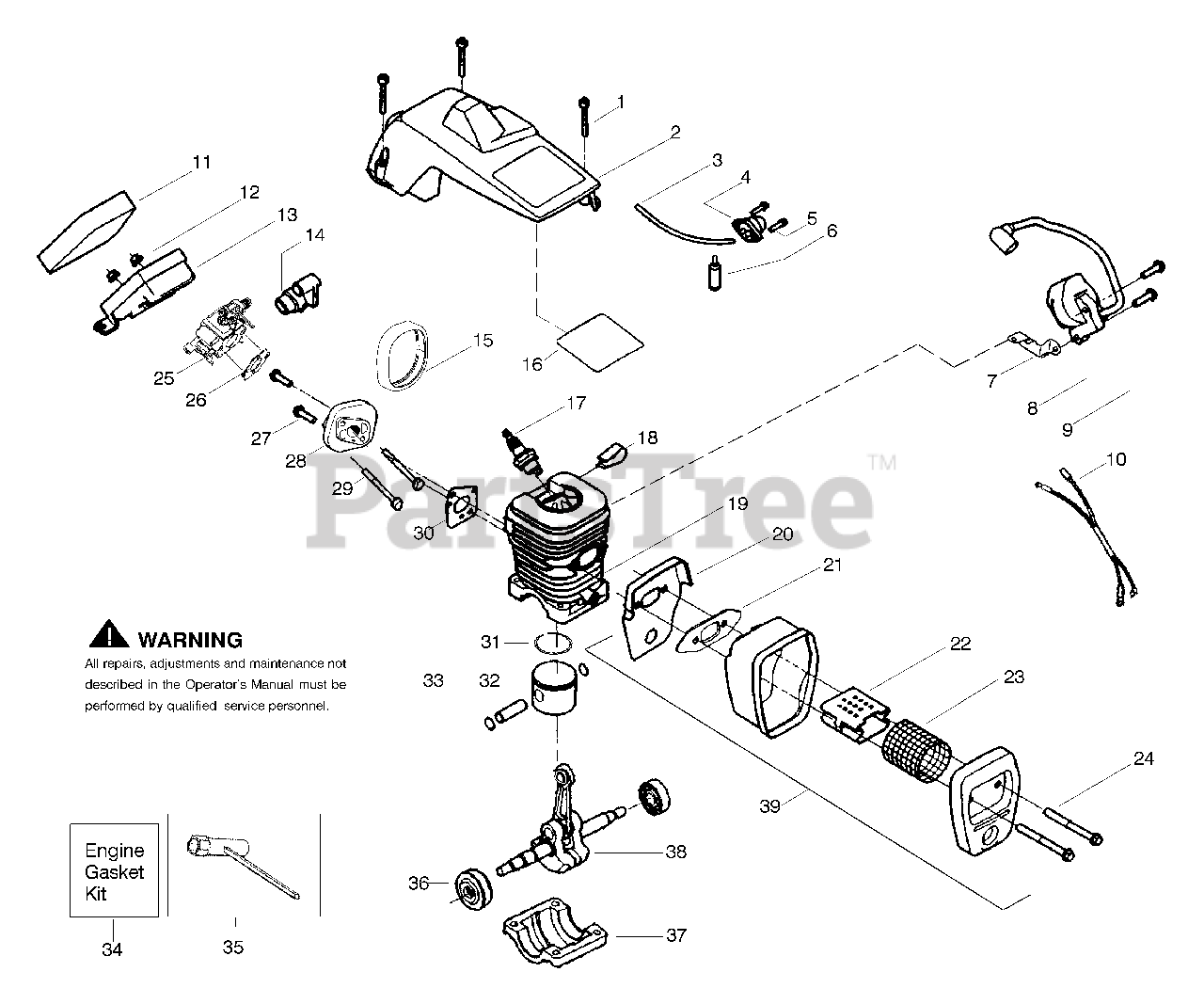

Engine Assembly Type 7 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 1 left!

0

2

Poulan 530055637

Assy Cylinder Shield

Note: (includes #16)

$

$

Not available

3

Poulan 530069247

Kit Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530047213

Assy Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy Fuel Pick up

$6.99

$

In Stock, Qty 20+

0

7

Poulan 530047442

Strap Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530052296

Assy Wire Harness

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam Air Filter

$4.99

$

In Stock, Qty 6

0

12

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

13

Poulan 530057480

Assy Air Box

$

$

Not available

14

Poulan 530035526

Grommet Carb Adjust

$

$

Not available

15

Poulan 530054144

Seal Carb Adapter

$

$

Not available

16

Poulan 530055698

Reflector Heat

$3.99

$

In Stock, only 1 left!

0

17

Poulan 952030150

Spark Plug (RCJ 7Y)

$3.49

$

In Stock, Qty 20+

0

18

Poulan 530016136

Clip High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530012550

Cylinder

$51.99

$

Usually ships in 3-10 days

0

20

Poulan 530049870

Backplate Muffler

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530069608

Gasket Muffler(kit)

$8.99

$

In Stock, Qty 12

0

22

Poulan 530037813

Diffuser Muffler

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530036103

Screen Spark

$

$

Not available

24

Poulan 530016132

Bolt Muffler

$6.49

$

In Stock, Qty 10

0

25

Poulan 530071820

Kit Carburetor Zama (W20)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

25

Poulan 530071821

Kit Carburetor Walbro (WT662)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

26

Poulan 530069608

Gasket Carb. (kit)

$8.99

$

In Stock, Qty 12

0

27

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

29

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530069608

Gasket Adaptor(kit)

$8.99

$

In Stock, Qty 12

0

31

Poulan 530038729

Ring Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 530015697

Retainer Piston Pin

$6.49

$

In Stock, Qty 6

0

33

Poulan 530071408

Kit Piston

Note: (Incl. 31 & 32)

$

$

Not available

34

Poulan 530069608

Kit Engine Gasket

Note: (Incl. 21, 26 & 30)

$8.99

$

In Stock, Qty 12

0

35

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

36

Poulan 530056363

Assy Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

37

Poulan 530037935

Cap Crankcase

$10.99

$

Usually ships in 3-10 days

0

38

Poulan 530047062

Assy Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

39

Poulan 530047207

Assy Muffler
(Superseded to 530071904)

Note: (Incl. 20-24)

$20.99

$

Usually ships in 3-10 days

0

Poulan 530164603

Manuals

Note: Not Shown

$

$

Not available

Poulan 530057757

Decal Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530057268

Decal Start Inst.

Note: Not Shown

$

$

Not available
