19749-8 - MTD Electric Lift Kit (1988) Electric Parts Diagram

Electric Lift Kit

Electric Parts Diagram

  • Title
4

MTD 725-0300

Fuse 30 AMP

Note: (For Service Only)

$

$

Currently unavailable

11

MTD 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

19

MTD 725-1108

Wire Harness

$

$

Not available

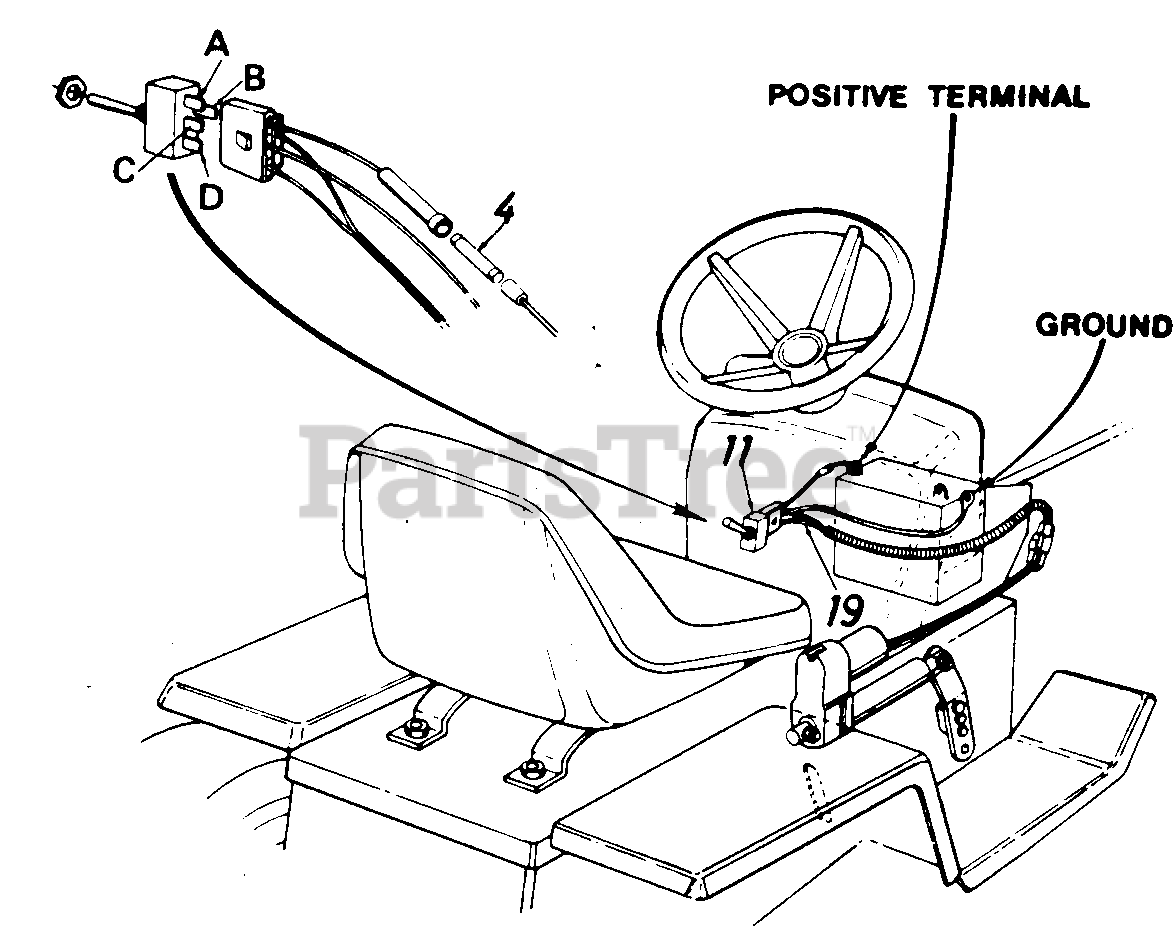

A

Blue Wire Connects to Positive Terminal on Battery

$

$

Not available

B

Yellow Wire Connects to Actuator

$

$

Not available

C

Black Wire Ground Wire to Frame

$

$

Not available

D

Red Wire Connects to Actuator

$

$

Not available
