19745C - MTD Front Weight Kit (1986) Front Parts Diagram

Front Weight Kit

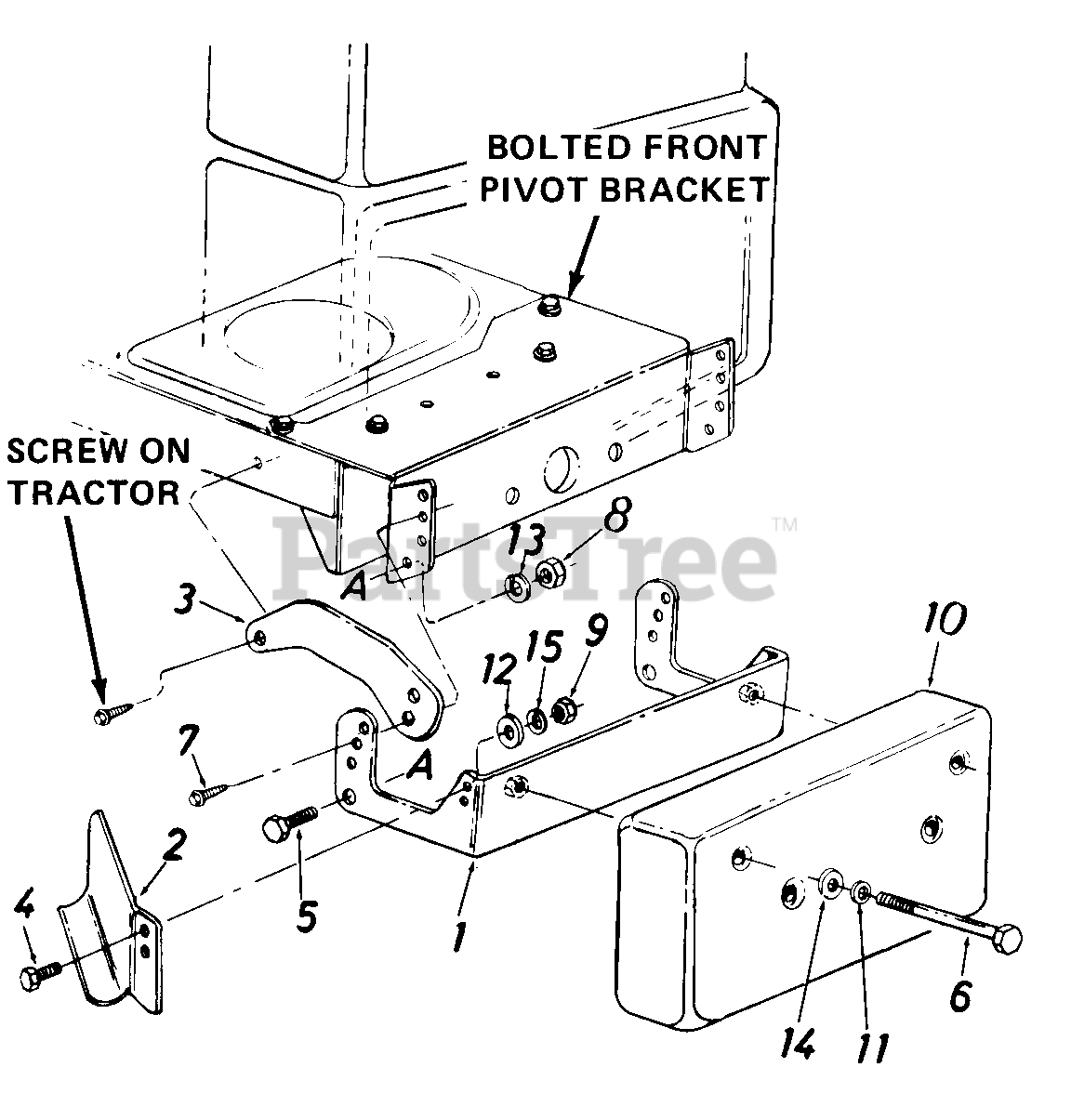

Front Parts Diagram

  • Title

1

MTD 15873

Counterweight Bracket Ass'y.

$

$

Not available

2

MTD 15949

Exhaust Deflector

$

$

Currently unavailable

3

MTD 16024

Tie Strap

$

$

Not available

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.

$4.49

$

In Stock, Qty 13

0

6

MTD 710-0693

HexBolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

7

MTD 710-0915

Hex AB Tap Scr. 5/16-18 x 1.0" Lg.

$

$

Not available

8

MTD 712-0240

Hex Jam Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

MTD 723-0367

Front Counterweight-38 Lbs.

$

$

Not available

11

MTD 736-0105

Bell-Wash..40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0142

Fl-Wash. .28" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

14

MTD 736-0280

Fl-Wash. .39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
