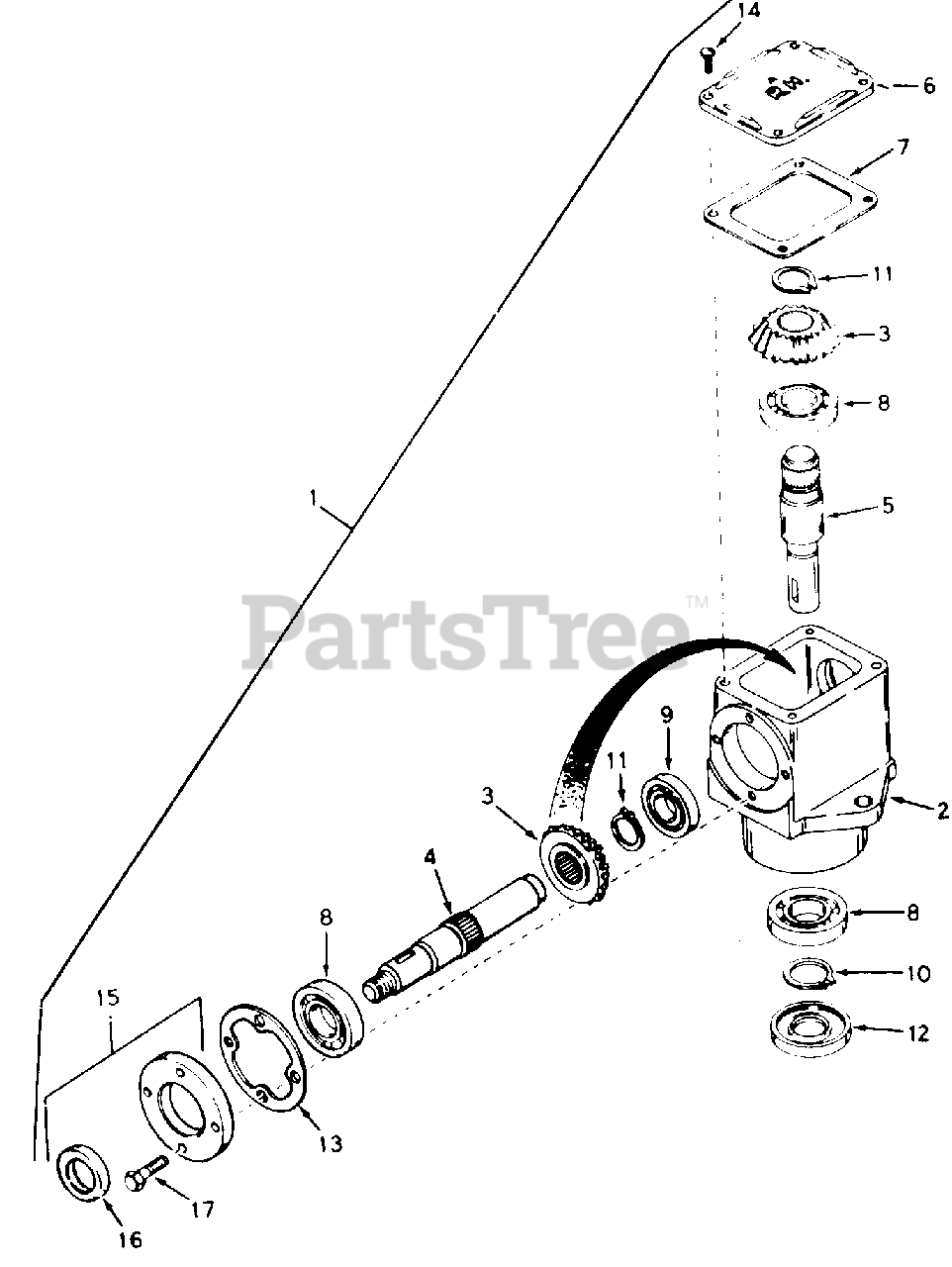

196-962-000 - MTD Mower Deck Assembly Only (1986) Right Angle Drive Box Parts Diagram

Mower Deck Assembly Only

Right Angle Drive Box Parts Diagram

  • Title

1

MTD 794111

Head Ass'y. R.H.

Note: (Incl. No. 2 thru 15)

$

$

Currently unavailable

2

MTD 770026

Housing, Right Angle Drive

$

$

Currently unavailable

3

MTD 778046

Gear, Miter
(Superseded to TC-778046)

$44.99

$

Usually ships in 3-12 days

0

4

MTD 776149

Shaft, Input

$

$

Currently unavailable

5

MTD 776129

Shaft, Output

$64.99

$

Usually ships in 3-12 days

0

6

MTD 772034

Cover, Right Hand

$

$

Currently unavailable

7

MTD 788028

Gasket, Cover
(Superseded to TC-788028)

$5.99

$

In Stock, Qty 20+

0

8

MTD 780034

Bearing, Ball
(Superseded to TC-780034)

$48.99

$

In Stock, only 1 left!

0

9

MTD 780024

Bearing, Ball
(Superseded to TC-780024)

$48.99

$

Usually ships in 3-12 days

0

10

MTD 788019

R i ng, Snap

$

$

Currently unavailable

11

MTD 788018

Ring, Snap
(Superseded to TC-788018)

$4.49

$

Usually ships in 3-12 days

0

12

MTD 788029

Seal, Oil

$

$

Currently unavailable

13

MTD 788030

Gasket, Cap

$

$

Currently unavailable

14

MTD 792025

Screw, Rd. Hd. Self Tap., 1024 x 1/2

$

$

Currently unavailable

15

MTD 786029

Cap & Seal Ass'y., Retainer

Note: (Incl. No. 16 & 17)

$

$

Currently unavailable

16

MTD 788031

Seal, Oil
(Superseded to TC-788031)

$10.99

$

In Stock, only 1 left!

0

17

MTD 792026

Screw Hex Hd. 1/4-20 x 7/8

$45.99

$

In Stock, only 2 left!

0
