196-940-000 - MTD 48" Snow Blade Attachment (1986) 48" Snow Blade Parts Diagram

48" Snow Blade Attachment

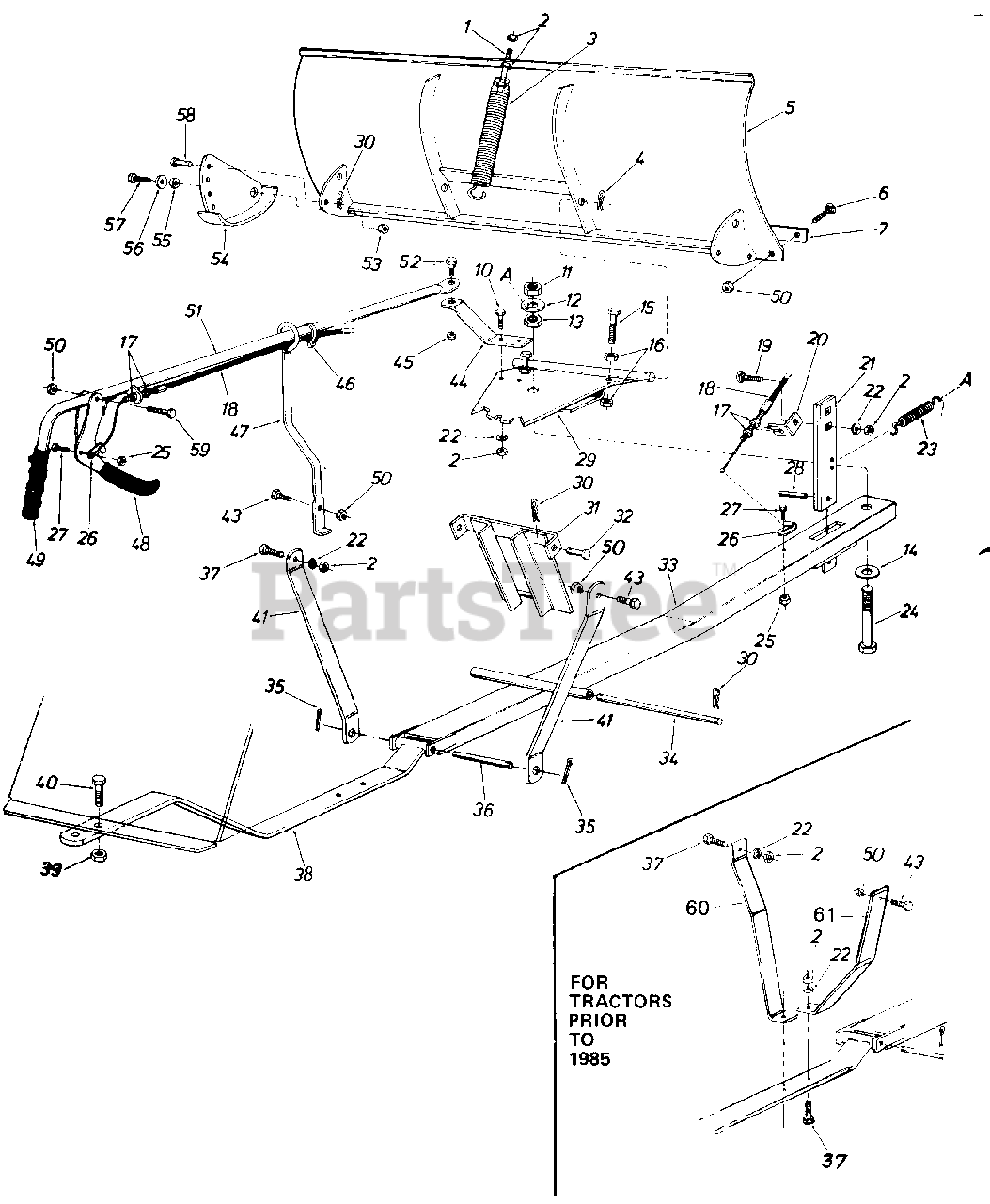

48" Snow Blade Parts Diagram

  • Title

1

MTD 710-0693

Hex Scr. 3/8-16 x 4.50" Lg.*

$14.99

$

In Stock, only 2 left!

0

2

MTD 712-0798

Hex Nut 3/8-1 Thd.*

$4.49

$

In Stock, only 2 left!

0

3

MTD 732-0359

Blade Adjustment Spring

$

$

Not available

4

MTD 714-0117

Hair Pin Cotter 5/32" Dia.

$4.49

$

In Stock, Qty 6

0

5

MTD 05741

48" Blade Ass'y.

$

$

Not available

6

MTD 710-0451

Carriage Bolt 5/16-18 x.75" Lg.*

$4.49

$

In Stock, Qty 20+

0

7

MTD 05754

Wear Plate 48"

$

$

Not available

10

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0205

Hex L.-Nut 3/4-10 Thd.

$

$

Not available

12

MTD 736-0306

Fl.-Wash. .810" I.D. x 2.00" O.D.

Note: (Special)

$

$

Not available

13

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.*

$7.99

$

In Stock, only 1 left!

0

14

MTD 736-0305

Fl.-Wash..810" I.D. x 2.00" O.D.
(Superseded to 736-0306)

$

$

Not available

15

MTD 710-0489

Hex Scr. 1/2-13 x 2.00" Lg.*

$7.49

$

Usually ships in 3-6 days

0

16

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.*

$

$

Not available

18

MTD 746-0366

Control Cable Ass'y.
(Superseded to AF-49808P)

$118.99

$

Usually ships in 3-6 days

0

19

MTD 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 05762

Cable Guide Bracket

$

$

Not available

21

MTD 05665

Angle- Lock Bar
(Superseded to AF-23151)

$38.99

$

Usually ships in 3-6 days

0

22

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

23

MTD 732-0360

Angle Lock Spring
(Superseded to AF-43348)

$36.99

$

In Stock, only 1 left!

0

24

MTD 710-0764

Hex Scr. 3/4-10 x 4.00" Lg.

Note: (Special)

$

$

Not available

25

MTD 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

26

MTD 746-0260

Clevis Lanyard Fitting

$

$

Not available

27

MTD 710-0252

Hex Scr. 1/4-20x .75" Lg.*
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

28

MTD 715-0114

Spring Pin Spirol 1/4" Dia. x 1.00" Lg.

$9.49

$

In Stock, Qty 5

0

29

MTD 05764

Pivot Plate Ass'y.

$

$

Not available

30

MTD 714-0101

Hair Pin Cotter 3/32" Dia.

$4.99

$

In Stock, only 2 left!

0

31

MTD 05751

Guide Bracket Ass'y.

$

$

Not available

32

MTD 711-0310

Clevis Pin 1/2" Dia. x 1.00" Lg.

$10.99

$

Usually ships in 3-6 days

0

33

MTD 05744

Push Bar Ass'y.

$

$

Not available

34

MTD 738-0454

Lift Shaft

$

$

Not available

35

MTD 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

36

MTD 738-0638

Pivot Pin

$

$

Not available

37

MTD 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

38

MTD 05749

Hanger Bracket Ass'y.

$

$

Not available

39

MTD 712-0261

Hex L.-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

40

MTD 710-0367

Hex Scr. 5/8-11 x 1. 50" Lg.*

$

$

Currently unavailable

41

MTD 16367

Hanger Link

$

$

Not available

43

MTD 710-0376

Hex 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, only 4 left!

0

44

MTD 05757

Blade Pivot Bracket

$

$

Not available

45

MTD 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

46

MTD 726-0178

Nylon Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

47

MTD 05761

Tube Guide Ass'y.

$

$

Not available

48

MTD 05639

Clutch Grip Ass'y.

$

$

Not available

49

MTD 07071

Grip - 3/4" Handle

$12.99

$

Usually ships in 3-6 days

0

50

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

51

MTD 05758

Tube Handle Ass'y.

$

$

Not available

52

MTD 738-0234

Shld. Scr. - Special 3/8-16 Thd.

$10.99

$

In Stock, only 1 left!

0

53

MTD 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

54

MTD 05655

Skid Assembly

$

$

Not available

55

MTD 750-0437

Spacer
(Superseded to AF-42846)

$

$

Not available

56

MTD 736-0258

Fl.-Wash..385" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 4 left!

0

57

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 16

0

58

MTD 711-0686

ClevisPin5/16" Dia. x.75" Lg.

$

$

Not available

59

MTD 710-0442

Hex Scr. 5/16-18 x 1.50' Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

60

MTD 05755

Mounting Brkt.-L.H.

$

$

Not available

61

MTD 05756

Mounting Brkt.-R.H.

$

$

Currently unavailable
