196-935-000 - MTD Mower Deck Assembly Only (1986) 44" Side Discharge Deck Parts Diagram

Mower Deck Assembly Only

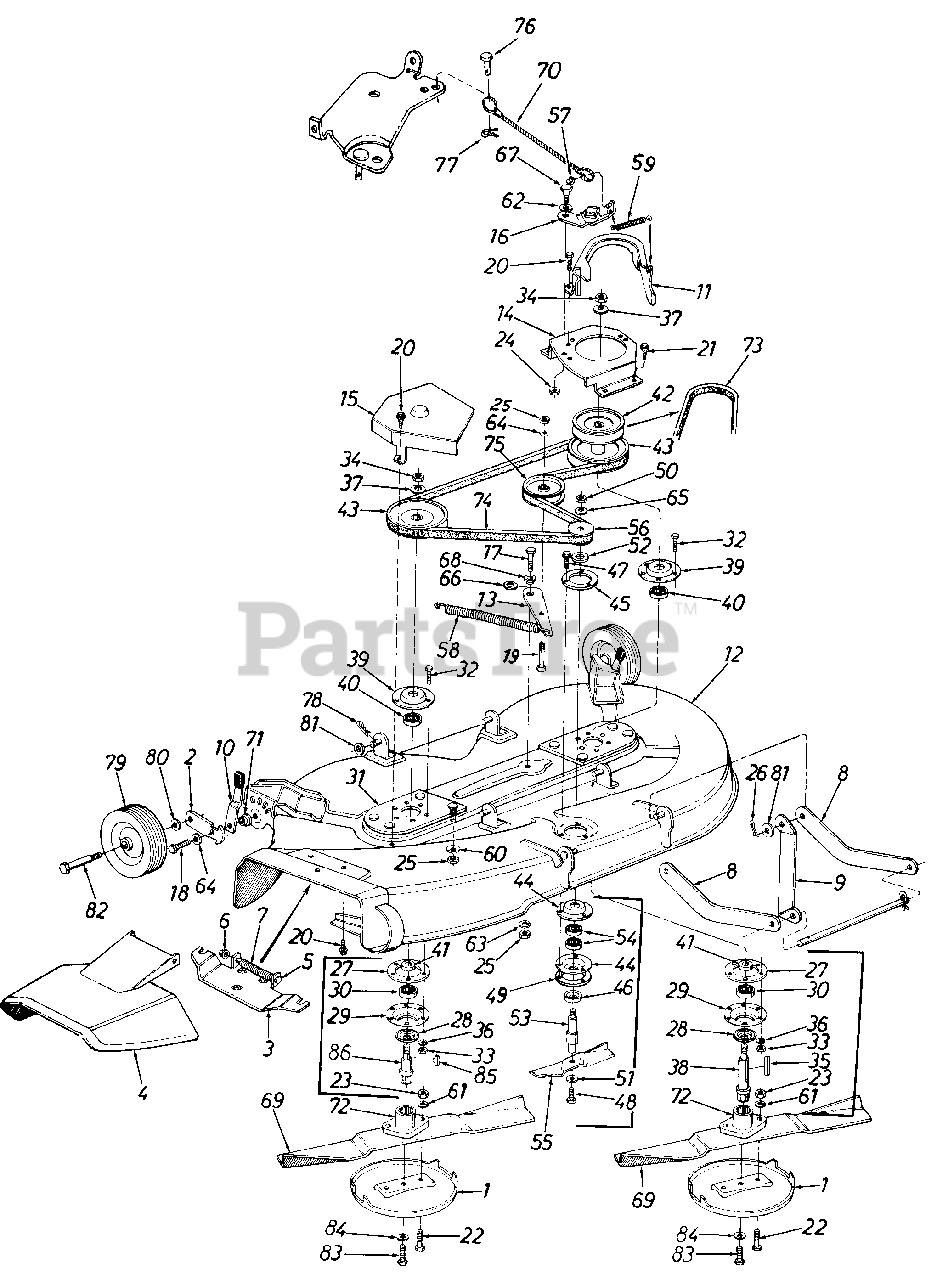

44" Side Discharge Deck Parts Diagram

  • Title

1

MTD 07919

Anti-Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available

2

MTD 10937

Wheel Pivot Bar

$

$

Not available

3

MTD 11396

Adapter

$

$

Not available

4

MTD 11574

Chute Cover Ass'y.

$

$

Currently unavailable

5

MTD 711-0571

Hinge Pin

$

$

Not available

6

MTD 726-0106

Cap Speed Nut 1/4" Rod.

$3.99

$

Usually ships in 3-6 days

0

7

MTD 732-0261

Torsion Spring

$

$

Not available

8

MTD 13866

Deck Stabilizer

Variations

MTD 13866-0637

No Longer Available STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 13867

Diagonal Brace

Variations

MTD 13867-0637

No Longer Available BRACE-DIAG - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 14082

Spring LeverAss'y.

$

$

Not available

11

MTD 14258

Belt Guard

$

$

Not available

12

MTD 16320

44" DeckAssy.

$

$

Currently unavailable

13

MTD 16331

Idler Bracket

$

$

Not available

14

MTD 16333

Pulley Cover - L.H.

$

$

Not available

15

MTD 16334

Pulley Cover - R.H.

Variations

MTD 16334-0637

No Longer Available COVER-PULL - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 16339

Spindle Brake Arm Ass'y.

$

$

Currently unavailable

17

MTD 710-0152

Hex Bolt 3/8-24 x 1.00"*
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

18

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

19

MTD 710-0459

Hex Bolt 3/8-24 x 1.50"*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

20

MTD 710-0599

Hex Wash. S-Tapp Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0726

Hex Wash. Hd. Tapp Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0672

Hex Bolt 5/16-24x 1.25" (Grade 5)

$4.49

$

In Stock, Qty 18

0

23

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

26

MTD 714-0111

Cotter Pin 3/32 Dia. x 1.00" Lg.*

$4.99

$

In Stock, Qty 13

0

27

MTD 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

28

MTD 13703

Bearing Shield

$

$

Not available

29

MTD 15296

Open Brg. Housing 1.85 I.D.
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

30

MTD 741-0919

Ball Brg. .787 I.D. x 1.85 O.D. x.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

31

MTD 16349

Spindle Mounting Plate Ass'y.

$

$

Not available

32

MTD 710-0888

Hex Bolt 5/16-24 x 1.0"Lg.

Note: (Special)

$4.49

$

In Stock, Qty 5

0

33

MTD 712-0123

Hex Nut- 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

34

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

35

MTD 714-0168

Square Key 3/16 x 2.25"Lg.

$

$

Not available

36

MTD 736-0119

L.-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 736-0317

Bell. Wash. .630 I.D. x 1.25 x .090

$7.99

$

In Stock, Qty 20+

0

38

MTD 738-0632

44" Deck Blade Spindle

$

$

Not available

39

MTD 08253

Bearing Housing 1.85 I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

40

MTD 741-0919

Ball. Brg. .787 I.D. x 1.85 O.D. x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

MTD 750-0456

Spacer 1.0 O.D. x .790 I.D. .350 Lg.

$4.49

$

In Stock, Qty 20+

0

42

MTD 756-0329

5/8 "V" Pulley .79 I.D. x 5.75 O.D.

$96.99

$

In Stock, only 1 left!

0

43

MTD 756-0470

"V"- Pulley .79 I.D. x 6.50 O.D.

$

$

Not available

44

MTD 15319

1-3/8" I.D. - Bearing Housing
(Superseded to 15319B)

$10.99

$

In Stock, Qty 5

0

45

MTD 16348

Reinforcement Plate
(Superseded to 16348B)

$9.49

$

Usually ships in 3-6 days

0

46

MTD 16400

Bearing Shield

$

$

Not available

47

MTD 710-0947

Hex "B" Tap Scr. . 250 x . 750 Lg.
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0877

Hex Cl.-Scr. 3/8-24 x .88 Lg.
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

49

MTD 16348

Reinforcement Plate
(Superseded to 16348B)

$9.49

$

Usually ships in 3-6 days

0

50

MTD 712-0922

Hex Jam Nut 1/2-2 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

51

MTD 736-0105

Bell.-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0162

Fl.-Wash. .635 x 1.04 O.D. x . 120"

$4.49

$

In Stock, Qty 14

0

53

MTD 738-0627

6.5" Blade Spindle
(Superseded to 938-0627)

$

$

Not available

54

MTD 741-0155

Ball Brg. .62 I.D. x 1.30" O.D. x .44"
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

55

MTD 742-0252

6.50" Blade

$

$

Not available

56

MTD 756-0468

1/2" V-Pulley Half .625 I.D. x 2.25" O.D.

$9.49

$

Usually ships in 3-6 days

0

57

MTD 726-0106

Cap Speed Nut 1/4" Rod.

$3.99

$

Usually ships in 3-6 days

0

58

MTD 732-0121

Extension Spring .73 O.D. x 4.31 Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

59

MTD 732-0465

Extension Spring .38 x 2.75" Lg

$

$

Currently unavailable

60

MTD 736-0105

Bell.-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

MTD 736-0141

Spring Wash. .445 I.D. x .75 O.D. x .017
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

63

UNKNOWN

$

$

Not available

64

MTD 736-0219

Bell.-Wash. .400 I.D. x 1.13 O.D. x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

65

MTD 736-0253

Bell.-Wash. .505 I.D. x 1.00 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

66

MTD 736-0174

Spring Wash. .650 I.D. x .875 O.D. x .015 Thk.

$6.99

$

In Stock, only 2 left!

0

67

MTD 738-0140

Shld. Bolt .437 Dia. x .180

$5.99

$

In Stock, Qty 15

0

68

MTD 738-0347

Shld. Spacer.625 I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

69

MTD 742-0295

Mower Blade 21.88

$

$

Not available

70

MTD 746-0237

Brake Cable Ass'y.
(Superseded to 946-0237)

$

$

Not available

71

MTD 748-0279

Shld. Spacer

$

$

Not available

72

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

73

MTD 754-0230

"V"-Belt 1/2 x 56" Lg.
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

74

MTD 754-0293

"V"-Belt 1/2 x 74"Lg.
(Superseded to 954-0293)

Note: (Drive Belt)

$32.99

$

Usually ships in 3-6 days

0

75

MTD 756-0365

Fl.-Idler w/Flanges 3.50 O.D.
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

76

MTD 711-0701

Clevis Pin 1/4 Dia. x .53 Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

77

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

78

MTD 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

79

MTD 734-0974

Deck Wheel 6.0 x 1.38

$20.99

$

Usually ships in 3-6 days

0

80

MTD 736-0105

Bell.-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0192

Fl.-Wash. .531 I.D. x .93 O.D. x .090

$4.49

$

In Stock, Qty 8

0

82

MTD 738-0455

Shoulder Bolt 3/8-16 x 1.41
(Superseded to 938-0455)

$

$

Not available

83

MTD 710-0877

Hex Bolt 3/8-24 x .88" Lg.
(Superseded to 710-0696)

Note: (Special)

$6.99

$

In Stock, only 2 left!

0

84

MTD 736-0169

L.-Washer 3/8 I.D.*

$3.99

$

In Stock, Qty 20+

0

85

MTD 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 15

0

86

MTD 738-0633

44" Deck Blade Spindle
(Superseded to 938-0633)

$

$

Not available
