196-796-000 - MTD Mower Deck Assembly Only (1986) 30" Side Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

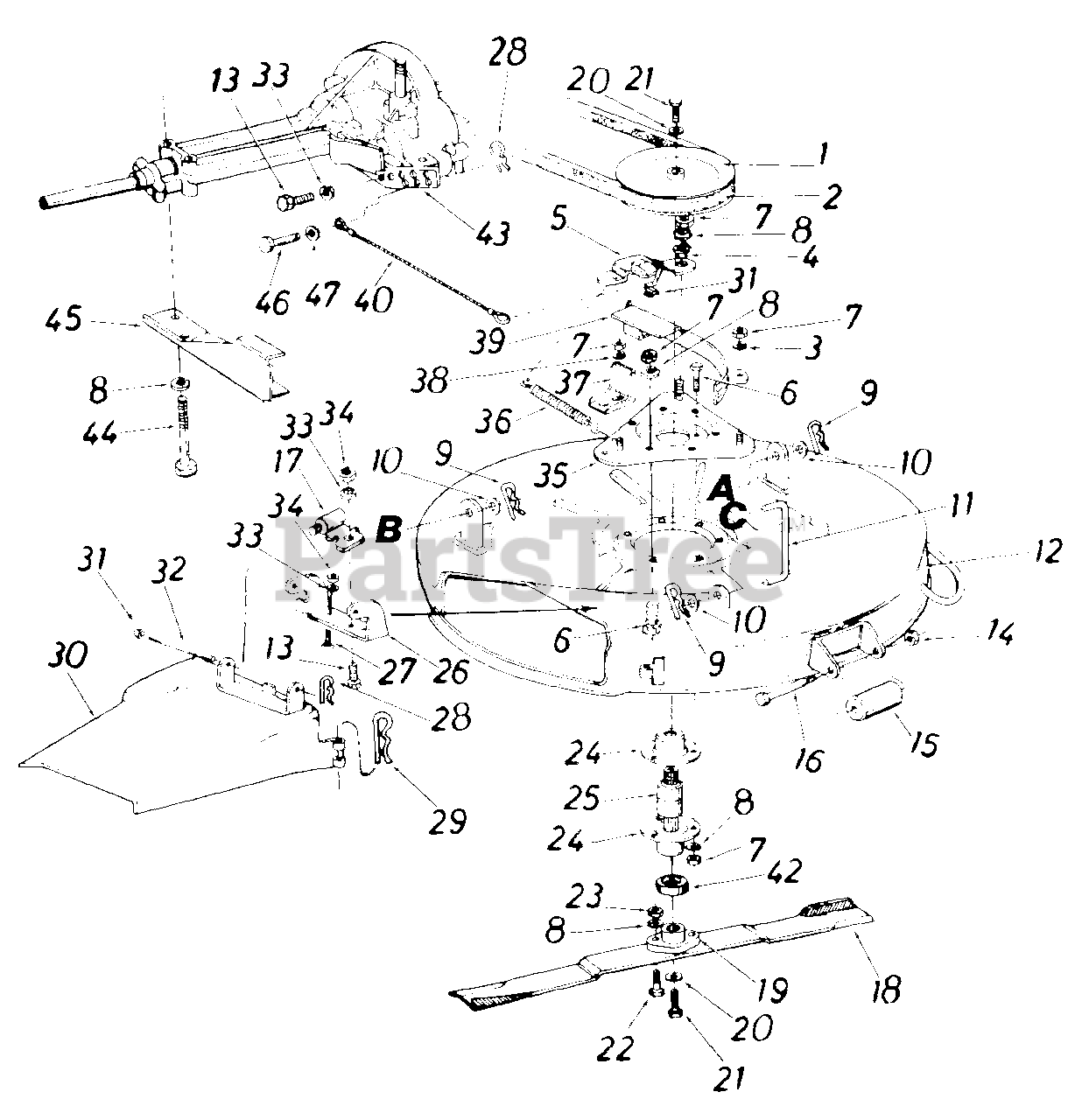

30" Side Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 756-0291

Deck Pulley 7.00" O.D.

$

$

Not available

2

MTD 754-0264

"V"-Belt 1/2" x 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

3

MTD 736-0219

Belleville Washer
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

4

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

5

MTD 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

6

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

11

MTD 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

12

MTD 15620

30" Deck Ass'y.

$

$

Currently unavailable

13

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

15

MTD 731-0397

Skid Roller

$

$

Currently unavailable

16

MTD 738-0114

Shoulder Bolt .498" Dia. x 4.75

$

$

Not available

17

MTD 725-0269

Safety Switch
(Superseded to 925-0269)

$

$

Not available

18

MTD 742-0280

30" Blade

$

$

Not available

19

MTD 748-0235

Blade Adapter

$

$

Not available

20

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

21

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

22

MTD 710-0888

Hex Bolt 5/16-24 x 1.00"*

$4.49

$

In Stock, Qty 5

0

23

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

MTD 12724

Housing Bearing Spindle

$

$

Not available

25

MTD 741-0211

Blade Spindle

$

$

Not available

26

MTD 15226

Deck Hinge Brkt.

$

$

Not available

27

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

28

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-0155

Cotter Pin
(Superseded to 714-0174)

$

$

Not available

30

MTD 15567

Chute Deflector Ass'y.

$

$

Not available

31

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

32

MTD 747-0303

Hinge Pin

$

$

Not available

33

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

34

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

35

MTD 15647

Spindle Mtg. Bracket Ass'y.

$

$

Currently unavailable

36

MTD 732-0157

Extension Spring .38" O.D. x 3.25" Lg.

$14.99

$

Usually ships in 3-6 days

0

37

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

38

MTD 736-0242

Belleville Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

39

MTD 15627

Belt Guard

$

$

Not available

40

MTD 727-0296

Brake Cable Ass'y.

$

$

Not available

42

MTD 12944

Bearing Guard

$

$

Not available

43

MTD 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

44

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

45

MTD 15625

Lower Outside Belt Guard

$

$

Not available

46

MTD 711-0701

Clevis Pin 1/4" x 1/2"
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

47

MTD 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

MTD 15640

30" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available
